Wiring Device-Kellems DR15WHITR
Send Print
  1. pin-int

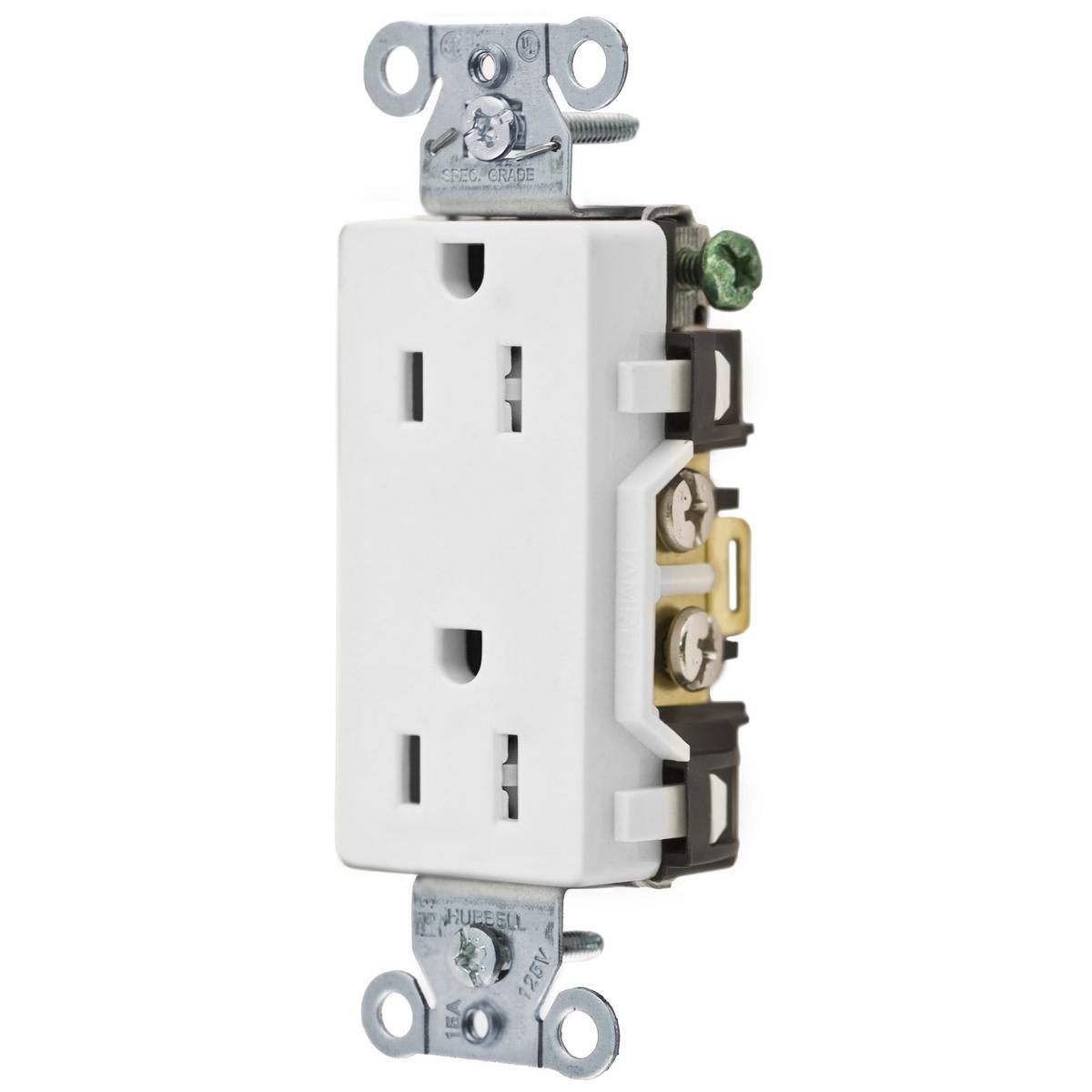

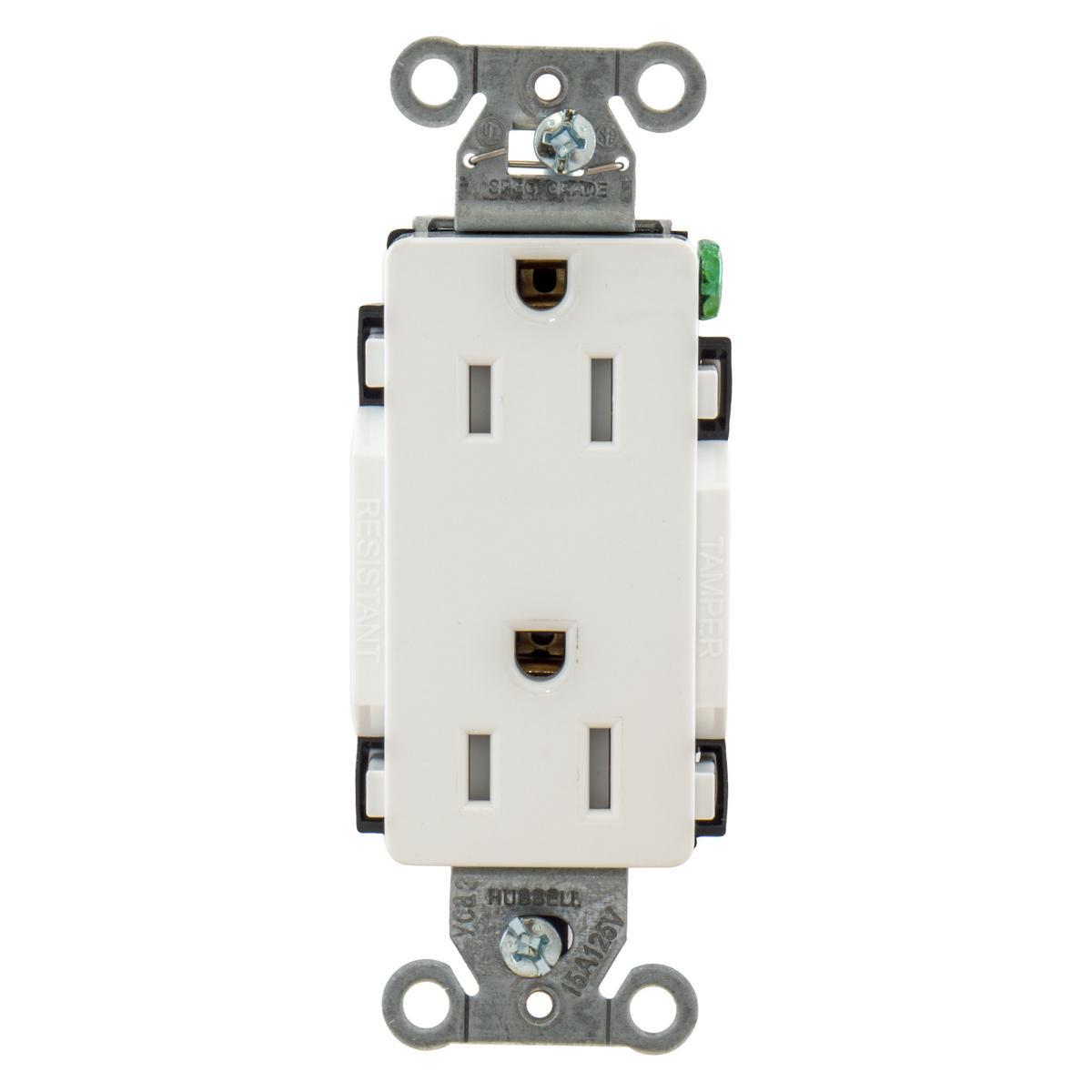

Wiring Device-Kellems DR15WHITR

Wiring Device-Kellems Style Line® DR15WHITR 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

  • Manufacturer Name: Hubbell
  • MPN: DR15WHITR
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585144375
  • FEPN: DR15WHITR HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems Style Line® Straight Blade Receptacle, 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, White, 1.56 x 1.14 x 3.28 in

Dimensions       :      1.56 x 1.14 x 3.28 in
Grade       :      Commercial/Specification
Horsepower       :      1/2 hp
Material       :      Nylon
NEMA Rating       :      5-15R
Temperature Rating       :      -40 to 75 deg C
Terminal Type       :      Side Wired
Type       :      1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount
Voltage Rating       :      125 VAC
Amperage Rating       :      15 A
Number of Poles       :      2
Number of Wires       :      3
Color       :      White
  • Aesthetic Style Line® decorator design
  • Tamper-resistant shutter complies with national electrical code requirements
  • Triple wipe contact
  • Screw mounting
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7641503cd318db39a93cdc0ac8ddca3b2445535ba752927a9569a2c5c906c336.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b5983c72aff6af9cdcbb2c23f7865e8884cbb1299506b94573ef57933b763031.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_BR15AL_Catalog.pdf
  • pdfService Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_BR15AL_User_Manual.pdf
  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_DR15ALTR_Full_Engineering_Drawing.pdf
  • linkVIDEO LINK https://youtu.be/6vsZAR79ASo
