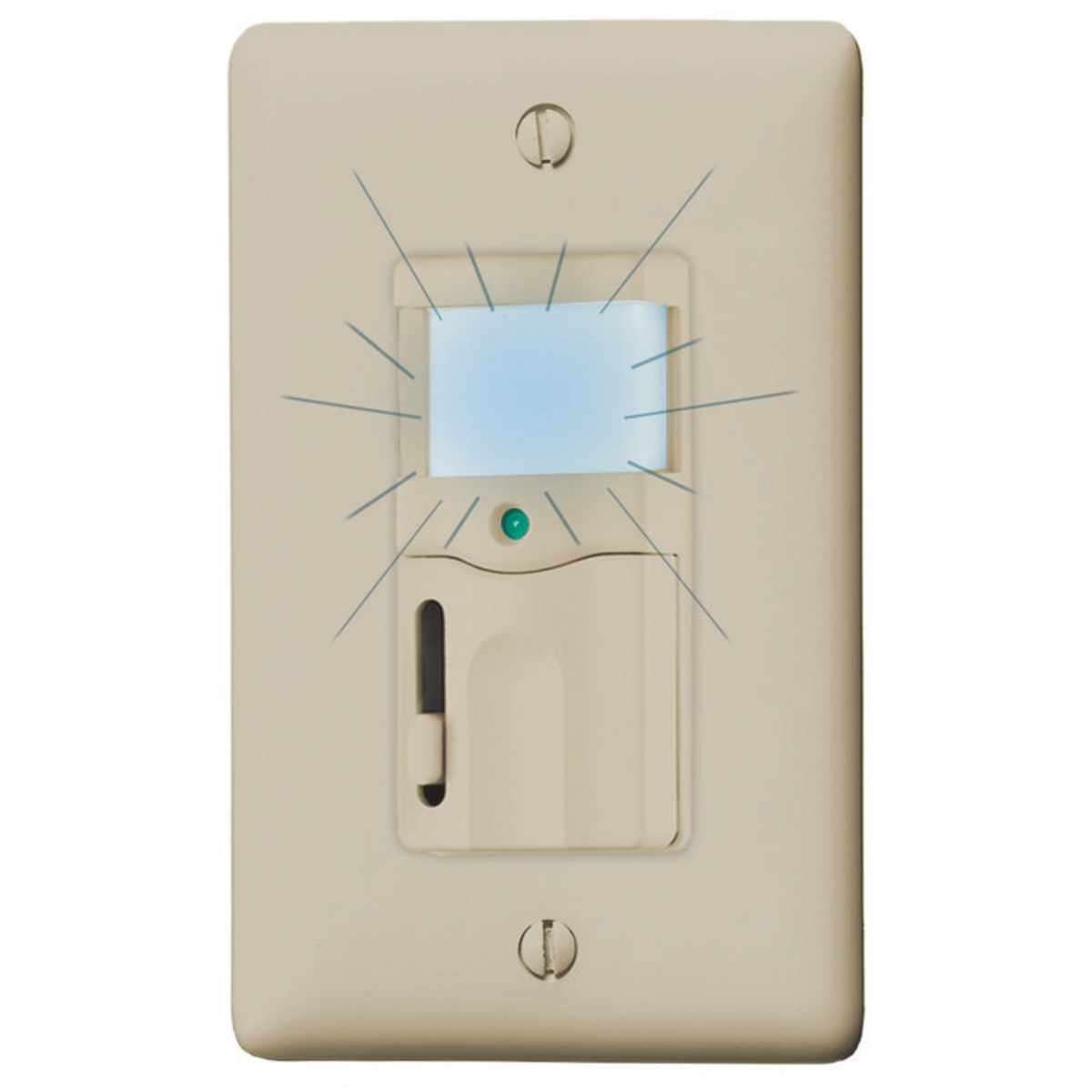

The Lutron® Maestro® Occupancy sensing switch combines a Maestro® switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.

Lutron® Occupancy Sensing Switch, Series: MS-OPS5M, For Use With: Incandescent/Halogen/MLV/ELV/CFL/LED/Magnetic Fluorescent/Electronic Fluorescent, 5 A at 120/277 VAC, 1 Pole, Ivory, 4-11/16 in H x 2-15/16 in W x 1-1/8 in D

• Occupancy version can be set to auto-on/auto-off or manual on/auto-off
• Vacancy version available to meet CA Title 24 requirements
• Smart ambient light detection
• Adaptive switching algorithm for extended relay life
• 32 to 104 deg F operating temperature, 0 - 90 Percent humidity, non-condensing
• Compatible with one existing 3-way switch
• Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
• 180 deg sensor field of view (900 sq ft major motion and 400 sq ft minor motion coverage)
• Rated to work with up to 5A lighting, 3A Fan or 3A combined Light/Fan, 120V
• Single Pole or Multi-Location with Lutron Maestro Companion Switch (MA-AS/MSC-AS), Compatible with one existing 3-way switch
• 180 deg sensor field of view (900 sq ft major motion and 400 sq ft minor motion coverage), Tamper-resistant lens

• VIDEO LINK https://www.youtube.com/watch?v=kSlb_Ql9LUc&list=PL718BCF95CD831916
