Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

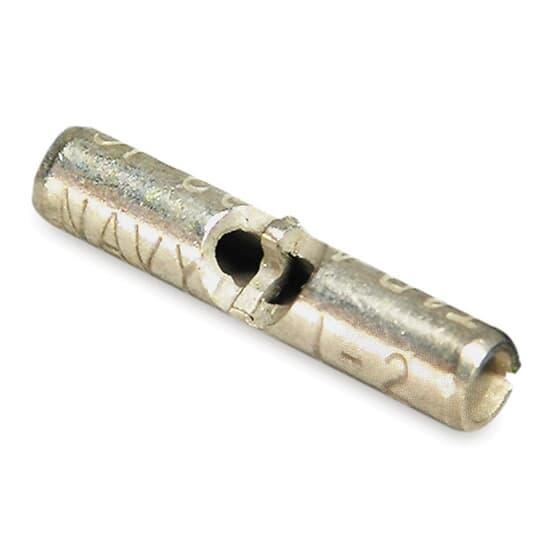

Sta-Kon® Butt Splice Connector, Non-Insulated, 6 to 5 AWG Conductor, 1.12 in Length, 600 V AC, 150 deg C, Copper, Metallic, Electro-TiN Plated, 0.37 in W Dimensions
| Dimensions | : | 0.37 in W |
| Finish | : | Electro-TiN Plated |
| Temperature Rating | : | 150 deg C |
| Type | : | Non-Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 6 to 5 AWG |
| Length | : | 1.12 in |
| Material | : | Copper |
| Color | : | Metallic |
- Wires are butted together and crimped at each end of the splice
- Color coded according to wire size
Specification Sheet
