The Radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.

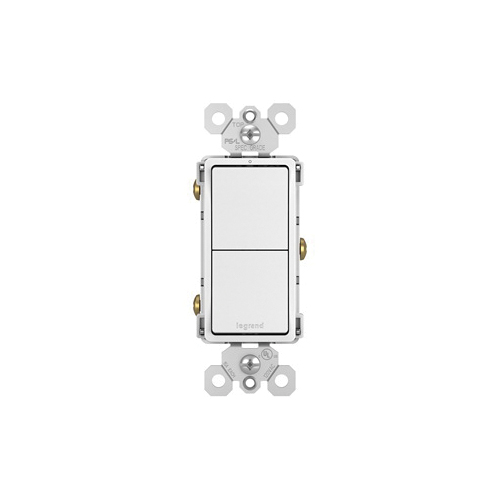

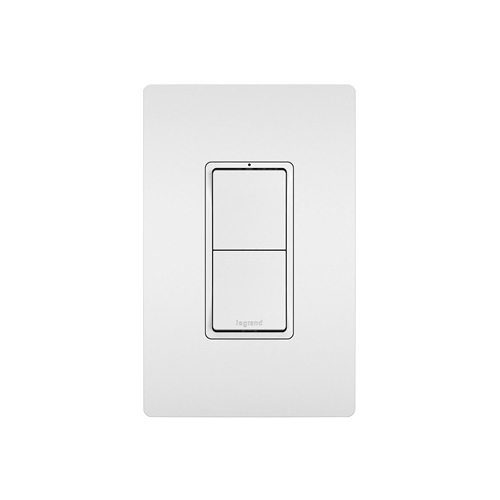

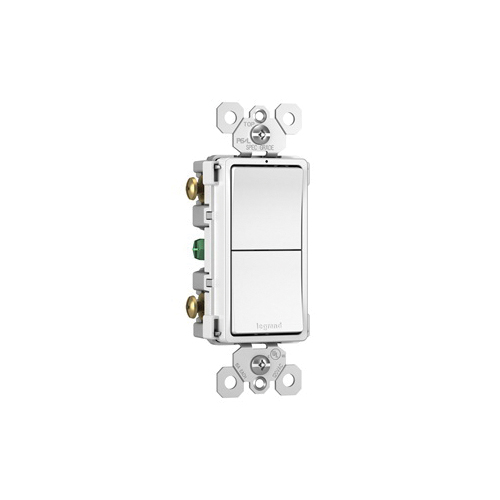

Pass & Seymour® Radiant® Combination Switch, 15 A, 120 VAC Electrical Rating, 1 Pole, Rocker Switch Actuator, Surface Mounting, 1.29 in W x 1.43 in D x 3.81 in H Size, 50000 Cycles Operating Cycles, Environmental Conditions: -40 to 115 deg C Operating Temperature, Thermoplastic, White
| Actuator | : | Rocker Switch |
| Color | : | White |
| Environmental Conditions | : | -40 to 115 deg C Operating Temperature |
| Material | : | Thermoplastic |
| Mounting | : | Surface |
| Operating Cycles | : | 50000 Cycles |
| Size | : | 1.29 in W x 1.43 in D x 3.81 in H |
| Electrical Ratings | : | 15 A, 120 VAC |
| Number of Poles | : | 1 |
- Patented snap-in light module sold separately transforms a combination switch into an illuminated switch in seconds
- Easy-to use oversized main switch for primary load
- Full wraparound metal strap, commercial grade with lock-in tabs
- All screws are tri-drive
- External screw pressure plate back and side wired, accepts 12 to 14 AWG
- Largest breadth of 15 A offering
- Offers installation flexibility with space-saving style, as part of the extensive offering from the radiant Collection
- Features durable, high-impact resistant thermoplastic construction
- Designed to install easily with a narrower back body and captivated mounting screws
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
