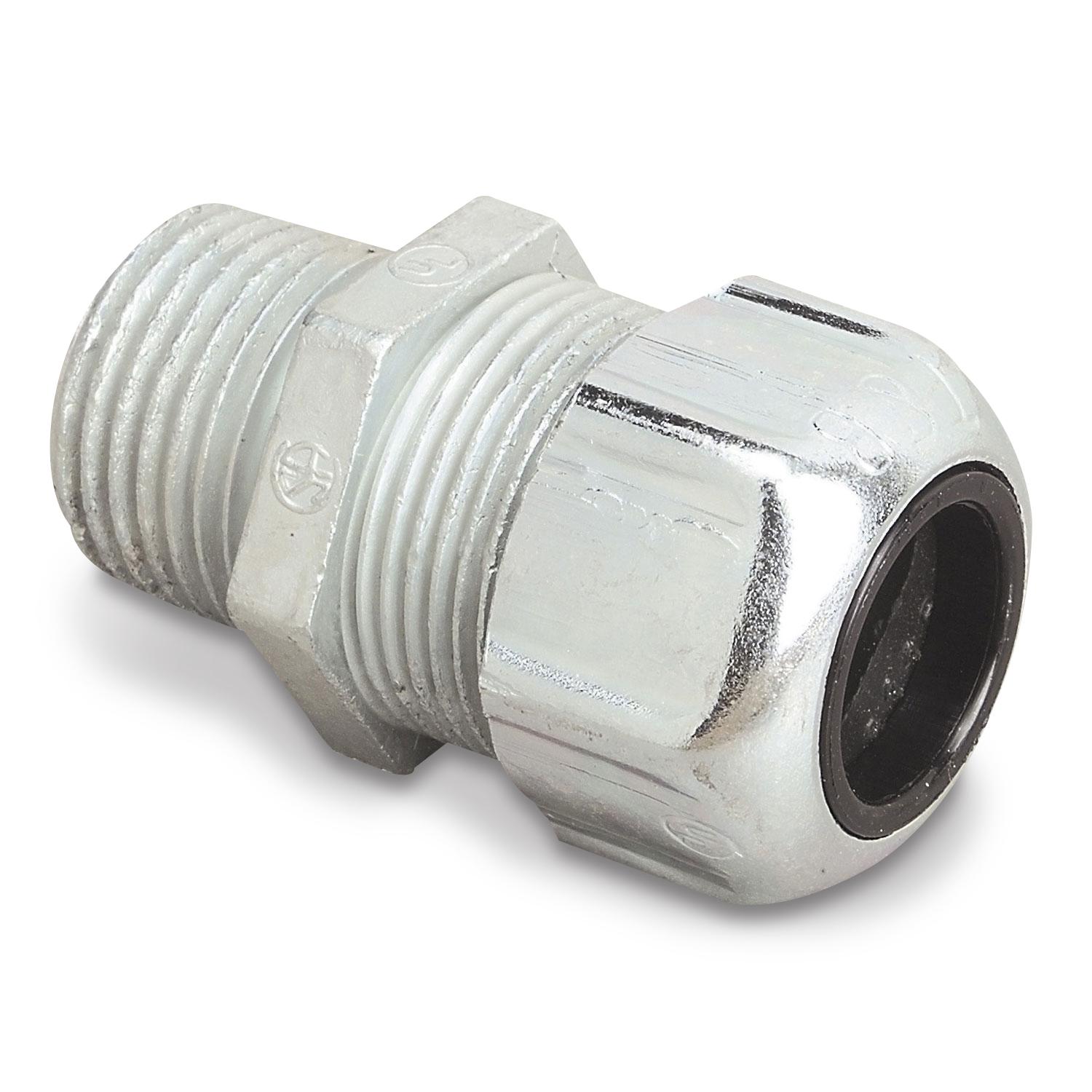

T&B® Service Entrance Cable Connector, Underground Feeder, 3/4 in Knockout, 0.24 x 0.685 in Clamp Opening, For Use With: Underground Liquidtight Feeder Cable Fitting, 3/4 in Hub, 9/16 in Thread, Die Cast Zinc, Metallic, 1-9/16 in L x 1-7/32 in W
| Dimensions | : | 1-9/16 in L x 1-7/32 in W |
| Finish | : | Metallic |
| Specifications | : | 3/4 in Hub, 9/16 in Thread |
| Suitable For Use With | : | Underground Liquidtight Feeder Cable Fitting |
| Type | : | Underground Feeder |
| Knockout Size | : | 3/4 in |
| Clamp Opening | : | 0.24 x 0.685 in |
| Material | : | Die Cast Zinc |
- Grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
- Oil and water resistant neoprene bushing is especially designed for sealing around underground feeder cable
- Stainless steel retaining ring provides a bearing surface for the gland nut and eliminates cable twist
- Ribbed gland nut is strong and easily tightened with a wrench to make a connection of high strength

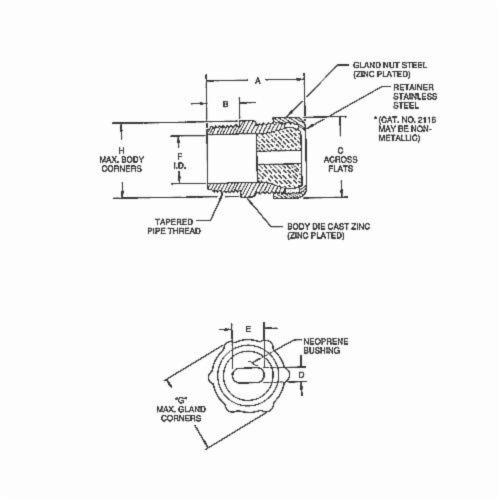

- 0.06 in min to 0.24 in max and 0.5 in min to 0.685 in max opening
- 1-3/8 in maximum gland corners
- 1-3/8 in maximum body corners
