The R9 series non-fusible 30 to 100 A compact range ensures making or breaking on load and safety isolation for low voltage electrical circuits, particularly for machine control circuits up to 600 VAC.

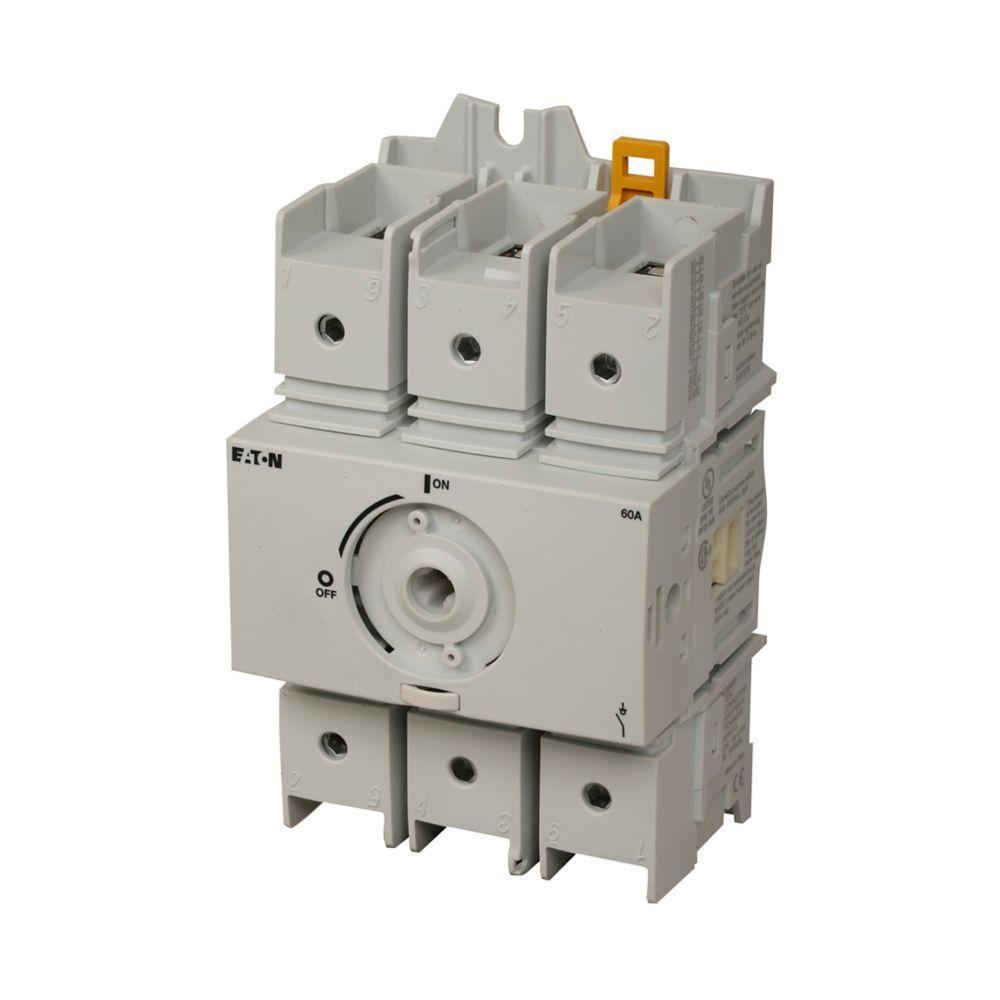

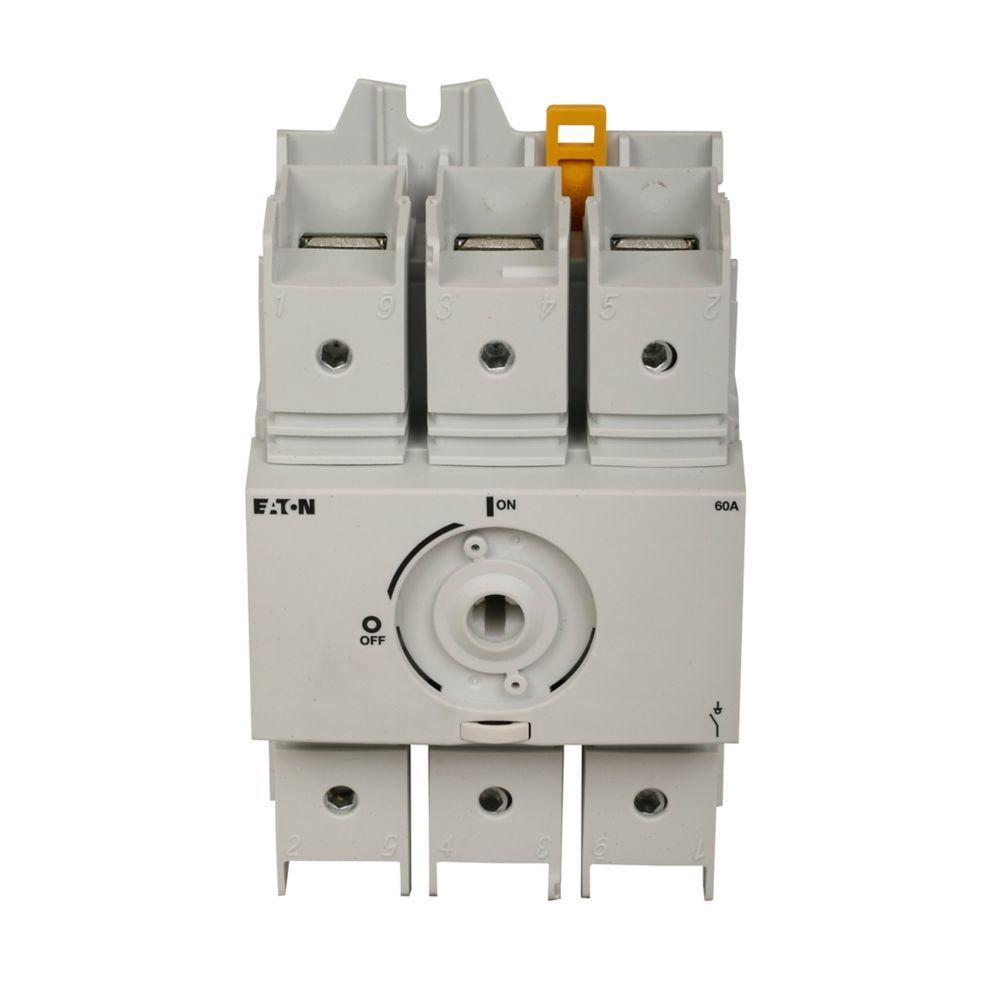

EATON Rotary Disconnect Switch, C-Frame Non-Fusible, Series: R9 Series, 600 VAC, 60 A, 50 hp, 52 hp, 3 ph, 3 Pole, 2 Wires, 100 kA Short Circuit, Rotary Handle Actuator, DIN Rail Mount, Line/Load Terminal, 2.52 in L x 3.07 in W x 5.62 in H
| Actuator Type | : | Rotary Handle |
| Dimensions | : | 2.52 in L x 3.07 in W x 5.62 in H |
| Mounting Type | : | DIN Rail |
| Number of Wires | : | 2 |
| Phase | : | 3 |
| Series | : | R9 Series |
| Short Circuit Current Rating | : | 100 kA |
| Terminal Type | : | Line/Load |
| Type | : | C-Frame Non-Fusible |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 60 A |
| Horsepower | : | 50 hp, 52 hp |
| Number of Poles | : | 3 |
- Direct or external operation handle (padlockable in on position)
- Double breaking per phase
