The Ranger® series steel liquidtight connector takes twice the cable range of most ordinary strain relief connectors. T&B® ranger connectors enable you to reduce your inventory and save time with one connector that can do the work of two.

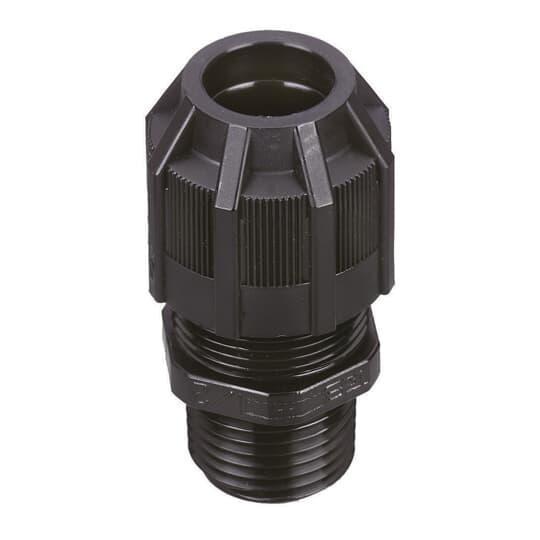

T&B® Cord Connector, Liquidtight Strain Relief, Series: Ranger®, 3/4 in, Cable Openings: 1/2 to 3/4 in, S/SO Cable, NPT/Straight, Nylon 6.6/Polyamide, Black, -34 to 105 deg C, 1-13/32 in Dia x 2-3/16 in L
| Cable Type | : | S/SO |
| Color | : | Black |
| Connection Type | : | NPT/Straight |
| Dimensions | : | 1-13/32 in Dia x 2-3/16 in L |
| Series | : | Ranger® |
| Temperature Rating | : | -34 to 105 deg C |
| Type | : | Liquidtight Strain Relief |
| Trade Size | : | 3/4 in |
| Cable Openings | : | 1/2 to 3/4 in |
| Material | : | Nylon 6.6/Polyamide |
- Extended range with superior strain relief
- Reduced overall size, fits into tighter spaces
- Gland nut designed to restrict cable bending
- Suitable for ordinary, wet or dry locations
- 0.63 in L thread
- 0.79 in dia throat
- IP65 rating, UV-resistant
- Non-metallic means corrosion-resistance
- Nylon gland and grip, oil-resistant elastomer bushing
