Panduit® LCD300-12-X
Send Print
  1. pin-int

Panduit® LCD300-12-X

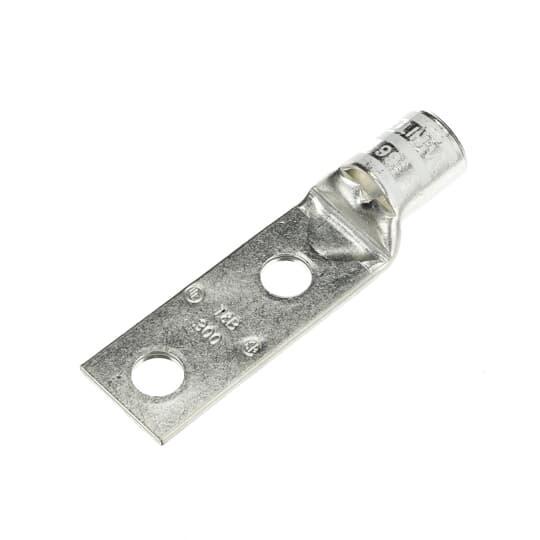

Panduit® Pan-Lug™ LCD300-12-X 2-Hole Compression Lug, 300 kcmil Stranded Copper Conductor, Die Code: P66, 42.767 in Stud, Copper

  • Manufacturer Name: Panduit
  • MPN: LCD300-12-X
  • Brand Name: Panduit®
  • UPC: 074983901005
  • FEPN: LCD300-12-X PC
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Panduit® Pan-Lug™ Compression Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 300 kcmil Conductor, Die Code: P66, 35 kV, 42.767 in Stud, Standard/Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 4.92 in Overall Length, Standard/Inspection Window Barrel, 0.65 in ID x 0.81 in OD x 1.44 in L Barrel, Specifications: 1-1/2 in L Wire Strip, 1-3/4 in Stud Hole Spacing, Tin Plated Finish, 90 deg C, 1-1/2 in Mounting Hole, Copper, White

Barrel Size       :      0.65 in ID x 0.81 in OD x 1.44 in L
Barrel Type       :      Standard/Inspection Window
Color       :      White
Mounting Hole Size       :      1-1/2 in
Overall Length       :      4.92 in
Series       :      LCD
Specifications       :      1-1/2 in L Wire Strip, 1-3/4 in Stud Hole Spacing, Tin Plated Finish
Temperature Rating       :      90 deg C
Tongue Size       :      1.19 in W x 0.16 in THK
Tongue Type       :      Standard/Straight
Type       :      2-Hole
Voltage Rating       :      35 kV
Conductor Size       :      300 kcmil
Conductor Type       :      Stranded Copper
Die Code       :      P66
Stud Size       :      42.767 in
Material       :      Copper
  • Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin-plated to inhibit corrosion
  • For use with stranded copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCC8-10AW-L_Technical_Bulletin.pdf
  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCD300-12-X_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_LCD4-10A-L_Installation_Manual.pdf
  • videoVIDEO LINK https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4
