Wiring Device-Kellems SETL3

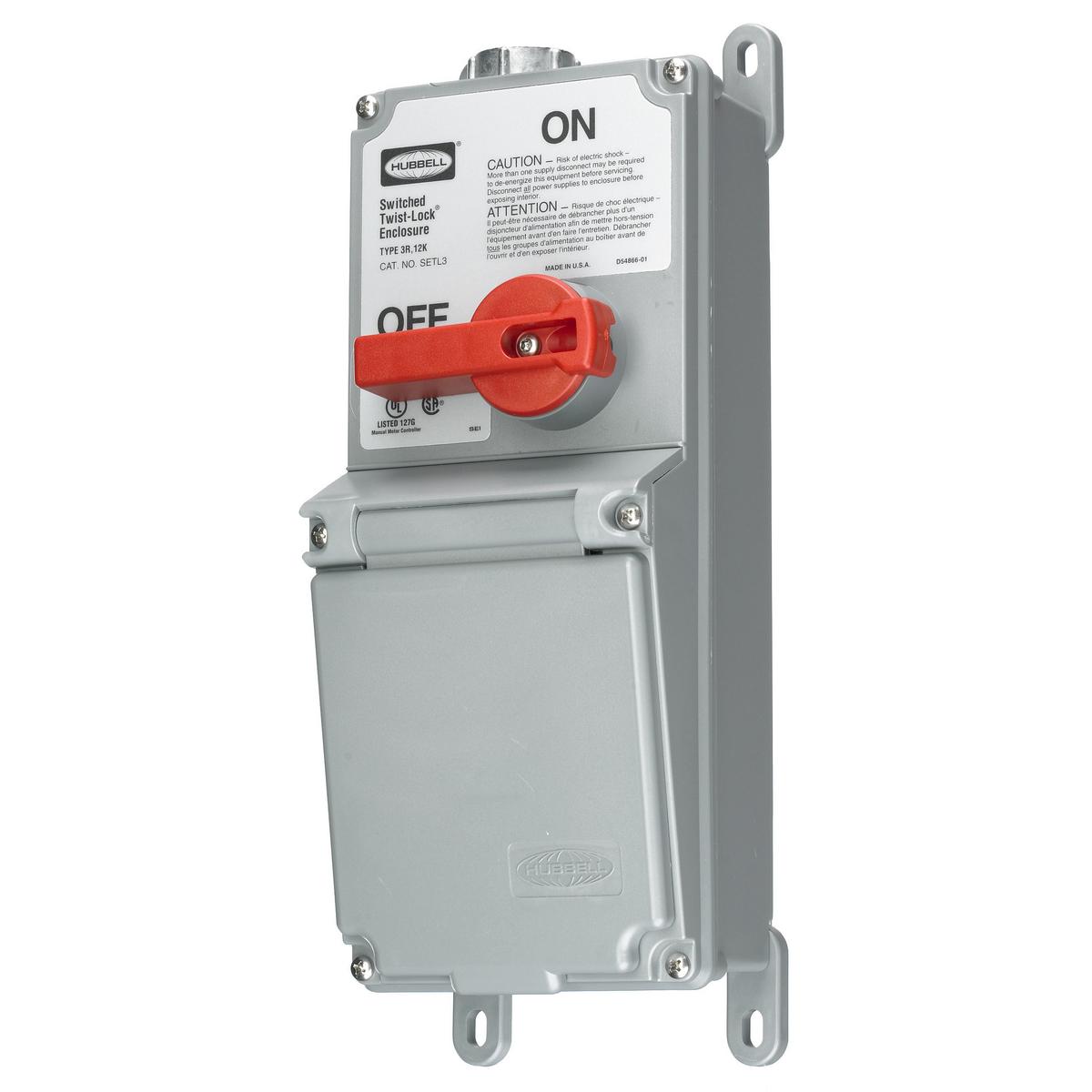

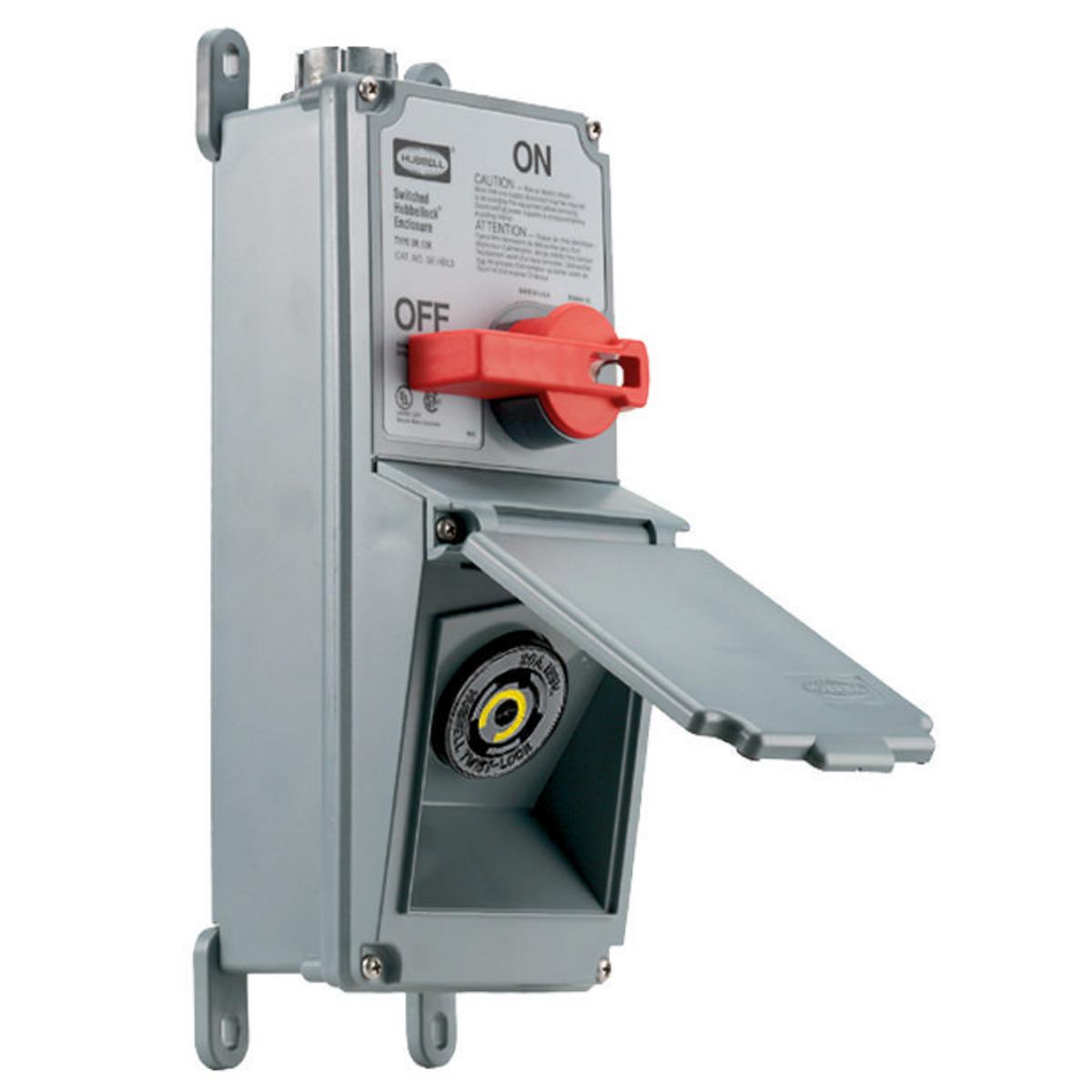

Wiring Device-Kellems SETL3 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount Switched Enclosure, 600 VAC, 30 A, 3 Poles, 5 Wires, Gray
- Manufacturer Name: Hubbell
- MPN: SETL3
- Brand Name: Wiring Device-Kellems
- UPC: 783585006055
- FEPN: SETL3 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, SETL3, Switched Enclosure, 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount, 600 VAC, 30 A, 15 hp, 60 Hz Frequency, 3 Pole, 5 Wires, 4X NEMA Rating, -40 to 75 deg C, Screw Terminal, Composite, Gray, 11.38 x 4.88 x 4.5 in Dimensions
| Dimensions | : | 11.38 x 4.88 x 4.5 in |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 15 hp |
| Material | : | Composite |
| NEMA Rating | : | 4X |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 5 |
| Color | : | Gray |
- Zinc 3/4 in watertight conduit hub
- Neoprene enclosure gasket
- 600 Vrms maximum working voltage
- Withstands 3000 VAC minimum dielectric voltage
- Lockable handle meets OSHA lockout requirements
- 6000 cycles operating
- Type 3R rainproof or 12K dust-tight
- Molded Valox® resists abuse, corrosion and enhances safety
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent temperature rise
- Terminals identified in accordance with UL 498 (X, Y, Z, white, green) terminal identification
- PBT base, top, handle and shaft
- Accommodates 20- or 30 A Twist-Lock Receptacle
