EATON MBE88B200BTS

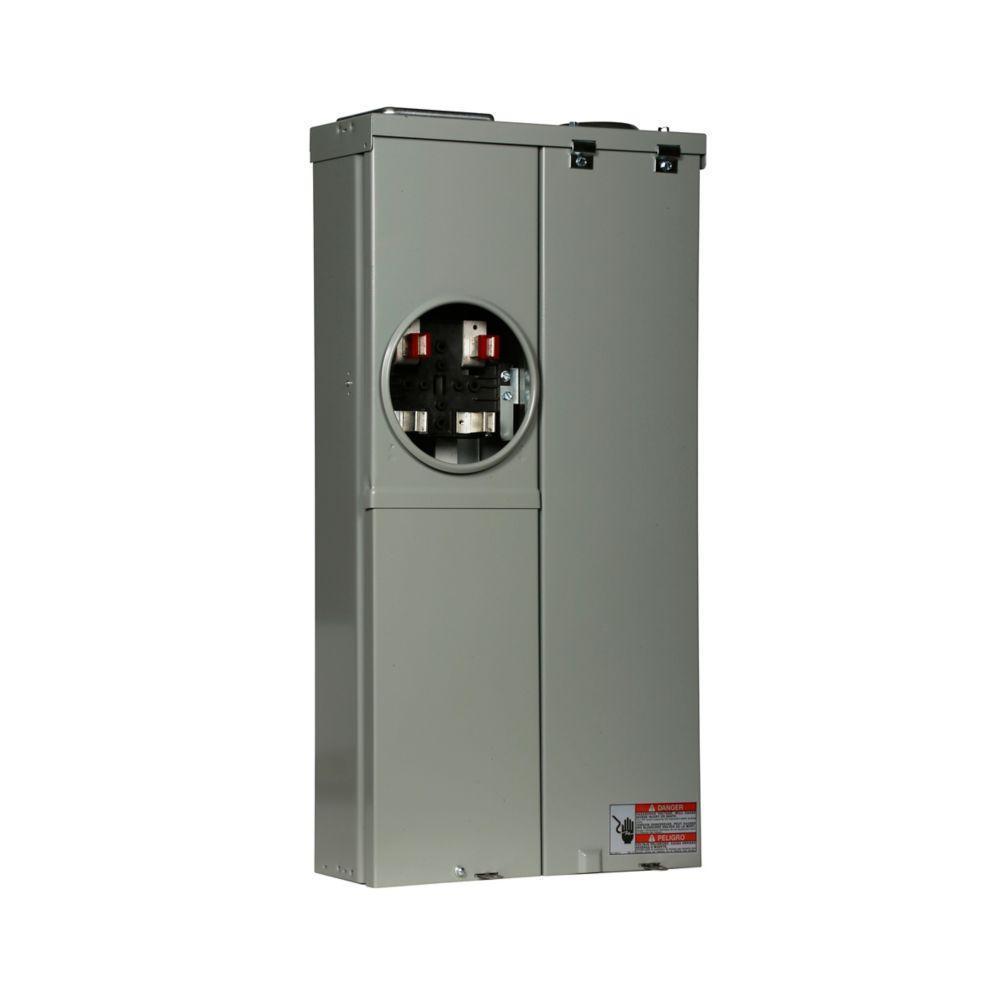

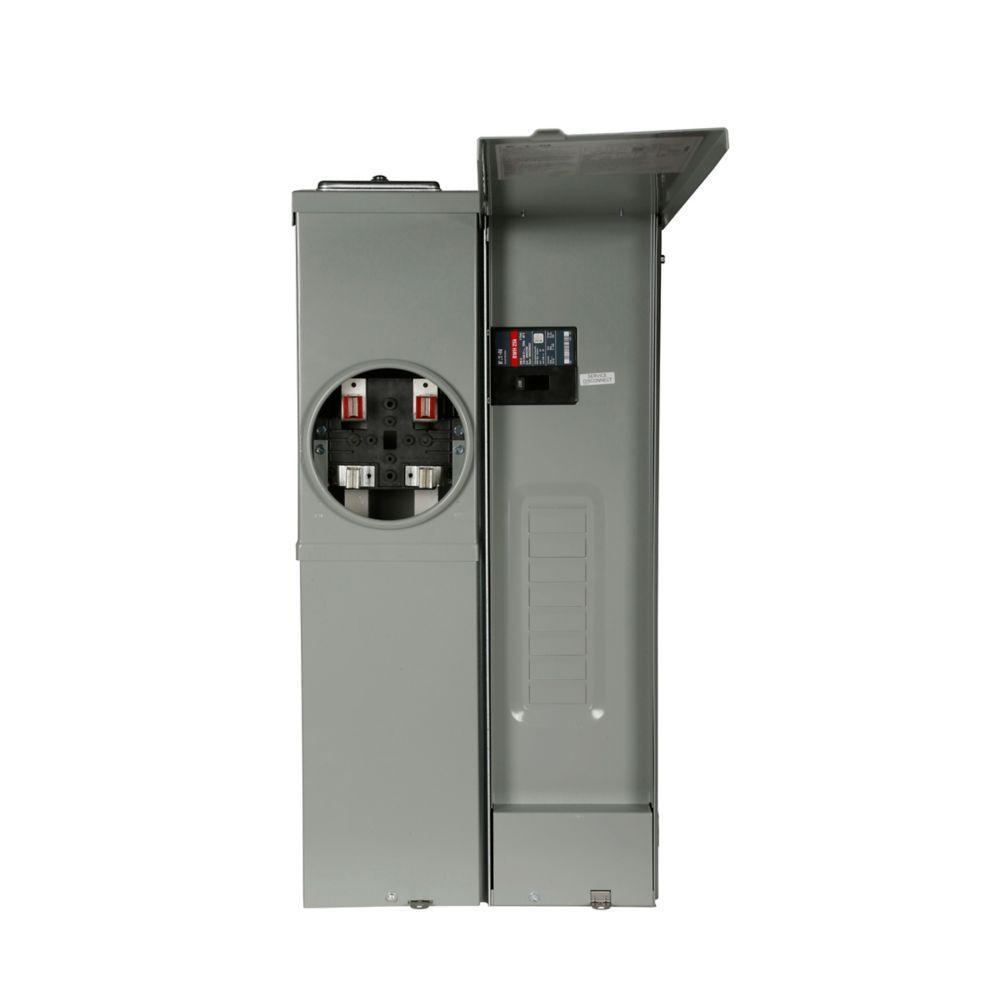

EATON MBE88B200BTS Type CH 8-Circuit 1-Socket 8-Space 3-Wire All-In-One Combination Service Entrance Compact Meter Breaker With MBDF16M Mechanical Interlock Deadfront Cover, 120/240 V, 200 A, 1 Phase , NEMA 3R Enclosure
- Manufacturer Name: Eaton
- MPN: MBE88B200BTS
- Brand Name: EATON
- UPC: 782114849255
- FEPN: MBE88B200BTS EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Eaton's residential meter breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.
EATON Meter Breaker, Type CH 8-Circuit 1-Socket 8-Space 3-Wire All-In-One Combination Service Entrance Compact, Series: MBE, 120/240 V, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil, 6 AWG to 250 kcmil Wire, Top Endwall, 1 in Hub, Ring Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 6.3 in H
| Cover Type | : | Ring |
| Dimensions | : | 5.38 in L x 14.44 in W x 6.3 in H |
| Feed Type | : | Bottom/Overhead/Top/Underground |
| Hub Size | : | 1 in |
| Hub Type | : | Top Endwall |
| Mounting Type | : | Surface |
| Number of Jaws | : | 4 |
| Series | : | MBE |
| Terminal Type | : | Line/Load |
| Wire Size | : | 6 AWG to 250 kcmil, 6 AWG to 250 kcmil |
| Type | : | Type CH 8-Circuit 1-Socket 8-Space 3-Wire All-In-One Combination Service Entrance Compact |
| Voltage Rating | : | 120/240 V |
| Amperage Rating | : | 200 A |
| Phase | : | 1 |
| Enclosure Type | : | NEMA 3R |
- Larger 250 kcmil lugs and additional knockouts for ease of installation
- Factory installed neutral assemblies

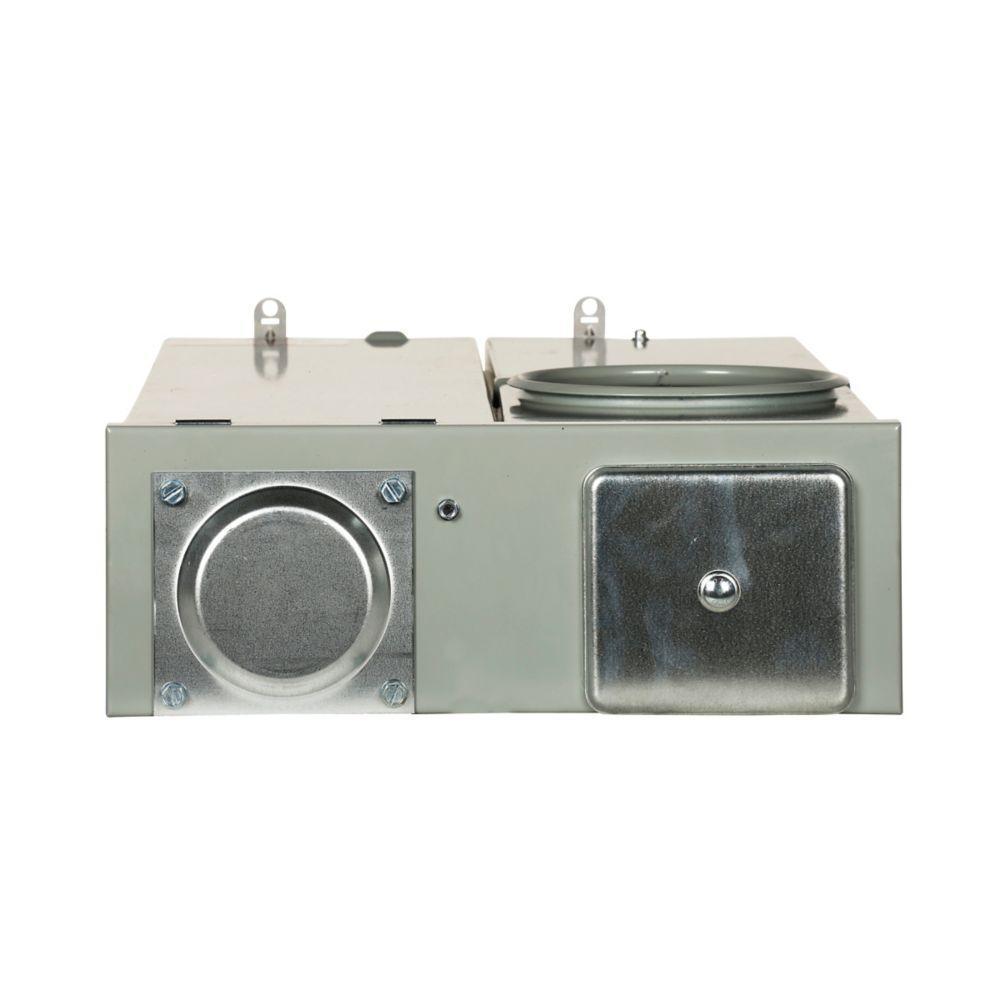

- Hub provisions on top endwall
- Ring type sockets are provided with a sealing ring
- Padlockable device covers provide an additional measure of security and help prevent tampering
- Most units have center keyhole for easy one person installation
