Eaton Bussmann series BCM and BMM ferrule fuse blocks feature a modular design that allows assembly of the required poles at point of use. Available for class CC and supplemental control circuit 10 x 38 mm (13/32 x 1-1/2 in) fuses, these blocks have features and accessories that add versatility, reduce labor and help enhance safety of any panel design. The fuse blocks are available in factory assembled 1, 2 and 3-pole versions and feature a compact footprint that consumes minimal panel space.

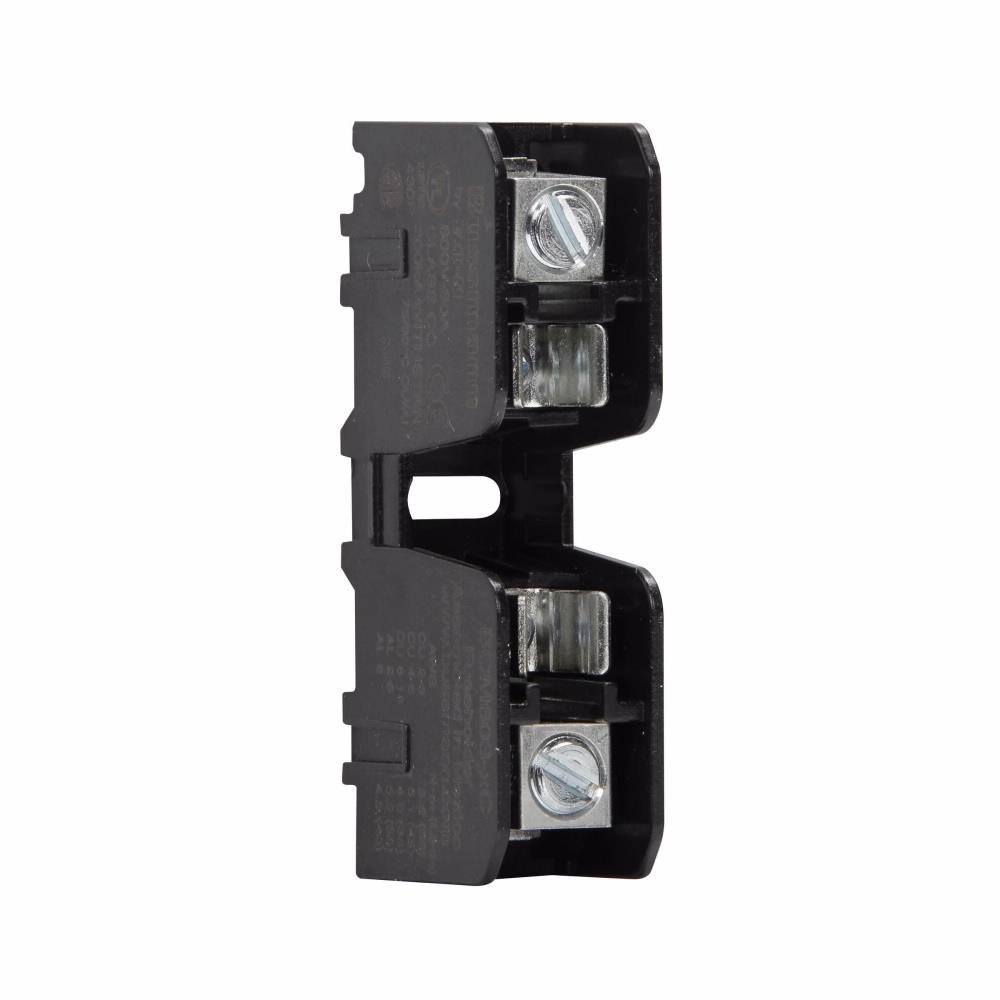

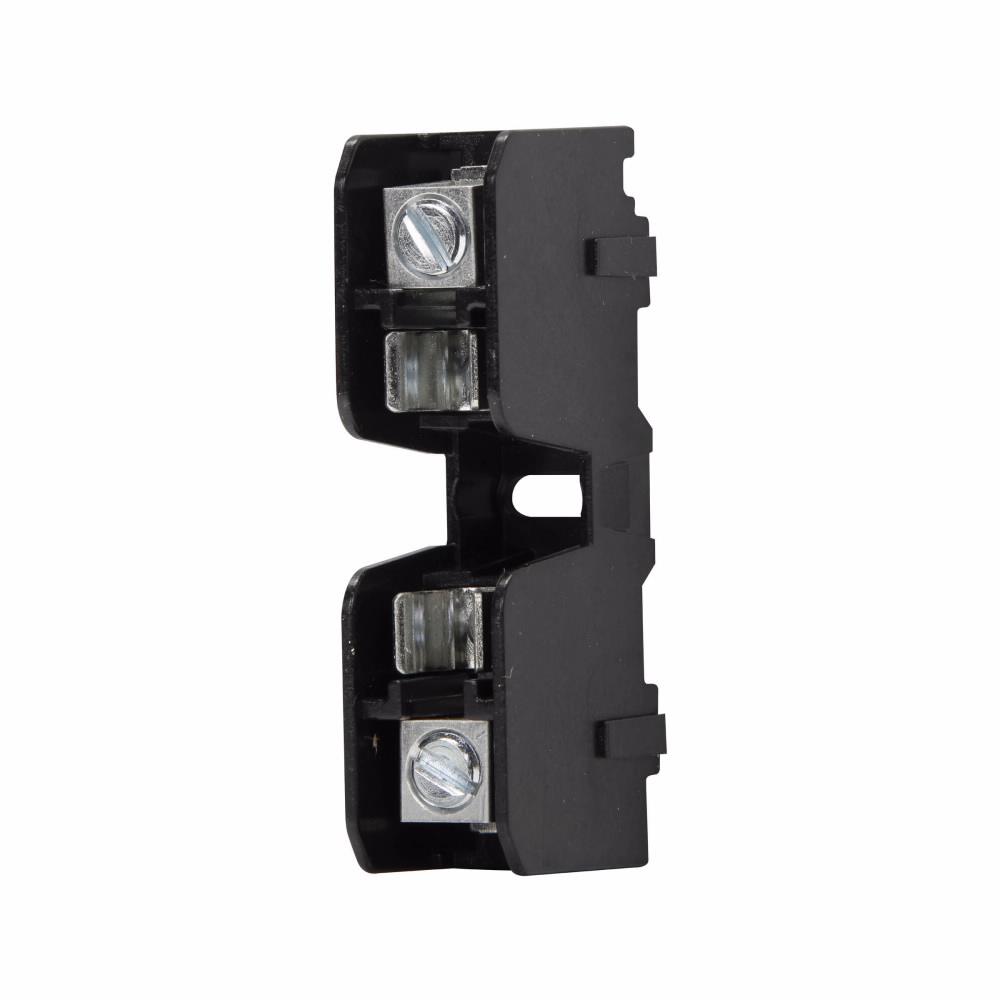

Bussmann Fuse Block, Modular, Series: BCM, 600 VAC/VDC, 0 to 30 A, 1 Pole, Class: CC, Box Lug/Wired, 14 to 2 AWG Wire, DIN Rail Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: KTK-R, FNQ-R, LP-CC Series Fuse, Thermoplastic, 3 in L x 0.8 in W x 1.3 in H

• Modular, snap together design provides toolless assembly of multiple poles to save inventory and reduce assembly time
• DIN rail and panel mount versatility allows products to be used for multiple applications and lowers inventory cost
• Fuse block covers feature easy circuit identification with available universal marker labels
• Patented design of class CC blocks provides up to 30% less heat rise and 40% less watts loss than competitive products

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BCM603_1C_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk
