The Blackjack® grounding bushing never has to be threaded onto a conduit. It is simply placed in position on either a threaded or non-threaded rigid or IMC conduit, with the grounding lug in perfect position to accept the grounding wire. Even in tight installations, it's as simple as one, two, three. Compare the installation with conventional bushings that must be threaded onto the conduit. In tight areas, you may have to remove the grounding lug, keep up with the loose parts and then reattach the lug. Then you still have to twist and turn the bushing to get the lug in position to accept the grounding wire. The Blackjack® bushing does away with these needless delays for good, making it the ideal grounding bushing and the only logical choice for small spaces, corners and multiple conduit runs. And because the grounding lug is an integral part of the bushing, it is designed not to fall off or get lost.

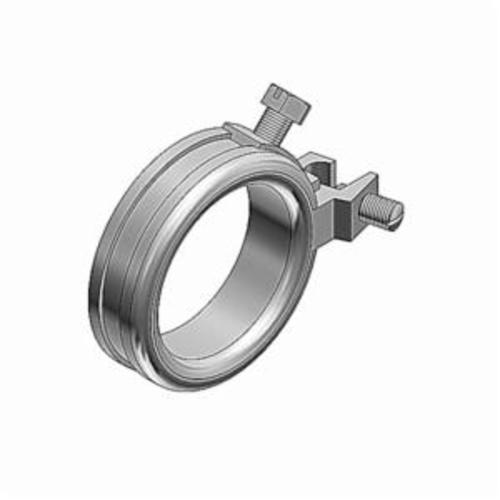

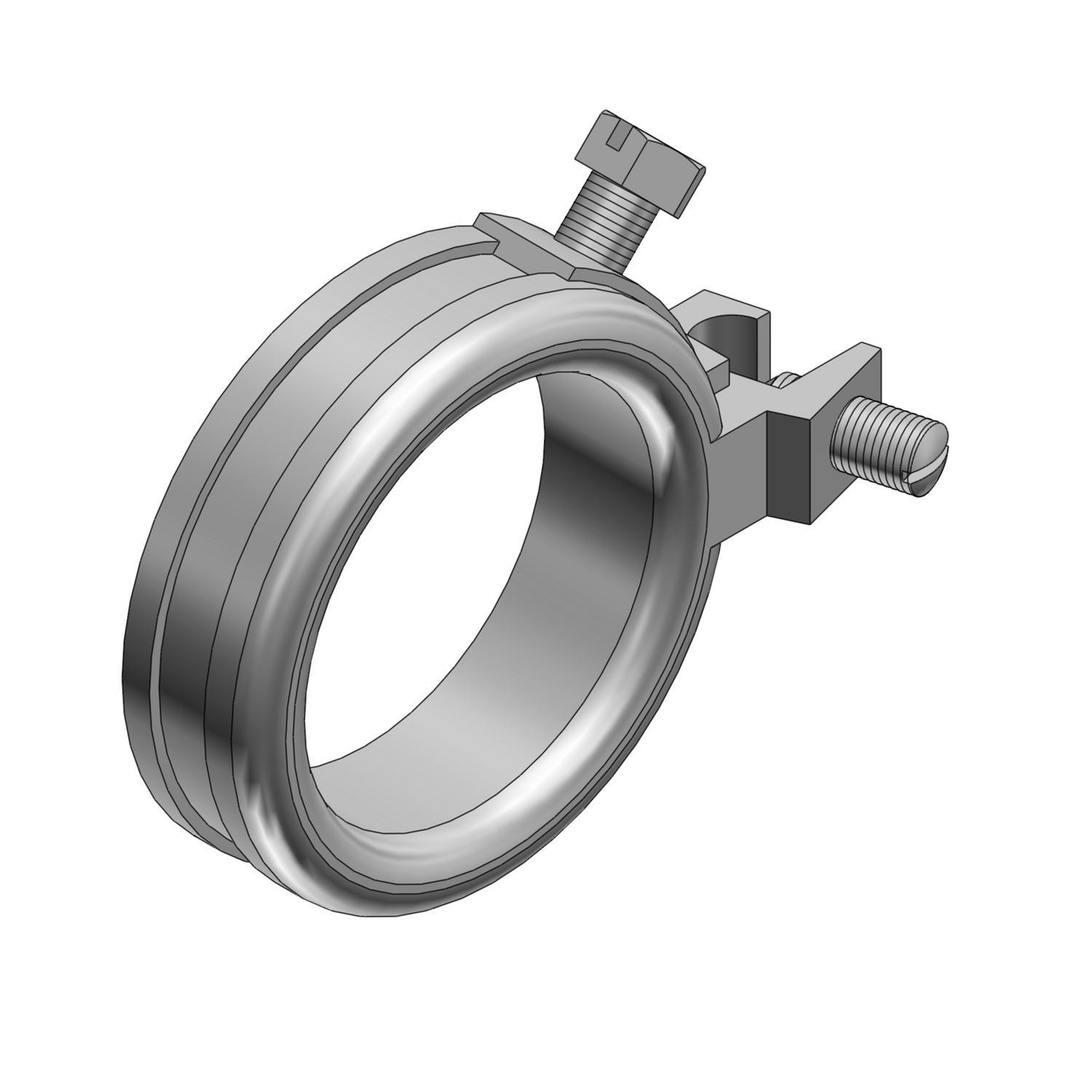

T&B® Blackjack® Grounding Bushing, 14 to 2/0 AWG AC Cable Size, 1-1/4 in, Insulated Insulated/Non-Insulated, 302 deg F, Threaded Mount, Malleable Iron, Zinc Plated, 1.319 in ID x 2.22 in OD

• Mounting screw with nylon locking patch has a cone point to lock bushing securely in place
• Integral grounding lug enhances ground continuity
• Added ground wire range taking reduces inventory
• Accepts copper or aluminum ground wires
• Insulating nylon surface is 150 deg C rated and covers top of bushing, including lug corners
• Angle of lug screw improves accessibility when securing grounding wire
• Insulator surface features a rounded design to reduce drag and prevent abrasion during wire pulling
• Cast "threads" opposite the mounting screw tighten the fit during installation
