For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

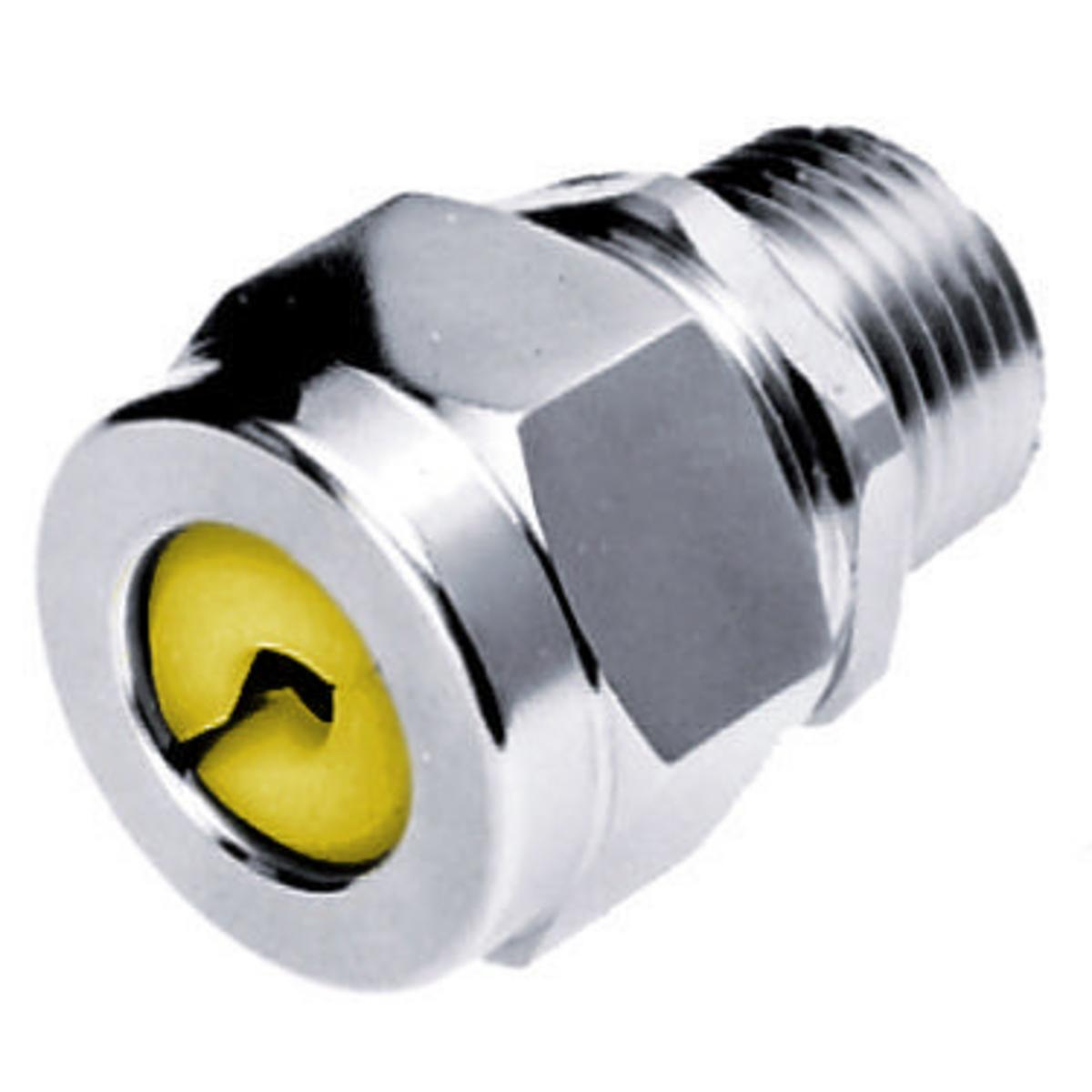

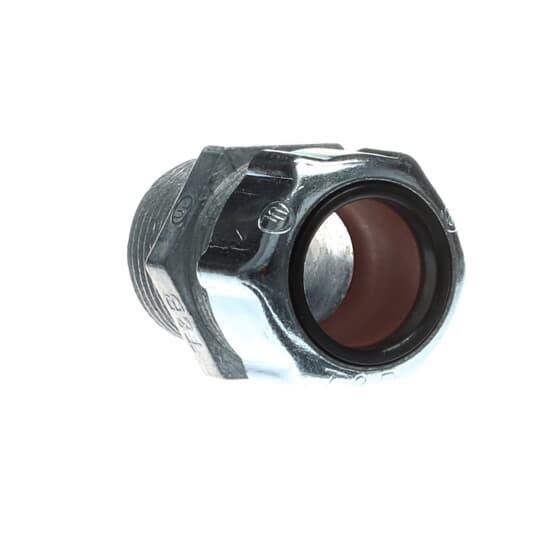

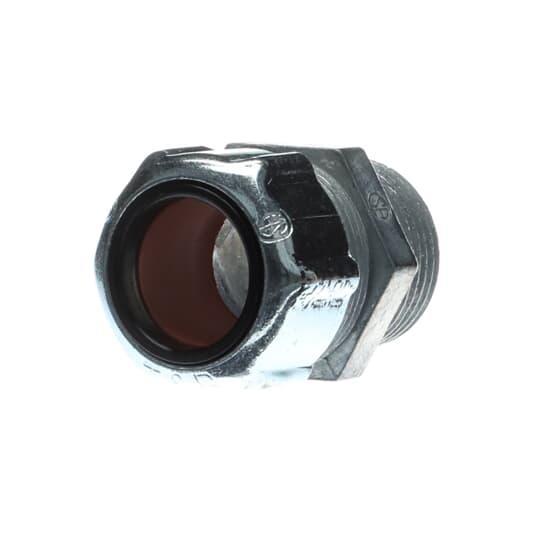

T&B® Strain Relief Cord Connector, Liquidtight, Series: Ranger®, 3/4 in, Cable Openings: 5/8 to 3/4 in, S/SO Cable, Thread, Die Cast Zinc, Zinc Plated, Metallic, 105 deg C, 1-3/8 in Dia x 1-3/4 in L
| Cable Type | : | S/SO |
| Color | : | Metallic |
| Connection Type | : | Thread |
| Dimensions | : | 1-3/8 in Dia x 1-3/4 in L |
| Series | : | Ranger® |
| Temperature Rating | : | 105 deg C |
| Type | : | Liquidtight |
| Trade Size | : | 3/4 in |
| Cable Openings | : | 5/8 to 3/4 in |
| Material | : | Die Cast Zinc |
| Finish | : | Zinc Plated |
- Neoprene bushing makes liquid tight installation, applies pressure against cable the full length of bushing
- 9/16 in L thread
- 13/16 in dia throat
- S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
