Black Beauty® non-metallic cord connector offers the convenience of tool-free installation, with a segmented chuck for high mechanical pullout performance and neoprene bushings for a secure, Liquidtight® installation.

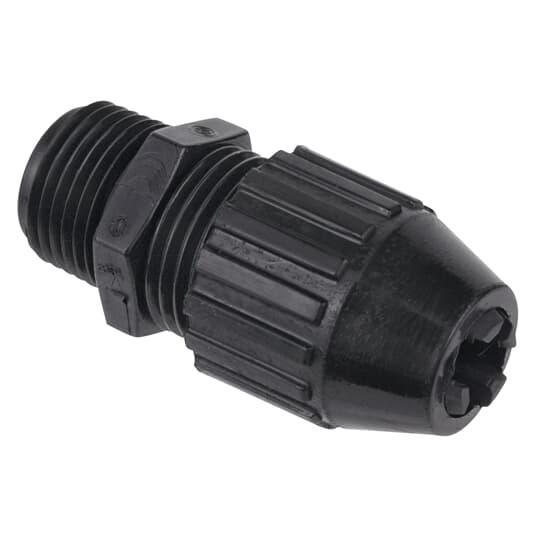

T&B® Black Beauty® Cord Connector, Liquidtight Strain Relief, 1/2 in, Cable Openings: 0.4 to 0.56 in, Thread, Nylon, Black, -34 to 105 deg C, 2.6 in L x 1.27 in W
| Color | : | Black |
| Connection Type | : | Thread |
| Dimensions | : | 2.6 in L x 1.27 in W |
| Temperature Rating | : | -34 to 105 deg C |
| Type | : | Liquidtight Strain Relief |
| Trade Size | : | 1/2 in |
| Cable Openings | : | 0.4 to 0.56 in |
| Material | : | Nylon |
- Hand tightens, no tools needed for assembly
- Segmented chuck provides high mechanical pullout performance, will not cut or damage cord jacket
- 0.6 in L thread
- 0.55 in dia throat
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC. class I, Div 2, class II, Div 1 & 2, class III, Div 1 & 2, NEC 501-4(b), 502-4(a)(b), 503-3(a)(b)
- Neoprene bushing
- Remove sufficient outer covering of cable to permit conductors to pass-through fitting body
- Non-metallic
Specification Sheet
