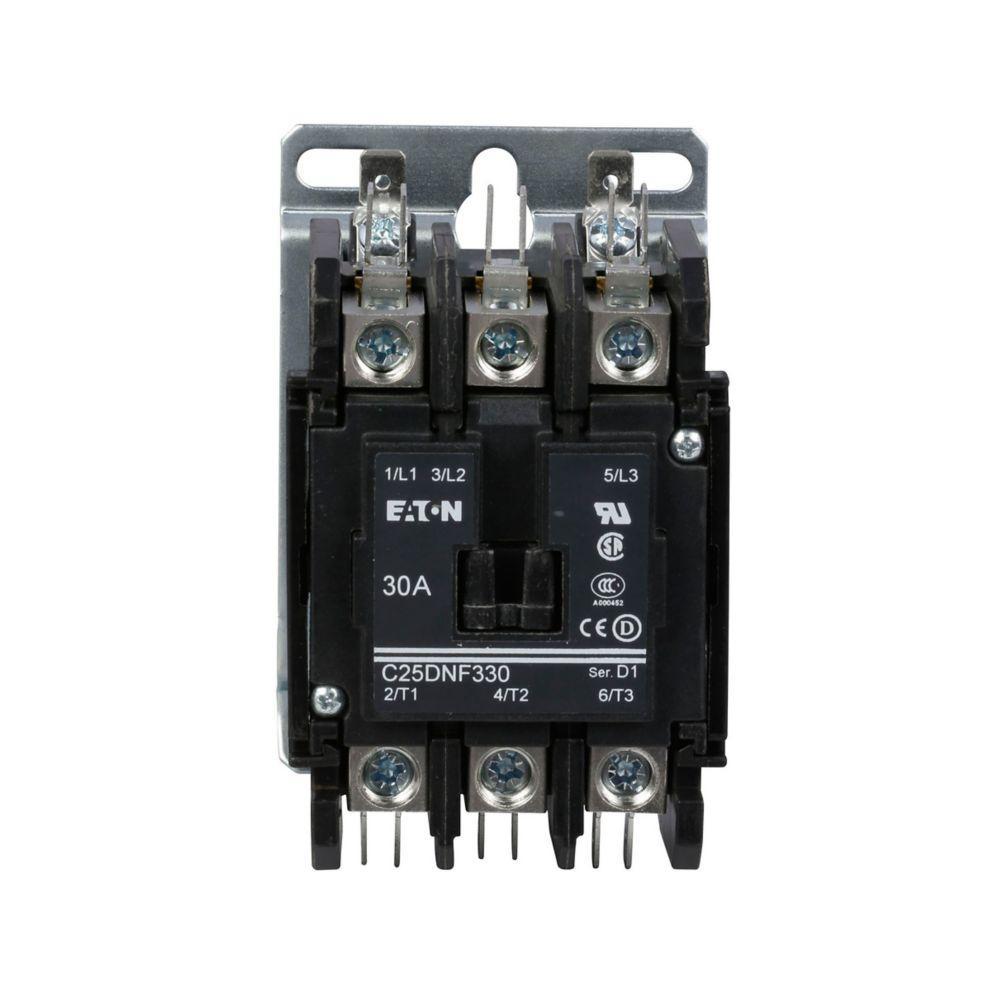

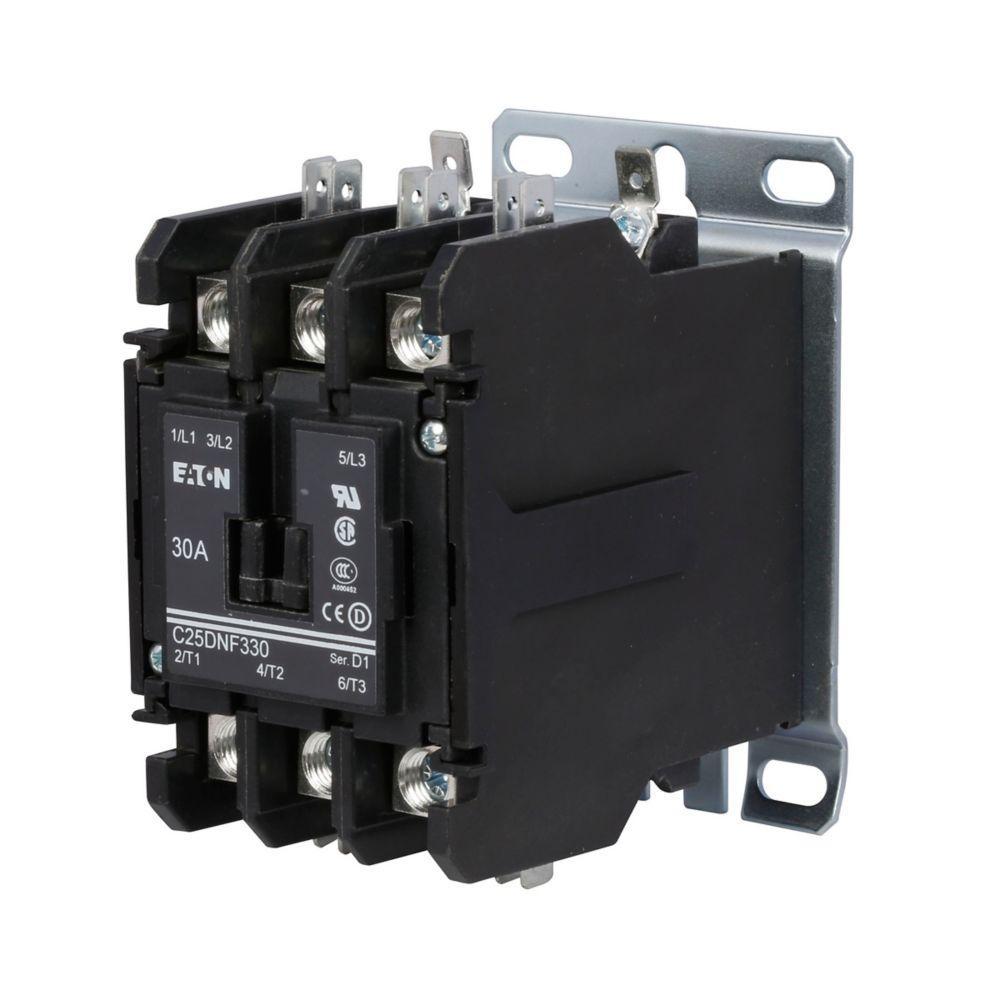

EATON C25DNF330T
EATON C25DNF330T Non-Reversing Definite Purpose AC Contactor, 24 VAC V Coil, 30 A Inductive/40 A Resistive, 3 Poles
- Manufacturer Name: Eaton
- MPN: C25DNF330T
- Brand Name: EATON
- UPC: 782116311422
- FEPN: C25DNF330T EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.
EATON Definite Purpose AC Contactor, Non-Reversing, 24 VAC Coil, 30 A Inductive/40 A Resistive Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Double Break Contact, Quick-Connect (Side by Side) Connection, Box Lug (Posi Drive Setscrew) Terminal, Open Enclosure, 150 deg F Ambient Operating, Surface Mounting, 3.35 in L x 2.4 in W x 3 in H Dimensions
| Connection Type | : | Quick-Connect (Side by Side) |
| Contact Type | : | Double Break |
| Dimensions | : | 3.35 in L x 2.4 in W x 3 in H |
| Enclosure Type | : | Open |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Surface |
| Operating Temperature | : | 150 deg F Ambient |
| Terminal Type | : | Box Lug (Posidrive Setscrew) |
| Type | : | Non-Reversing |
| Coil Voltage | : | 24 VAC |
| Maximum Load Current | : | 30 A Inductive/40 A Resistive |
| Number of Poles | : | 3 |
- The universal mounting plate eliminates changing hole patterns when replacing competitive devices
- Variety of terminal styles allows product to meet all specific application needs
- Snap-on accessories require no tools for hassle-free installation
- Quick coil changing ability allows for easy maintenance
- Non-position sensitive mounting allows for fast, convenient set up
- Shrouded or fingerproof terminals to reduce possibility of electrical shock
- Open with metal mounting plate
Specification Sheet
