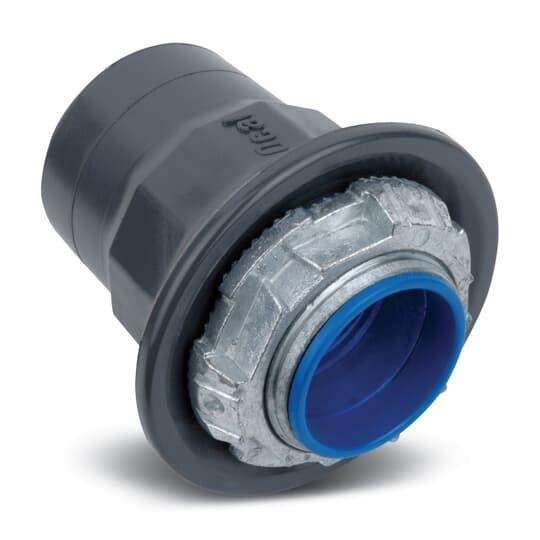

Ocal® HUB3/4-G
Ocal® Ocal-Blue™ HUB3/4-G Knockout Hub Connector With Thermoplastic Insulated Throat, 3/4 in, For Use With Conduit Body and Fitting, Zinc, PVC Coated
- Manufacturer Name: ABB
- MPN: HUB3/4-G
- Brand Name: Ocal®
- UPC: 704508388638
- FEPN: HUB3/4-G TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B® has removed certain "Only Ocal" statements from its literature and advertising as part of the settlement of a lawsuit.
Ocal® Ocal-Blue™ Knockout Hub Connector, 3/4 in Size, For Use With: Conduit Body and Fitting, Zinc, Dark Gray, PVC Coated, 1.44 in OD x 1.59 in H Dimensions
| Color | : | Dark Gray |
| Dimensions | : | 1.44 in OD x 1.59 in H |
| Size | : | 3/4 in |
| Suitable For Use With | : | Conduit Body and Fitting |
| Material | : | Zinc |
| Finish | : | PVC Coated |
- Captive sealing ring won't buckle or slip during installation and provides a complete 360 deg seal even when conduit isn't perpendicular to the enclosure
- Hexagonal/splined body and locknut enables fast and easy installation
- Sharper and deeper teeth provide a more penetrating bite for improved bonding to the enclosure
- Zinc or copper-free aluminum with a nominal 0.04 in PVC coating bonded to exterior - in blue, white, gray or custom colors
- Pressure sealing sleeves protect connections
- Nitrile (Buna-N) sealing ring
- 0.78 in dia throat
- 0.19 in THK maximum panel
- 105 deg C temperature
- 3/4 in pipe
