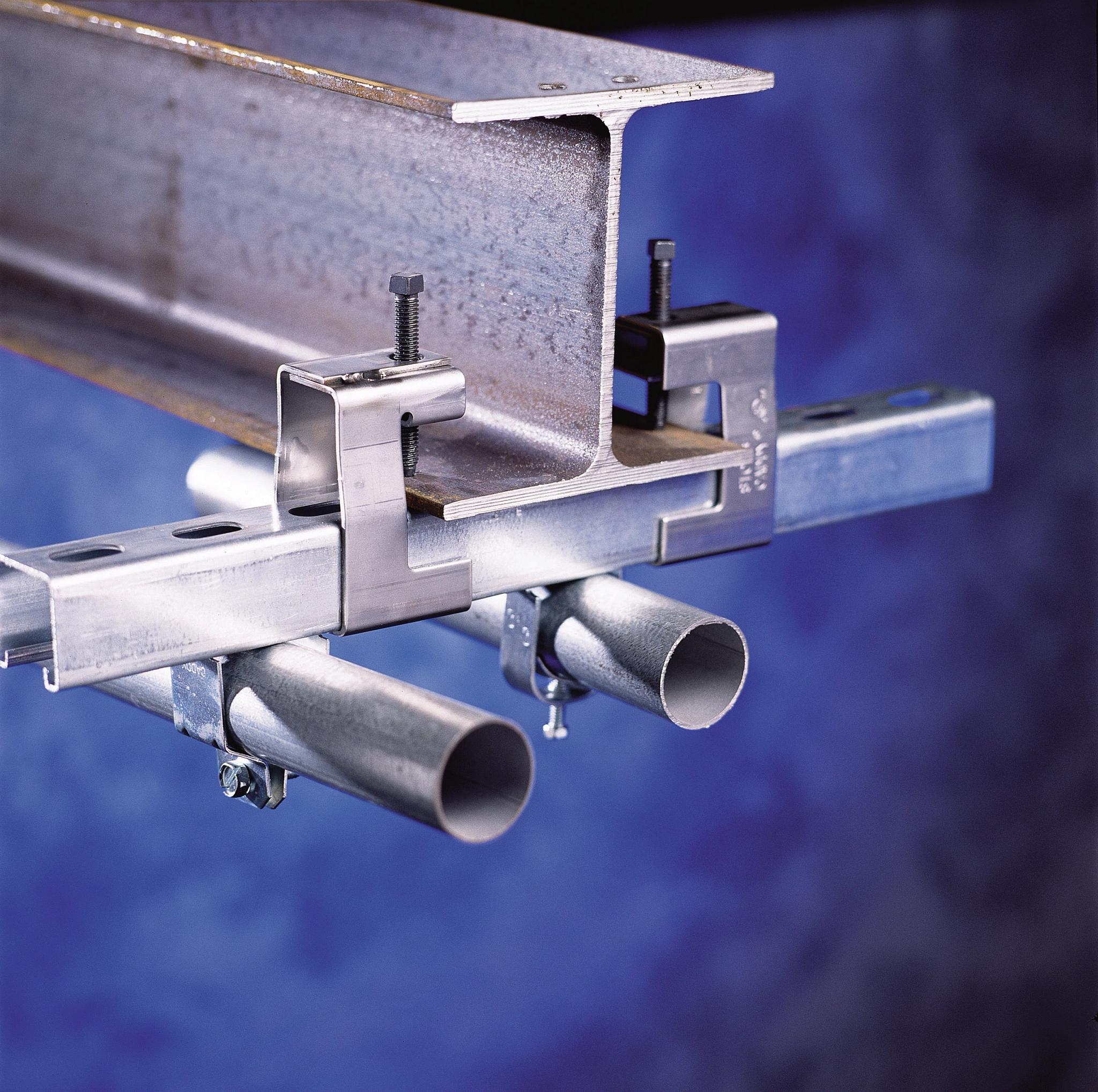

nVent CADDY STCB6
nVent CADDY ERISTRUT™ STCB6 Dual Purpose Multi-Functional Wide Mouth Strut and Rod Beam Clamp With Bolt, 2 in THK Flange, 400 lb Static Load, Steel
- Manufacturer Name: nVent
- MPN: STCB6
- Brand Name: nVent CADDY
- UPC: 782856348450
- FEPN: STCB6 ER
- Min Order Qty: 1
- Quantity Interval: 10
-
Inventory Availability
-
Retail Price:
nVent CADDY ERISTRUT™ Strut and Rod Beam Clamp, Dual Purpose Multi-Functional Wide Mouth, 2 in Flange Thickness, 400 lb Static, For Use With: nVent CADDY Type A and CC 1-5/8 in x 1-5/8 in Eristrut Strut Channel, 3/8 in Rod/Screw, Steel, Electro-Galvanized
| Finish | : | Electro-Galvanized |
| Specifications | : | 3/8 in Rod/Screw |
| Suitable For Use With | : | nVent CADDY Type A and CC 1-5/8 in x 1-5/8 in Eristrut Strut Channel |
| Type | : | Dual Purpose Multi-Functional Wide Mouth |
| Flange Thickness | : | 2 in |
| Load Capacity | : | 400 lb Static |
| Material | : | Steel |
- Requires installation in pairs
- More versatile than window brackets or standard beam clamps
- No loose parts makes installation easy and cost effective
- Permits strut channel opening position in any direction
- Strut to beam flanges up to 3/4 in thickness for 1-5/8 in D strut
- Lock nut and hardened cup point setscrew provide secure grip on tapered sections
- Corrosion-resistant galvanized finish
