Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble free installation and years of superior performance.

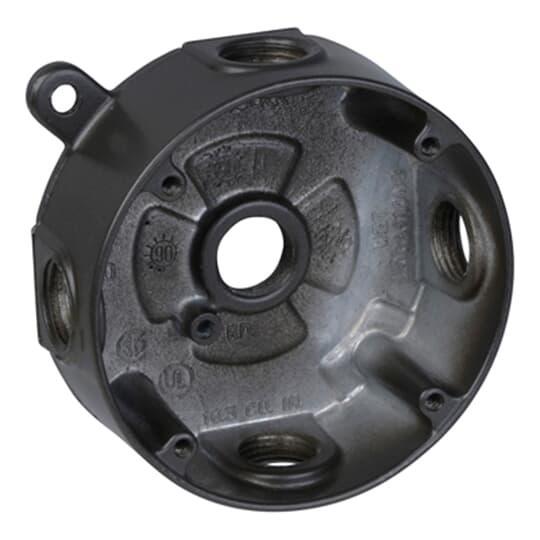

Red Dot® Outlet Box, 5 Outlets, 1/2 in Hub, 4-1/8 in Diameter, Round Shape, Lug Mounting, 16.3 cu-in Capacity, Die Cast Aluminum, Aluminum Lacquered, Bronze, 2-7/16 in H x 4-1/8 in W Dimensions
| Color | : | Bronze |
| Diameter | : | 4-1/8 in |
| Finish | : | Aluminum Lacquered |
| Hub Size | : | 1/2 in |
| Mounting Type | : | Lug |
| Shape | : | Round |
| Material | : | Die Cast Aluminum |
| Capacity | : | 16.3 cu-in |
| Number of Outlets | : | 5 |
| Dimensions | : | 2-7/16 in H x 4-1/8 in W |
- Precision cast and machined surfaces permit safer wire pulling
- Clean cover edges provide good gasket sealing
- Clear UL and cubic content markings speed approval by inspectors
- Deep slotted stainless steel cover screws for faster installations
- Spacious, accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
- Junction box for branch conduits
- Four on the sides and one in back and blank cover
