Blackburn® 71005-TB
Send Print
  1. pin-int

Blackburn® 71005-TB

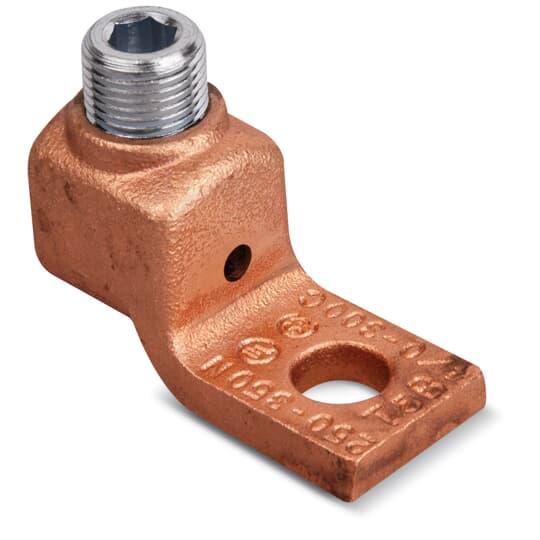

Blackburn® Locktite® 71005-TB Cone Screw Lug, 14 to 4 AWG Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Copper

  • Manufacturer Name: ABB
  • MPN: 71005-TB
  • Brand Name: Blackburn®
  • UPC: 786210896793
  • FEPN: 71005-TB TB
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

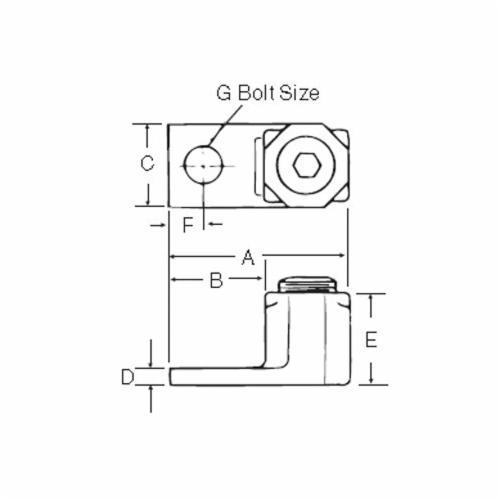

Blackburn® Locktite® Cone Screw Lug, Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 5/8 in L x 9/16 in W x 1/8 in THK Tongue, Straight Tongue, 35 in-lb Screw Driver Wrench Torque, Copper, 1-5/32 in L x 9/16 in W x 19/32 in H

Dimensions       :      1-5/32 in L x 9/16 in W x 19/32 in H
Specifications       :      35 in-lb Screw Driver Wrench Torque
Tongue Size       :      5/8 in L x 9/16 in W x 1/8 in THK
Tongue Type       :      Straight
Conductor Size       :      14 to 4 AWG
Conductor Type       :      Copper
Stud Size       :      1/4 in
Number of Bolt Holes       :      1
Material       :      Copper
  • Conically shaped screw compresses copper conductor so each strand is forced to carry its share of the load
  • Exerts equal pressure on each conductor strand
  • 1 stud of 1/4 in
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Blackburn_71014_Specification_Sheet_CA.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e5b27aa13795712296c5982613da89cd6618bd61e5a0496b71f22f696b98c467.pdf
