Wiring Device-Kellems HBL2315SW

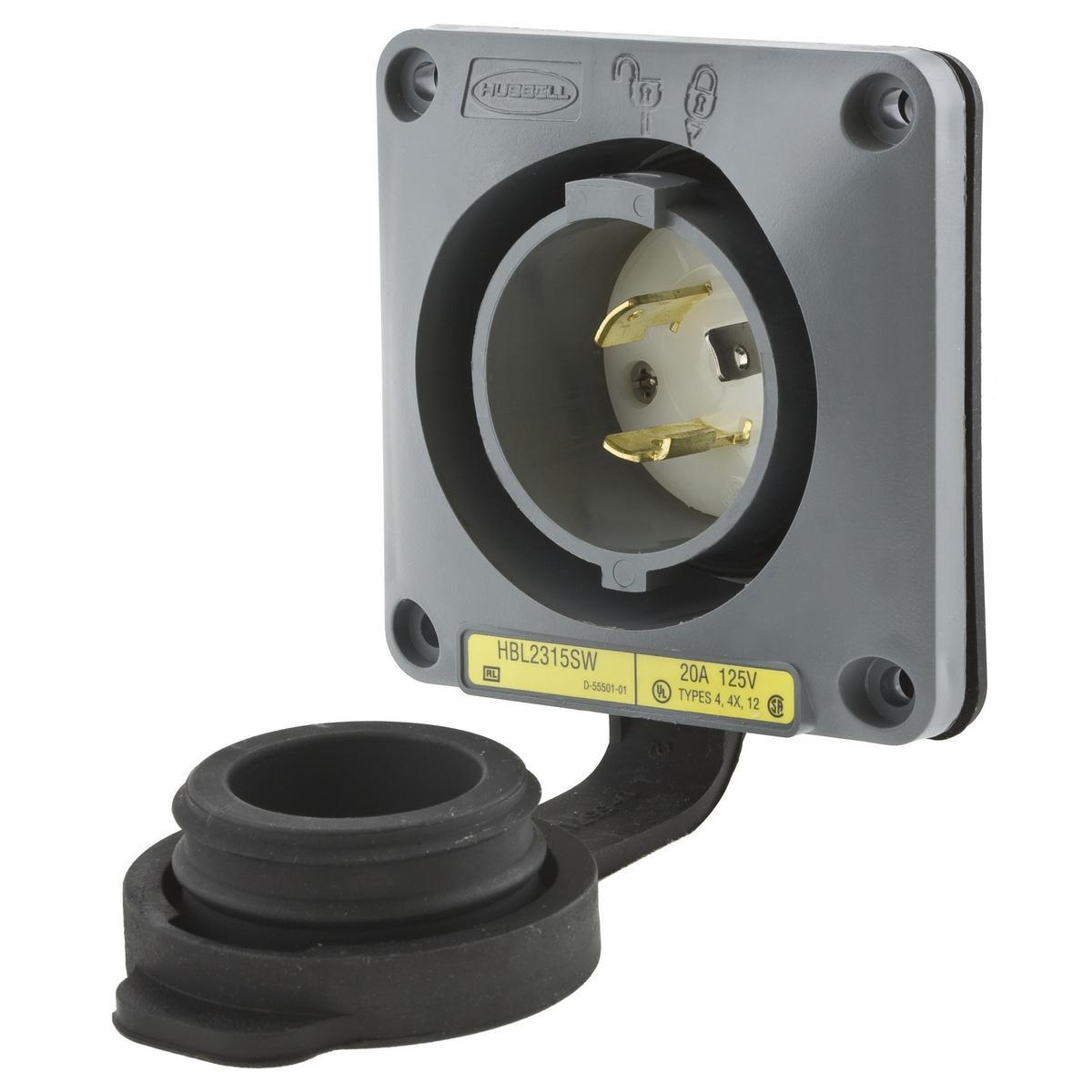

Wiring Device-Kellems Twist-Lock® HBL2315SW 1-Phase Extra Heavy Duty Grounding Screw Mount Watertight Locking Flanged Inlet, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
- Manufacturer Name: Hubbell
- MPN: HBL2315SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231068
- FEPN: HBL2315SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Locking Flanged Inlet, 1-Phase Extra Heavy Duty Grounding Screw Mount Watertight, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 75 deg C, Screw Terminal, Valox™, Gray, 3.75 x 3.75 x 2.28 in
| Dimensions | : | 3.75 x 3.75 x 2.28 in |
| Enclosure | : | NEMA 4/4X/12/IP66 |
| Grade | : | Industrial |
| Horsepower | : | 1 hp |
| Material | : | Valox™ |
| NEMA Rating | : | L5-20P |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Extra Heavy Duty Grounding Screw Mount Watertight |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Gray |
- 1 piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color coded voltage rating are easily visible even when in use
- Withstands 2000 VAC minimum dielectric voltage
- 16 to 8 AWG terminal accommodation
- NO 10 to 32 brass terminal screw
