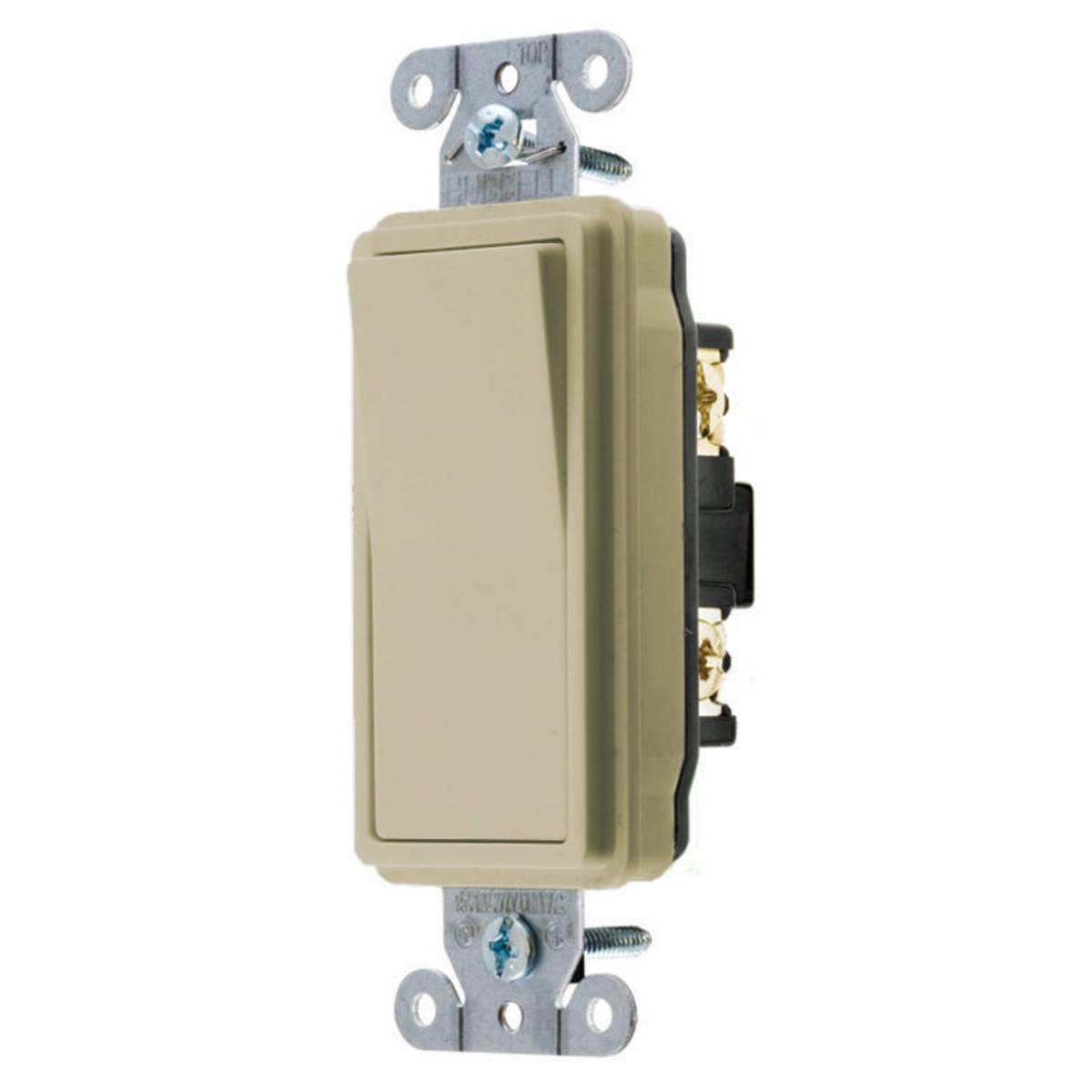

Pass & Seymour® Decorator Switch, 120/277 VAC, 15 A, 1 W, 1 Pole, Paddle/Rocker, Bare, Wall, Threaded Terminal, 50000 Operating Cycles, Polycarbonate, Ivory, Environmental Conditions: -40 to 115 deg C Temperature, 3.28 in H x 1.3 in W x 1.06 in D
| Actuator | : | Paddle/Rocker |
| Color | : | Ivory |
| Dimensions | : | 3.28 in H x 1.3 in W x 1.06 in D |
| Environmental Conditions | : | -40 to 115 deg C Temperature |
| Insulation | : | Bare |
| Material | : | Polycarbonate |
| Mounting | : | Wall |
| Number of Poles | : | 1 |
| Operating Cycles | : | 50000 Cycles |
| Terminal Type | : | Threaded |
| Voltage Rating | : | 120/277 VAC |
| Amperage Rating | : | 15 A |
| Power Rating | : | 1 W |
- Impact resistant polycarbonate back body and frame
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts
- Internal screw pressure plate back and side wire capability for easy installation with 14 to 10 AWG stranded or solid copper clad wire
- Terminals made of high conductivity brass and serrated for maximum wire gripping
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance
- Integral auto-ground clip for positive ground to metal boxes
- Tri-drive ground, terminal and mounting screws
- All terminal screws backed out, ready-to-install
- Heavy gauge steel strap for superior strength
- No exposed terminals create a finger safe application before, during and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Large brass contacts snugly terminate on device blade terminals, audible snapping latch assures connection, allows release
- Housing secures terminations and conductors in a UL Listed, finger safe housing
- 1500 VAC minimum dielectric strength voltage
- Impact resistant nylon face, corrosion resistant, plated steel strap, tamper resistant, heavy duty
