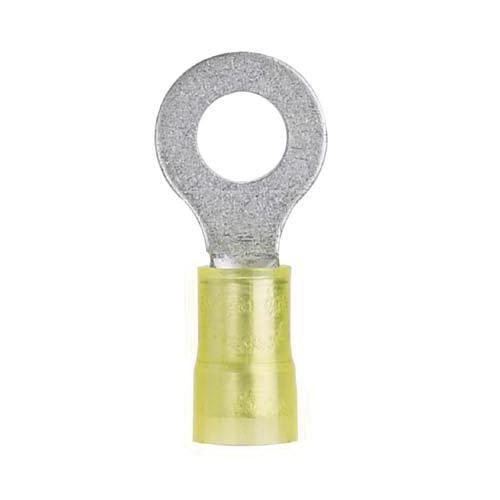

Panduit® PN10-10R-L
Panduit® Pan-Term™ PN10-10R-L Type PN-R Loose Piece Ring Terminal, 10 AWG Conductor, 1.06 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, Yellow
- Manufacturer Name: Panduit
- MPN: PN10-10R-L
- Brand Name: Panduit®
- UPC: 074983800322
- FEPN: PN10-10R-L PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term™ Ring Terminal, Type PN-R Loose Piece, Solid/Stranded Conductor, 10 AWG Conductor, #10 Stud, 1.06 in Length, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Ring Tongue, 0.38 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Nylon Insulation, 0.31 in Clearance, 9/32 in L Wire Strip, 9/32 in Mounting Hole Size, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
| Conductor Type | : | Solid/Stranded |
| Finish | : | Tin Plated |
| Specifications | : | 0.225 in Dia Nylon Insulation, 0.31 in Clearance, 9/32 in L Wire Strip, 9/32 in Mounting Hole Size, Ring Shape Enclosure |
| Stud Size | : | #10 |
| Temperature Rating | : | 221 deg F |
| Tongue Size | : | 0.38 in W x 0.04 in THK |
| Tongue Type | : | Ring |
| Type | : | Type PN-R Loose Piece |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 10 AWG |
| Length | : | 1.06 in |
| Barrel Type | : | Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard |
| Material | : | Copper |
| Color | : | Yellow |
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
