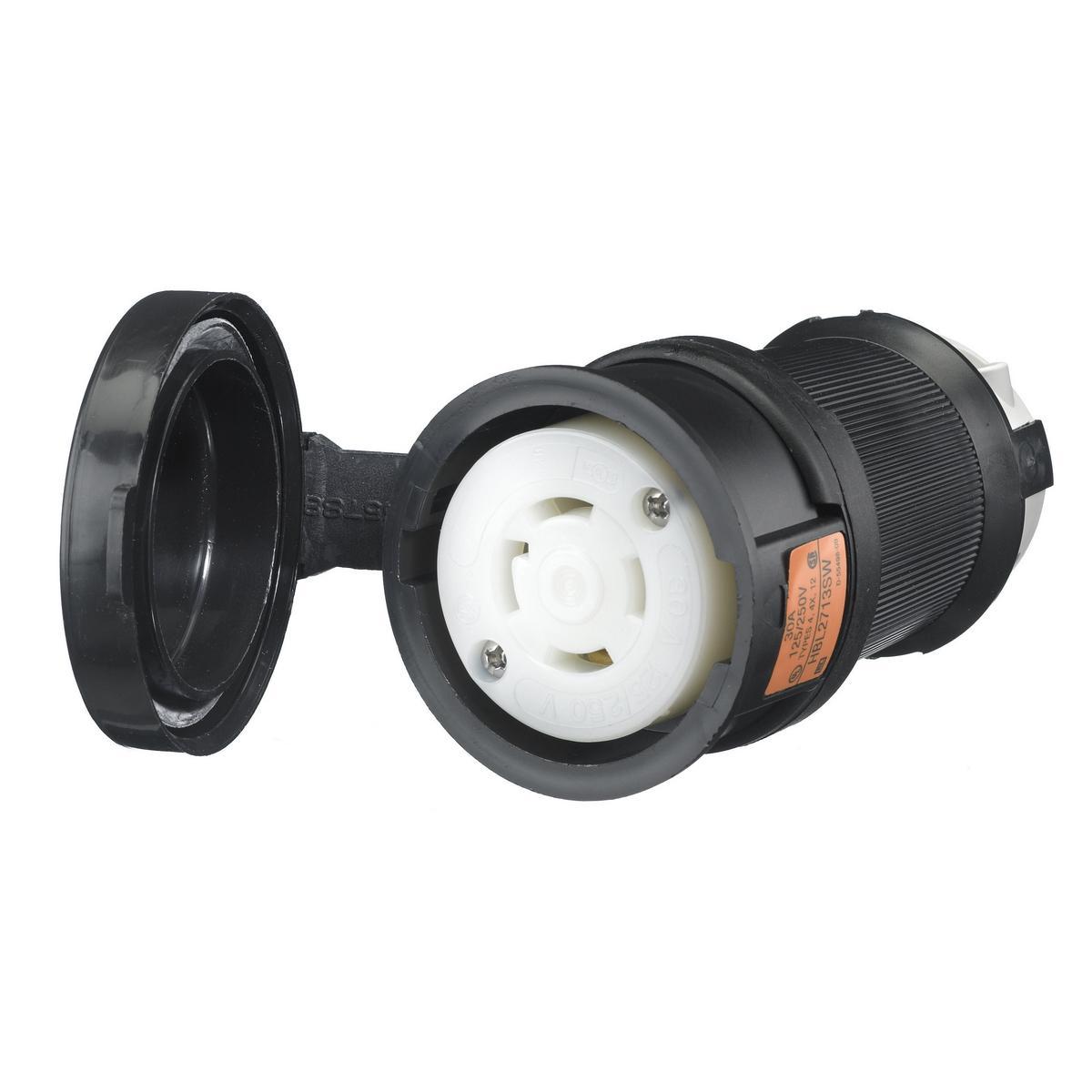

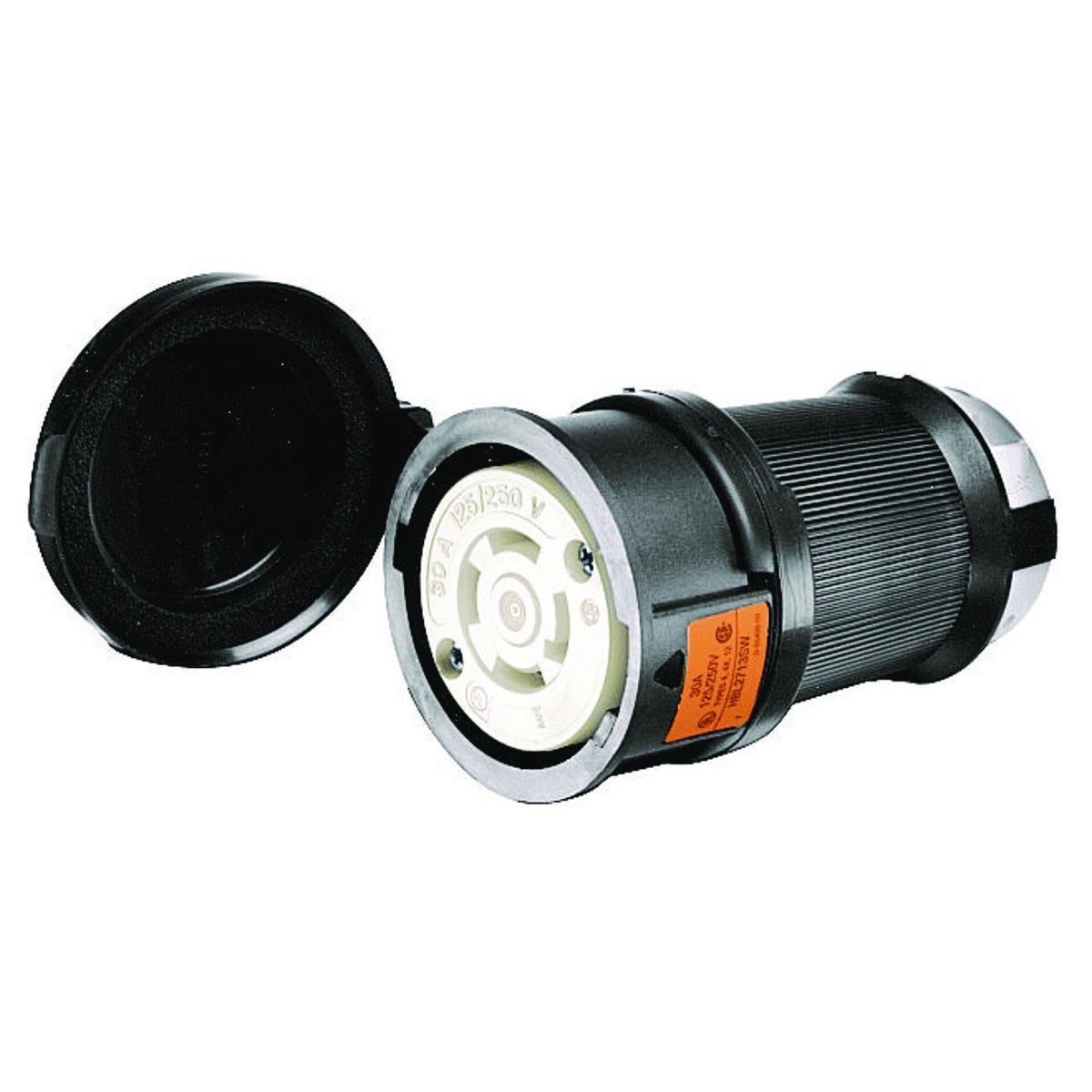

Wiring Device-Kellems HBL2713SW
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2713SW Grounding Heavy Duty Cord Mount Watertight Locking Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2713SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231785
- FEPN: HBL2713SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Grounding Heavy Duty Cord Mount Watertight, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, L14-30R NEMA Rating, Industrial Grade, IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.75 x 2.75 x 4.4 in
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 2.75 x 2.75 x 4.4 in |
| Enclosure | : | IP66 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Composite |
| NEMA Rating | : | L14-30R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Grounding Heavy Duty Cord Mount Watertight |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black/White |
- UL type 4X environmental seal protects connection while-in use
- 1 piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain
- Clear polycarbonate terminal retainer
- Steel nickel plated terminal clamp
- Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
- Stainless steel zinc plated cord clamp screw, body holding screw
- 30 A, 10 AWG terminal accommodation
- Impact modified PBT
- Withstands 2000 VAC dielectric voltage
