Wiring Device-Kellems HBL4720C

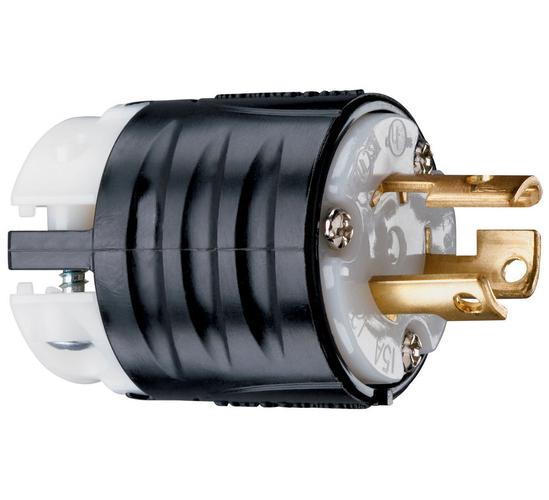

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL4720C 1-Phase Grounding Cord Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL4720C
- Brand Name: Wiring Device-Kellems
- UPC: 783585171159
- FEPN: HBL4720C HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Grounding Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, L5-15P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.53 x 1.53 x 1.97 in
| Cord Diameter | : | 0.23 to 0.72 in |
| Dimensions | : | 1.53 x 1.53 x 1.97 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 1/2 hp |
| Material | : | Nylon |
| NEMA Rating | : | L5-15P |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Grounding Cord Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black/White |
- Withstands 2000 VAC dielectric voltage
- 14 to 12 AWG wire
- 16 to 8 AWG stranded copper wire terminal accommodation
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Brass blade, terminal screw and ground screw
- Steel zinc plated cord clamp screw, body holding screw
- Individually molded face for each blade configuration
- Roomy wiring chamber provides ample space for wiring
- Ribbed nylon housing provides a secure grip that impact and chemical resistant
- Natural white nylon blade holder material, cord clamp material
- Clear polycarbonate terminal retainer
- Steel nickel plated terminal clamp
- Indoor dry unless protected by additional means
