Panduit® P14-56R-C

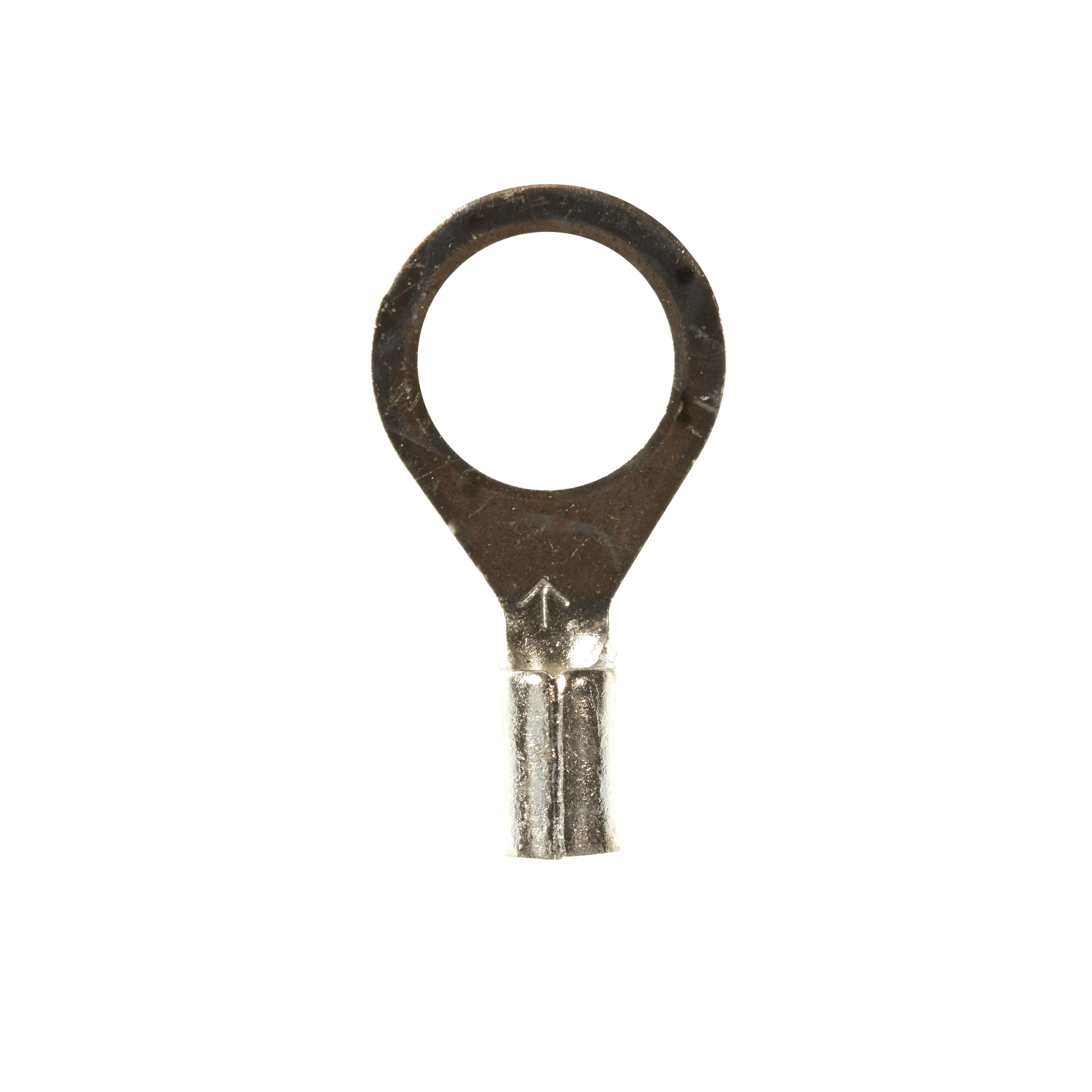

Panduit® Pan-Term™ P14-56R-C Type P-R Non-Insulated Ring Terminal, 14 AWG Conductor, 0.91 in L, Brazed Seam/Internal Serration/Standard Barrel, Copper, Silver
- Manufacturer Name: Panduit
- MPN: P14-56R-C
- Brand Name: Panduit®
- UPC: 074983802241
- FEPN: P14-56R-C PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term™ Ring Terminal, Type P-R Non-Insulated, Solid/Stranded Conductor, 14 AWG Conductor, 5/16 in Stud, 0.91 in Length, Brazed Seam/Internal Serration/Standard Barrel, 0.9 in ID x 0.16 in OD Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 2000 V, Specifications: 0.28 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure, 302 deg F, Copper, Tin Plated, Silver
| Barrel Size | : | 0.9 in ID x 0.16 in OD |
| Conductor Type | : | Solid/Stranded |
| Finish | : | Tin Plated |
| Specifications | : | 0.28 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure |
| Stud Size | : | 5/16 in |
| Temperature Rating | : | 302 deg F |
| Tongue Size | : | 0.46 in W x 0.03 in THK |
| Tongue Type | : | Ring |
| Type | : | Type P-R Non-Insulated |
| Voltage Rating | : | 2000 V |
| Conductor Size | : | 14 AWG |
| Length | : | 0.91 in |
| Barrel Type | : | Brazed Seam/Internal Serration/Standard |
| Material | : | Copper |
| Color | : | Silver |
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Expanded insulation for large wire OD
Full Engineering Drawing
