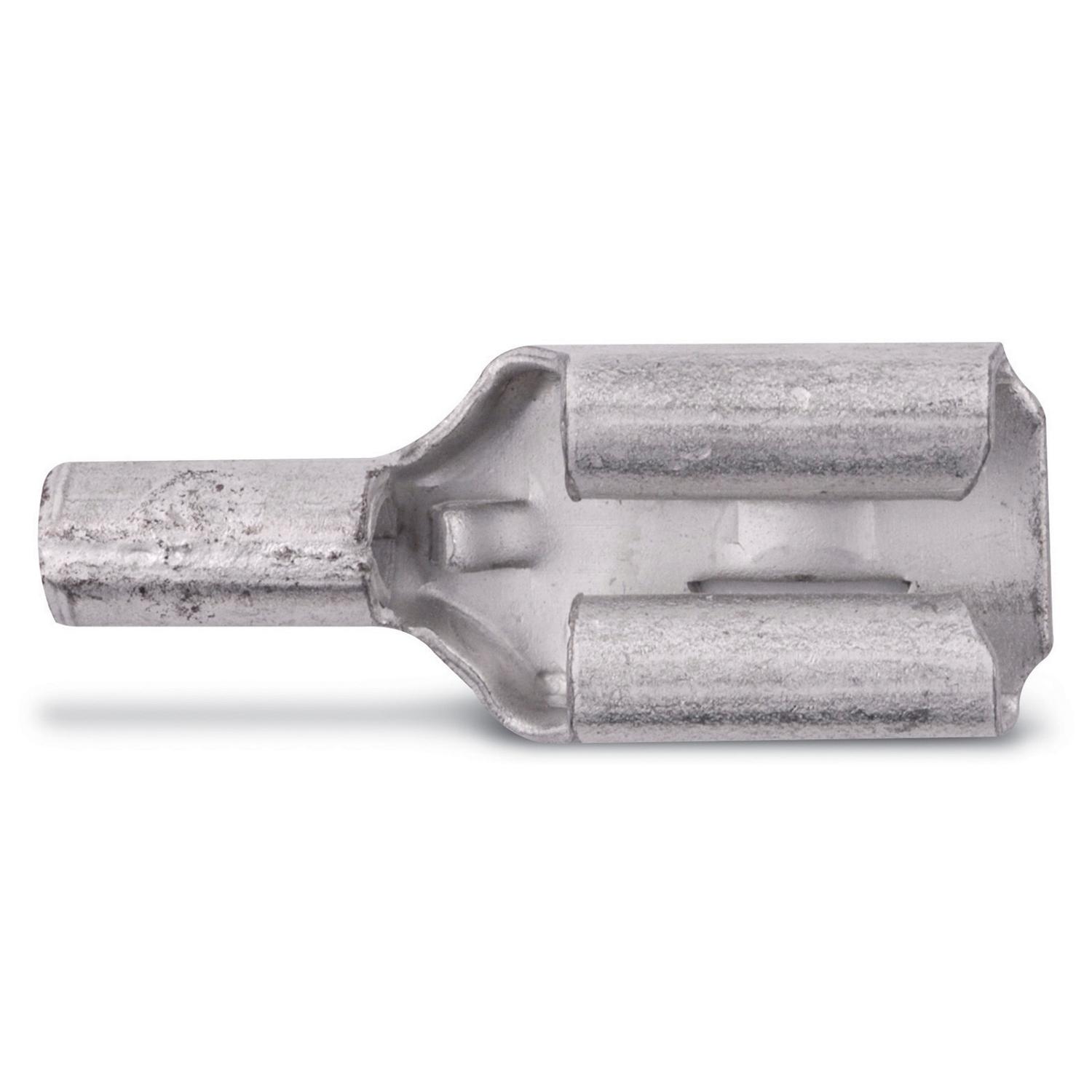

Sta-Kon® B250NP
Spec-Kon® B250NP Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam/Internal Serration Barrel, Copper, Non-Insulated
- Manufacturer Name: ABB
- MPN: B250NP
- Brand Name: Sta-Kon®
- UPC: 786210560144
- FEPN: B250NP TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Spec-Kon® Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam/Internal Serration Barrel, Specifications: 0.31 in W Tongue, Copper, Tin Plated, 0.73 in L x 0.31 in W, Non-Insulated
| Dimensions | : | 0.73 in L x 0.31 in W |
| Finish | : | Tin Plated |
| Specifications | : | 0.31 in W Tongue |
| Conductor Size | : | 16 to 14 AWG |
| Tab Size | : | 0.25 in W x 0.032 in THK |
| Barrel Type | : | Brazed Seam/Internal Serration |
| Material | : | Copper |
| Insulated | : | Non-Insulated |
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Complete line of installing tools, engineered to match tool with terminal
- Unique construction of the female disconnect offers long term dependability
- Brazed seam serrated barrel provides maximum tensile strength
Specification Sheet
