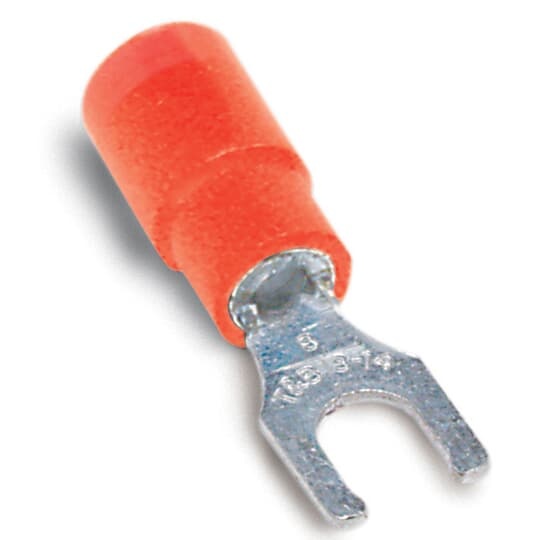

Sta-Kon® 18RA-6FLX
Sta-Kon® 18RA-6FLX RA Series Expanded Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.97 in L, Brazed Seam/Serrated Barrel, Copper, Red
- Manufacturer Name: ABB
- MPN: 18RA-6FLX
- Brand Name: Sta-Kon®
- UPC: 786210806594
- FEPN: 18RA-6FLX TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Sta-Kon® Fork Terminal, Expanded Insulated, Series: RA Series, 22 to 16 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.25 in W x 0.02 in THK Tongue, 600 V AC, Specifications: 0.17 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
| Finish | : | Electroplated Tin |
| Series | : | RA Series |
| Specifications | : | 0.17 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation |
| Stud Size | : | #6 |
| Temperature Rating | : | 105 deg C |
| Tongue Size | : | 0.25 in W x 0.02 in THK |
| Tongue Type | : | Locking Fork |
| Type | : | Expanded Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 22 to 16 AWG |
| Length | : | 0.97 in |
| Barrel Type | : | Brazed Seam/Serrated |
| Material | : | Copper |
| Color | : | Red |
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
