Like our other commercial switches, these reliable performers feature high-strength polycarbonate toggles, single-piece brass alloy contact arms, nylon covers and heavy gauge steel straps to withstand hard use and ensure a long service life. Fast make and positive break action minimizes arcing.

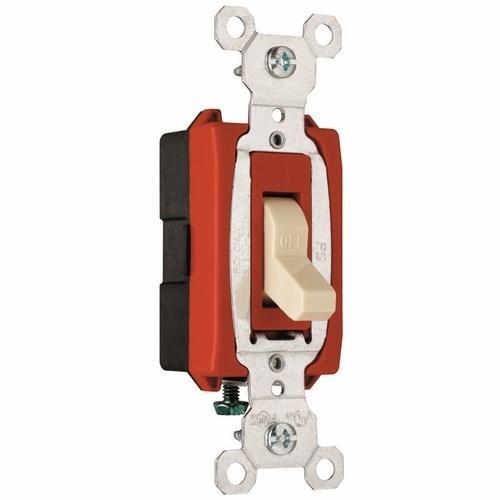

Pass & Seymour® Toggle Switch, Heavy Duty, 120/277 VAC, 20 A, 1/2 hp Power, 1 Pole, Toggle Actuator, Wall Mounting, Side Wire/Screw Terminal, 50000 Cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
| Actuator | : | Toggle |
| Color | : | Ivory |
| Dimensions | : | 3.3 in H x 1.32 in W x 1.073 in D |
| Environmental Conditions | : | -40 to 115 deg C Temperature |
| Material | : | Nylon |
| Mounting | : | Wall |
| Number of Poles | : | 1 |
| Operating Cycles | : | 50000 Cycles |
| Terminal Type | : | Side Wire/Screw |
| Type | : | Heavy Duty |
| Voltage Rating | : | 120/277 VAC |
| Amperage Rating | : | 20 A |
| Power Rating | : | 1/2 hp |
- Oversized silver alloy contacts for long life and better heat dissipation
- Heavy duty, brass alloy, 1-piece contact arm virtually eliminates contact bounce
- Shallow design for ease of installation
- Glass reinforced nylon back body for durability and strength
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life
- Locking support provides resistance to face and back body separation
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 - 10 AWG copper or copper-clad wire
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
