EATON BRL200
Send Print
  1. pin-int

EATON BRL200

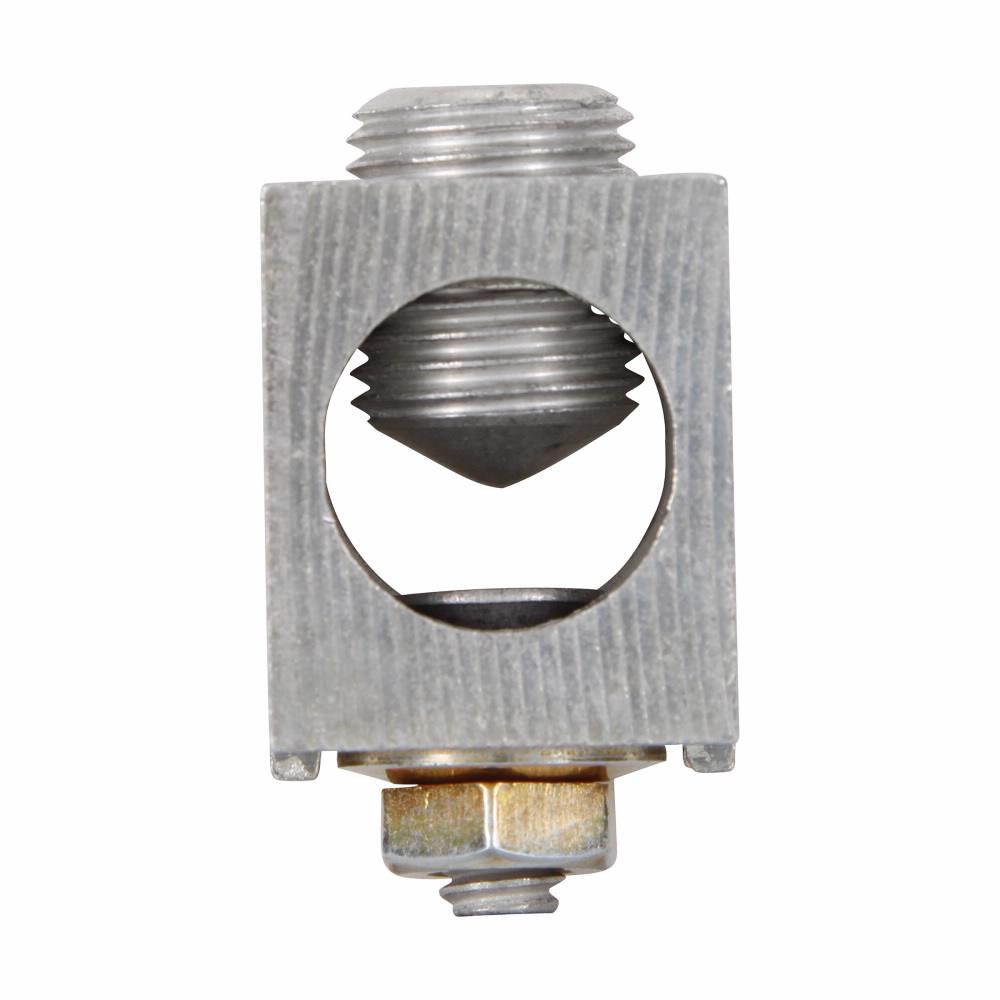

EATON BRL200 Main Lug Kit With Control Power Transformer, 2 Poles, 200 A, For Use With Type BR Loadcenter and Circuit Breaker

  • Manufacturer Name: Eaton
  • MPN: BRL200
  • Brand Name: EATON
  • UPC: 786676460101
  • FEPN: BRL200 EC
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Lug Kit, 2 Pole, 200 A, For Use With: Type BR Loadcenter and Circuit Breaker, 4 in L x 4 in W x 1/2 in H

Dimensions       :      4 in L x 4 in W x 1/2 in H
Number of Poles       :      2
Amperage Rating       :      200 A
Suitable For Use With       :      Type BR Loadcenter and Circuit Breaker
  • Stud mounting
  • 1 AWG to 300 kcmil copper aluminum wire range
  • 60/75 deg C temperature
  • 120/240, 208Y/120, 240 VAC voltage rating
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_BRL200_Specification_Sheet.pdf
  • pdfOwners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CH9MB270_User_Manual.pdf
