Eaton's robust line of XB IEC terminal blocks are designed for prolonged life under harsh conditions. This comprehensive portfolio comes complete with universal accessories across three connection technologies screw, spring cage and insulation displacement connection (IDC) reducing inventory and logistic costs. With space savings in mind, the terminal blocks are small, adjustable and provide maximum flexibility and easy installation.

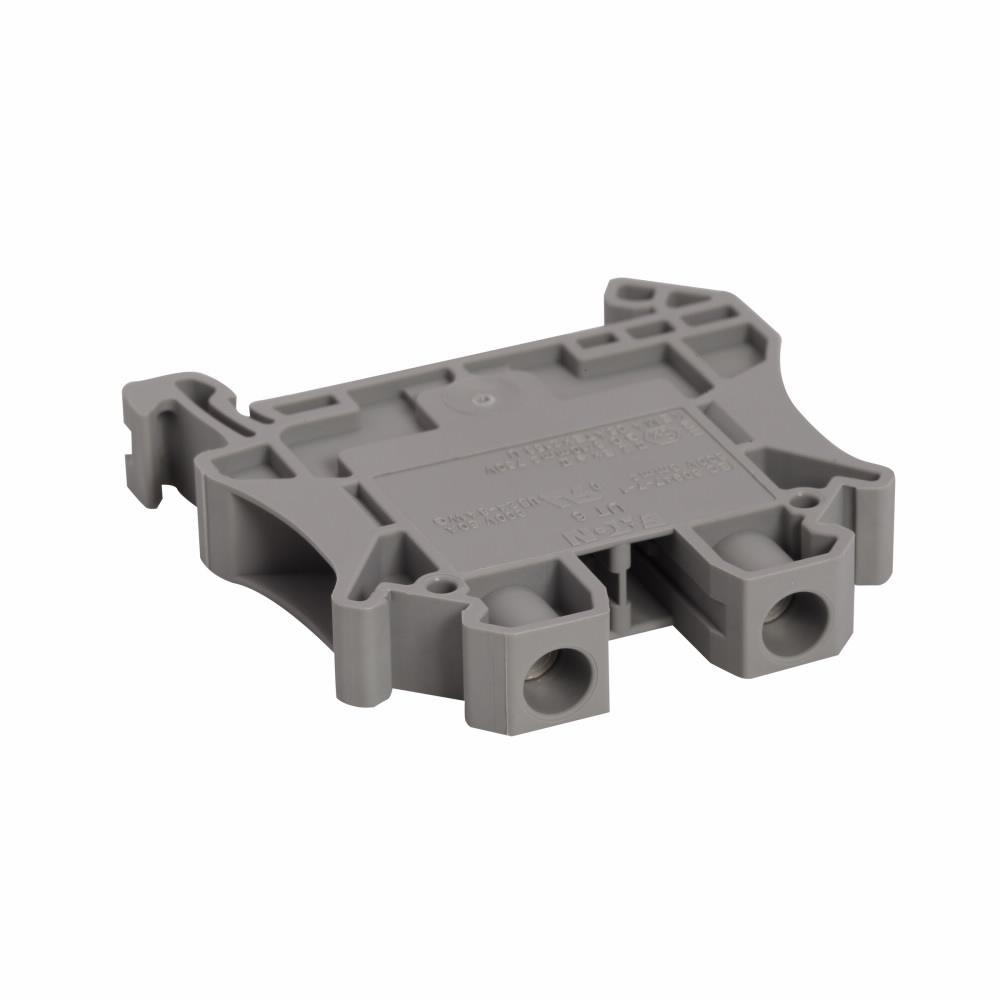

EATON Terminal Block, 1-Level, Series: XB Series, 600/700/800 VAC, 40/50/57 A, 24 to 8 AWG Wire, 0.39 in Wire Strip Length, Feed-Through Terminal, 8.2 mm Spacing, 1.5 to 1.8 N-m, DIN Rail Mount, Screw, -40 to 275 deg F, Polyamide 6.6, Gray, 0.32 in L x 2 in W x 0.25 in H
| Color | : | Gray |
| Connection Type | : | Screw |
| Dimensions | : | 0.32 in L x 2 in W x 0.25 in H |
| Material | : | Polyamide 6.6 |
| Series | : | XB Series |
| Spacing | : | 8.2 mm |
| Temperature Rating | : | -40 to 275 deg F |
| Terminal Type | : | Feed-Through |
| Torque Rating | : | 1.5 to 1.8 N-m |
| Type | : | 1-Level |
| Wire Strip Length | : | 0.39 in |
| Voltage Rating | : | 600/700/800 VAC |
| Amperage Rating | : | 40/50/57 A |
| Wire Size | : | 24 to 8 AWG |
| Mounting Type | : | DIN Rail |
