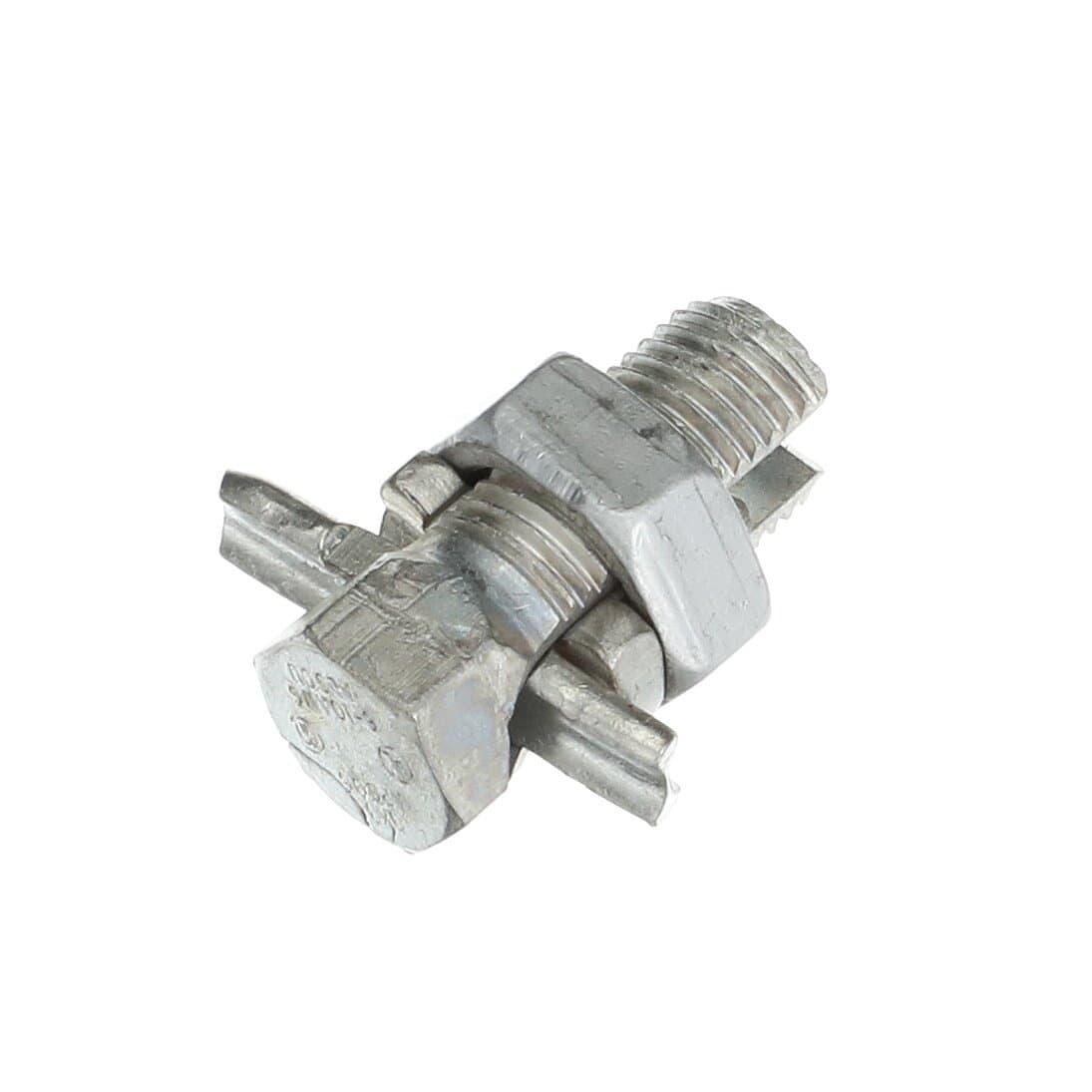

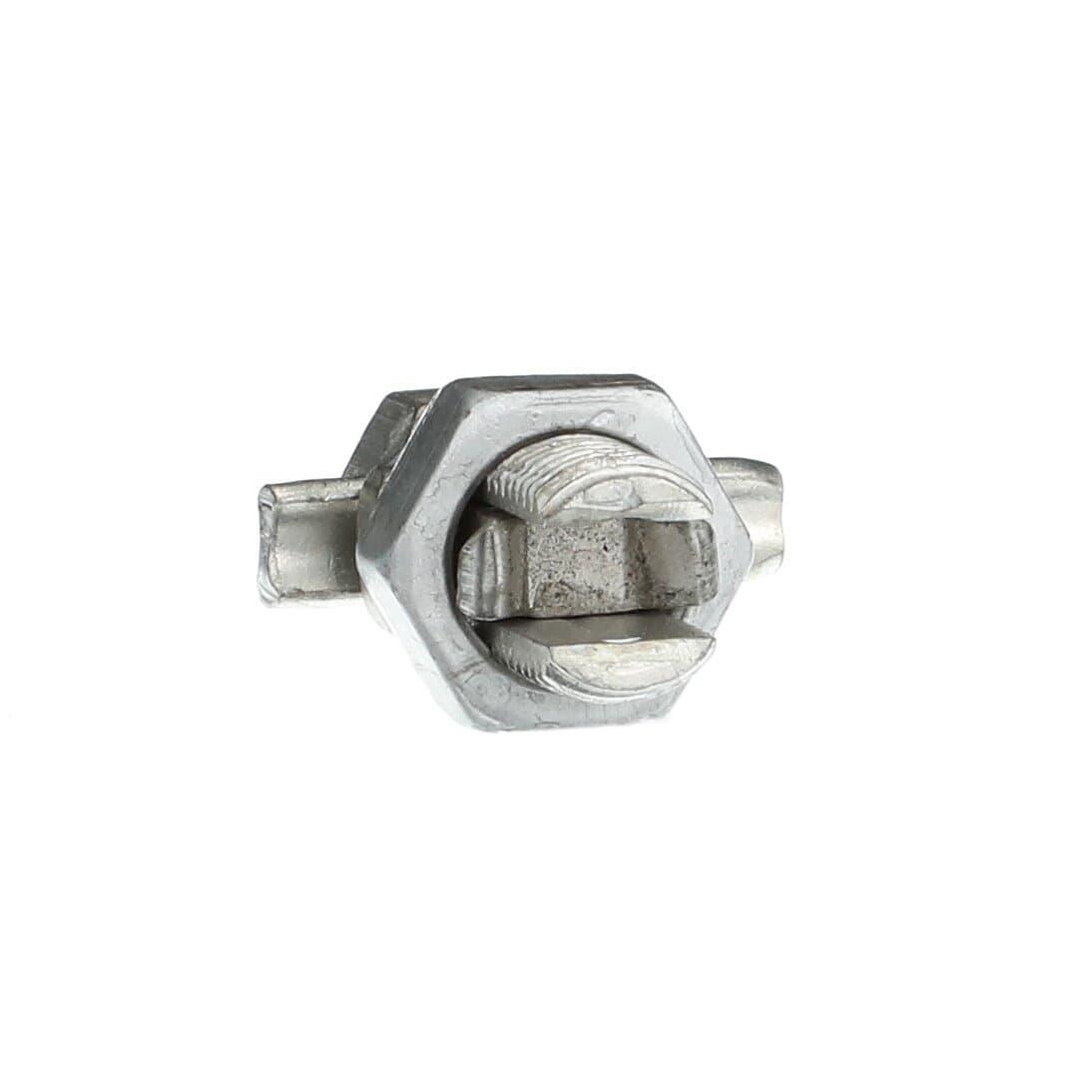

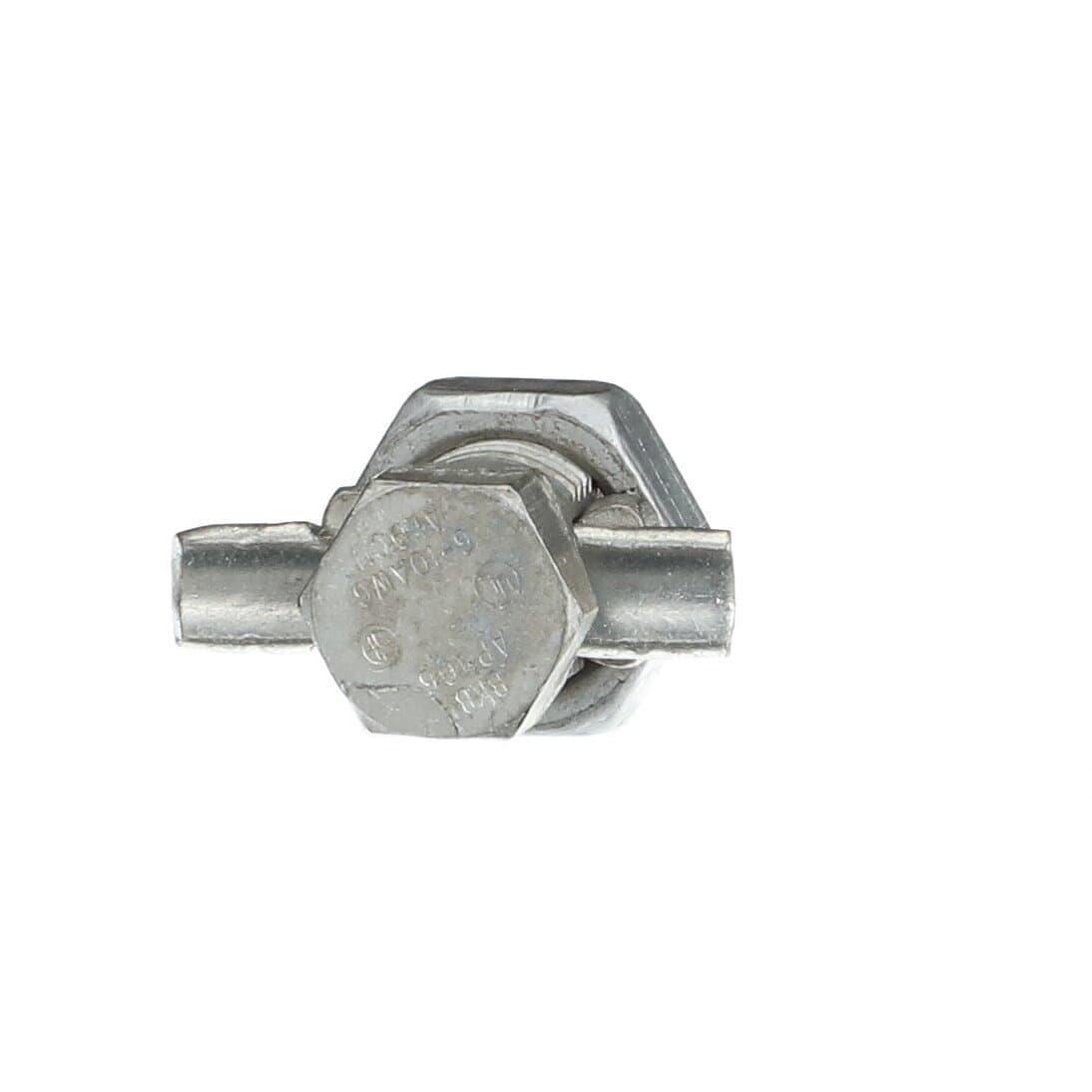

Blackburn® APS06
Blackburn® APS06 Type APS Dual Rated Split Bolt Connector, 10 to 6 AWG Stranded Aluminum/Copper Conductor, 0.5312 x 1.27 in Bolt, Aluminum
- Manufacturer Name: ABB
- MPN: APS06
- Brand Name: Blackburn®
- UPC: 783786201402
- FEPN: APS06 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® APS06 Split Bolt Connector, Type APS Dual Rated, Stranded Aluminum/Copper Conductor, 10 to 6 AWG Conductor, 0.5312 x 1.27 in Bolt, 600 V AC, Specifications: 0.21 in Split, 23/32 in Hex Nut, 1-1/4 in W Space Bar, 90 deg C, Aluminum, Electro-Plated Tin, Metallic
| Color | : | Metallic |
| Finish | : | Electro-Plated Tin |
| Specifications | : | 0.21 in Split, 23/32 in Hex Nut, 1-1/4 in W Space Bar |
| Temperature Rating | : | 90 deg C |
| Type | : | Type APS Dual Rated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 10 to 6 AWG |
| Conductor Type | : | Stranded Aluminum/Copper |
| Bolt Size | : | 0.5312 x 1.27 in |
| Material | : | Aluminum |
- Installs with standard wrenches
- Aluminum dual rated split-bolt connector for use on copper, aluminum conductors
- Tin plated finish provides resistance to corrosion
- 100 Pieces/Pack
Specification Sheet
