Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

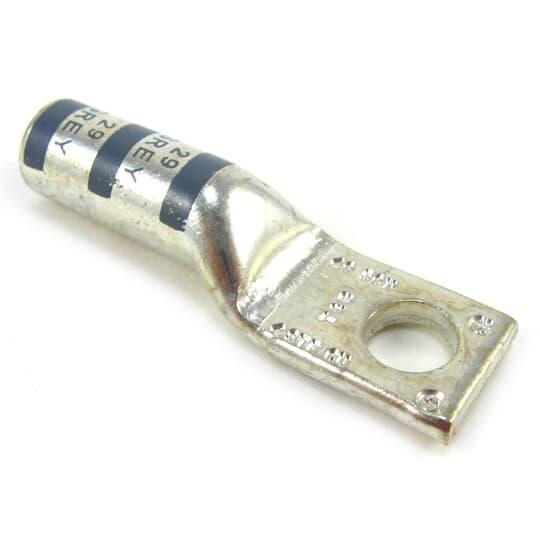

Color-Keyed® Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 4 AWG Conductor, 35 kV, 1/4 in Stud, Straight Tongue, 5/8 in L x 1/2 in W x 3/32 in THK Tongue, 1-11/16 in Overall Length, Long Barrel, 25/32 in L Barrel, Specifications: Tin Plated, Copper, Gray
| Barrel Size | : | 25/32 in L |
| Barrel Type | : | Long |
| Color | : | Gray |
| Overall Length | : | 1-11/16 in |
| Series | : | CTL |
| Specifications | : | Tin Plated |
| Tongue Size | : | 5/8 in L x 1/2 in W x 3/32 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 4 AWG |
| Conductor Type | : | Flexible/Stranded Copper |
| Stud Size | : | 1/4 in |
| Material | : | Copper |
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Heavy duty design which permits additional crimp for added mechanical strength
Specification Sheet
