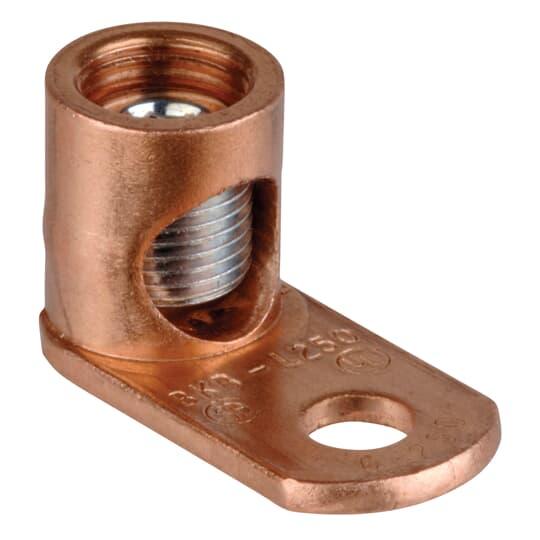

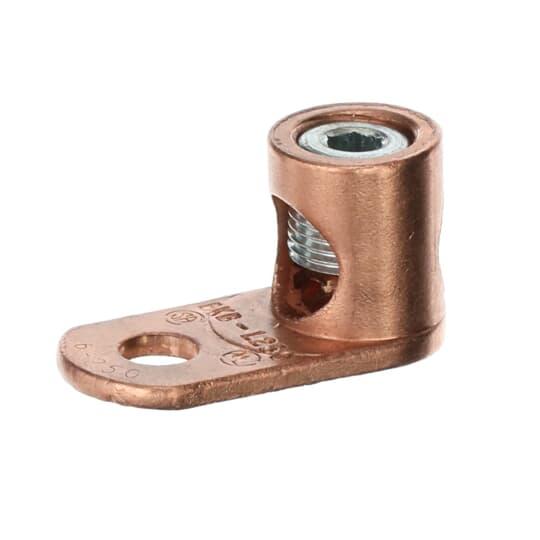

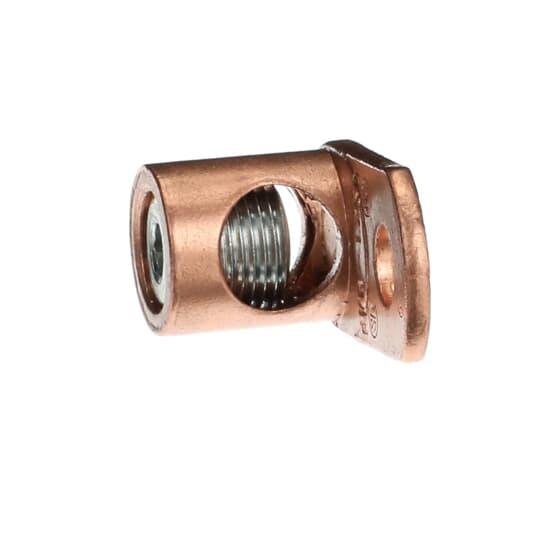

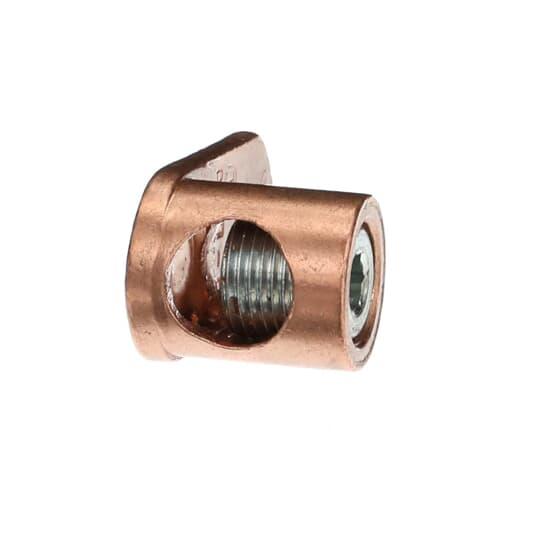

Blackburn® L250
Blackburn® L250 Type L Compact Mechanical Connector, 6 AWG to 250 kcmil Stranded Copper Conductor, 13/32 in Stud, 1 Bolt Holes, Copper
- Manufacturer Name: ABB
- MPN: L250
- Brand Name: Blackburn®
- UPC: 783786130047
- FEPN: L250 TB
- Min Order Qty: 1
- Quantity Interval: 10
-
Inventory Availability
-
Retail Price:
Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.
Blackburn® L250 Mechanical Connector, Type L Compact, Stranded Copper Conductor, 6 AWG to 250 kcmil Conductor, 13/32 in Stud, 1 Bolt Holes, 1-3/32in L x 15/16 in W x 1/8 in THK Tongue, Straight Tongue, Specifications: 1-Conductor, Socket, Allen Head Screw, Copper, 1-61/64 in L x 15/16 in W x 1-1/16 in H Dimensions
| Dimensions | : | 1-61/64 in L x 15/16 in W x 1-1/16 in H |
| Specifications | : | 1-Conductor, Socket, Allen Head Screw |
| Tongue Size | : | 1-3/32in L x 15/16 in W x 1/8 in THK |
| Tongue Type | : | Straight |
| Type | : | Type L Compact |
| Conductor Size | : | 6 AWG to 250 kcmil |
| Conductor Type | : | Stranded Copper |
| Stud Size | : | 13/32 in |
| Number of Bolt Holes | : | 1 |
| Material | : | Copper |
- Cold forged from pure electrolytic copper with 99 percent conductivity
- 1-piece construction for strength and durability
- Excellent for confined quarters
- Steel plated screw
- 1 stud of 13/32 in
