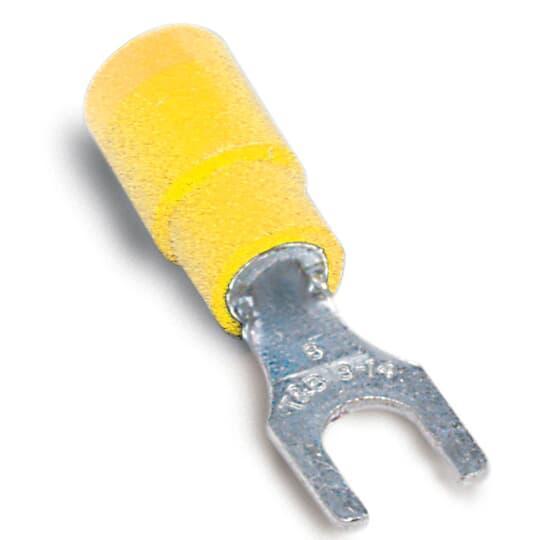

Sta-Kon® Fork Terminal, 12 to 10 AWG Conductor, #8 Stud, 1.11 in Length, Brazed Seam Barrel, 0.38 in W Tongue, 600 V, 1/4 in Maximum Insulation, 105 deg C, Copper, TiN Coated
| Finish | : | TiN Coated |
| Specifications | : | 1/4 in Maximum Insulation |
| Stud Size | : | #8 |
| Temperature Rating | : | 105 deg C |
| Tongue Size | : | 0.38 in W |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 12 to 10 AWG |
| Length | : | 1.11 in |
| Barrel Type | : | Brazed Seam |
| Material | : | Copper |
- Fork terminals allow easy installation since the mounting screw does not have to be completely removed
- These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation
- Yellow vinyl insulated
Specification Sheet
