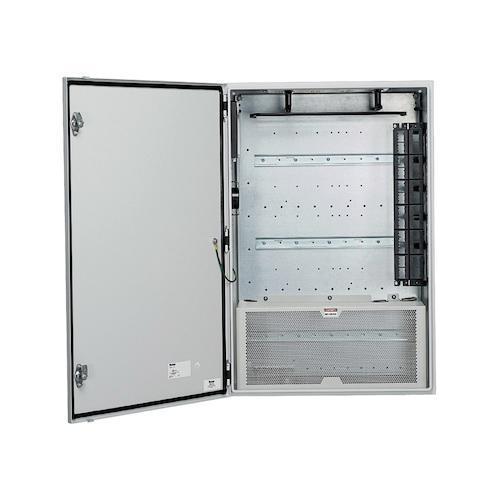

Panduit® Z23C-S
Panduit® Z23C-S Pre-Configured Network Zone System Enclosure, 24 in W x 11.6 in D x 36 in H, NEMA 4/12/IP66 NEMA Rating, Mild Steel
- Manufacturer Name: Panduit
- MPN: Z23C-S
- Brand Name: Panduit®
- UPC: 074983259304
- FEPN: Z23C-S PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit®, Z23C-S, Network Zone System Enclosure, Pre-Configured, 24 in Width, 11.6 in Depth, 36 in Height, NEMA 4/12/IP66 NEMA Rating, Wall Mounting, 140 deg F, Mild Steel, Powder Coated, Gray
| Color | : | Gray |
| Finish | : | Powder Coated |
| Mounting Type | : | Wall |
| Temperature Rating | : | 140 deg F |
| Type | : | Pre-Configured |
| Width | : | 24 in |
| Depth | : | 11.6 in |
| NEMA Rating | : | NEMA 4/12/IP66 |
| Material | : | Mild Steel |
- Reduces time required for planning, designing, procurement and installation resulting in 25% faster implementation
- Enables troubleshooting of network connections and verification of field terminations
- Defined equipment locations and cable routings incorporate Panduit® developed best practices in connectivity, cable management, wiring and grounding in a secure enclosure to ensure network reliability
- Segregates higher line voltage from lower voltage switch for increased safety
- Ensure path to ground to protect personnel and equipment
- Allows quick and easy access to machine ingress points into enclosure
- Mounting flexibility bolt-in place flange mounting for NEMA applications optional direct mount through back wall installation maintains NEMA rating when supplied sealing washer is used reversible door for left or right hand opening
- Detailed installation guide provides easy, repeatable design instructions assuring consistency and saving time on the jobsite
- Fully pre-configured industrial automation zone enclosure with pre-configured backplane, cable management and high voltage isolation barrier
- For up to two Stratix 8000 or Cisco IE3000 series industrial switches with expansion modules, UPS and power supplies
- 14 ga cold rolled steel enclosure and 14 ga galvannealed steel back panel
- Thermally and spatially validated enclosure designed for use of active equipment to 140 deg F operating temperatures
- Network flexibility - Allows the designer of the Ethernet/IP topology to locate industrial switches within the work zones
- Consistent defined deployments - the standardized pre-configured equipment and accessory layout assures successive deployments are of a consistent and repeatable design
- Security Utilizes 1/4 turn latches with 3mm double bit
- Safety - isolation barrier allow segregation of line voltage equipment and lower voltage switches
- Grounding enclosure includes bonding provisions on body, door, back plate, and grounding bar (provided in larger sizes)
