Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor. These adjustable bimetallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. They also feature a full line of snap-on accessories common to both IEC and NEMA devices.

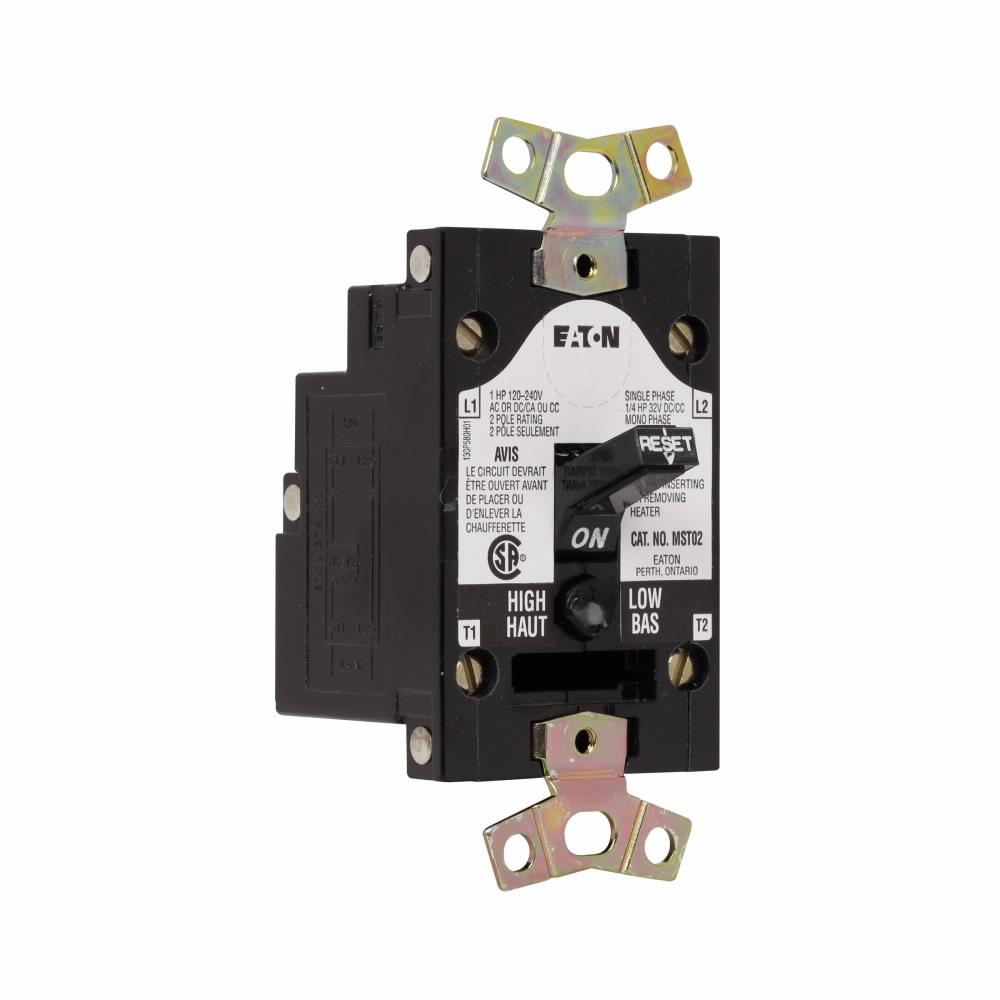

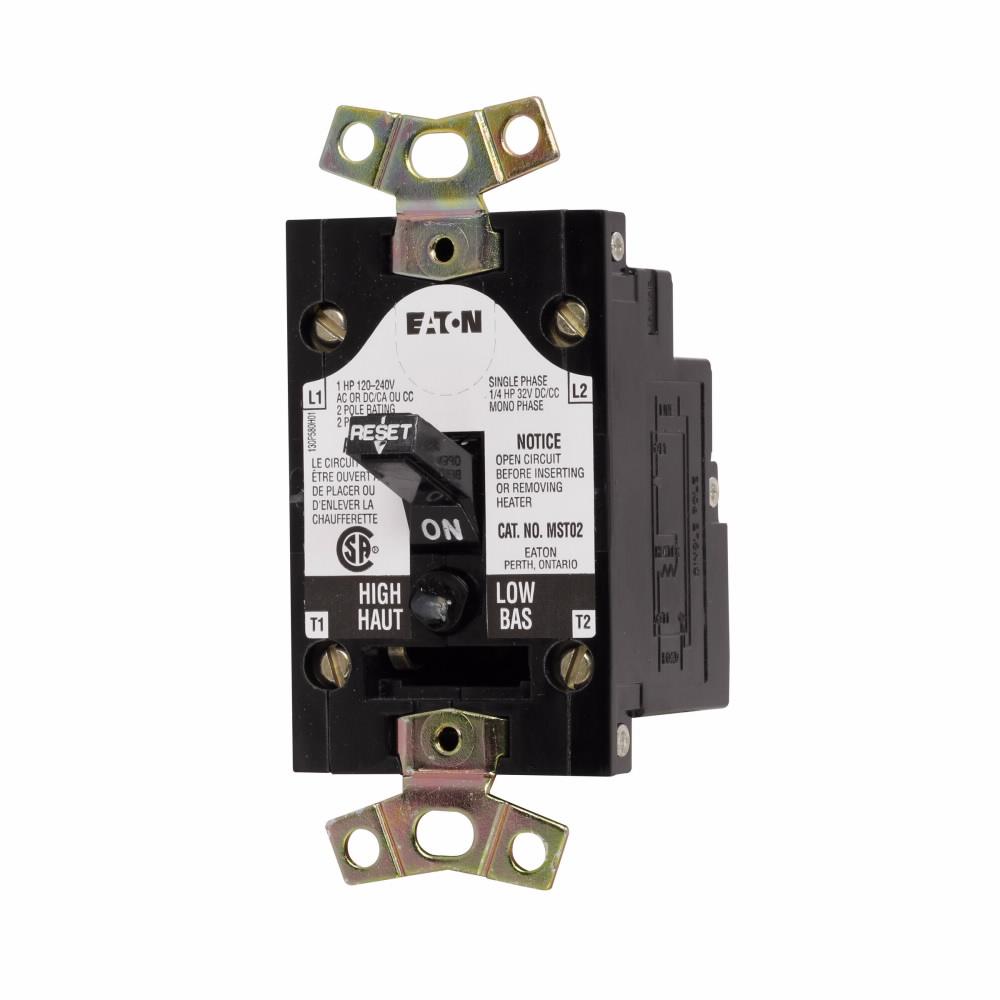

EATON Manual Starter, Series: MS Series, 120/277 VAC, 32 VDC, 1/4 hp, 1 hp Motor, 2 Pole, 1, Interchangeable Overload Relay, Open
| Motor Power | : | 1/4 hp, 1 hp |
| Overload Relay | : | Interchangeable |
| Phase | : | 1 |
| Series | : | MS Series |
| Voltage Rating | : | 120 to 277 VAC/32 VDC |
| Number of Poles | : | 2 |
| Enclosure Type | : | Open |
- The MS motor starter is a compact, versatile unit featuring heavy sliding contacts as well as "quick make" and "quick break" mechanism
- Standard with large pressure type terminals, straight-through wiring and a trip-free handle mechanism
- The "plug-in" heater element is keyed to ensure proper positioning and an adjustable knob allows a setting of plus or minus ten percent of the nominal heater rating
- Compact size
- Trip free handle mechanism
- Keyed heater elements to ensure proper installation
- The operating handle of the enclosed units can be locked in the off position
Specification Sheet
