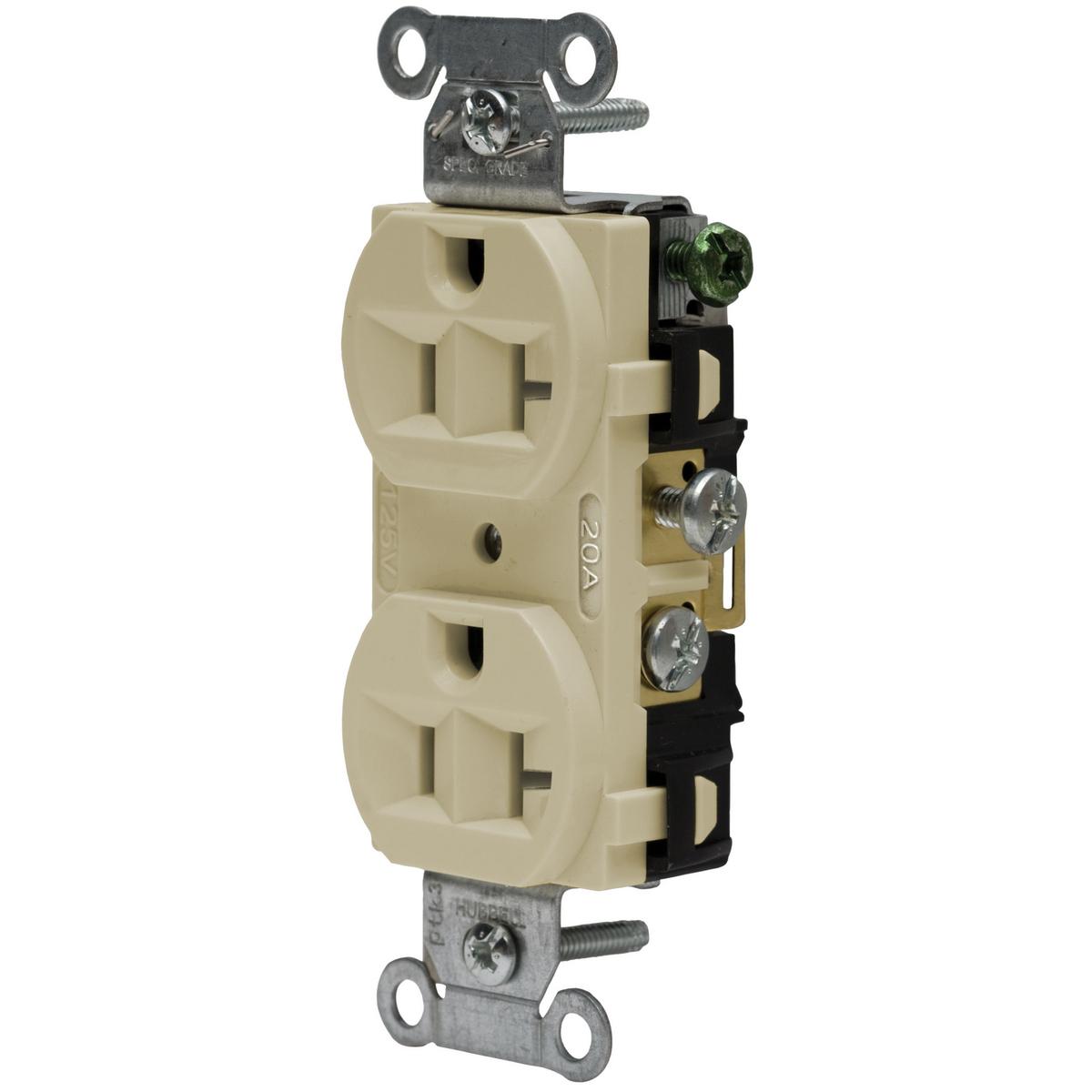

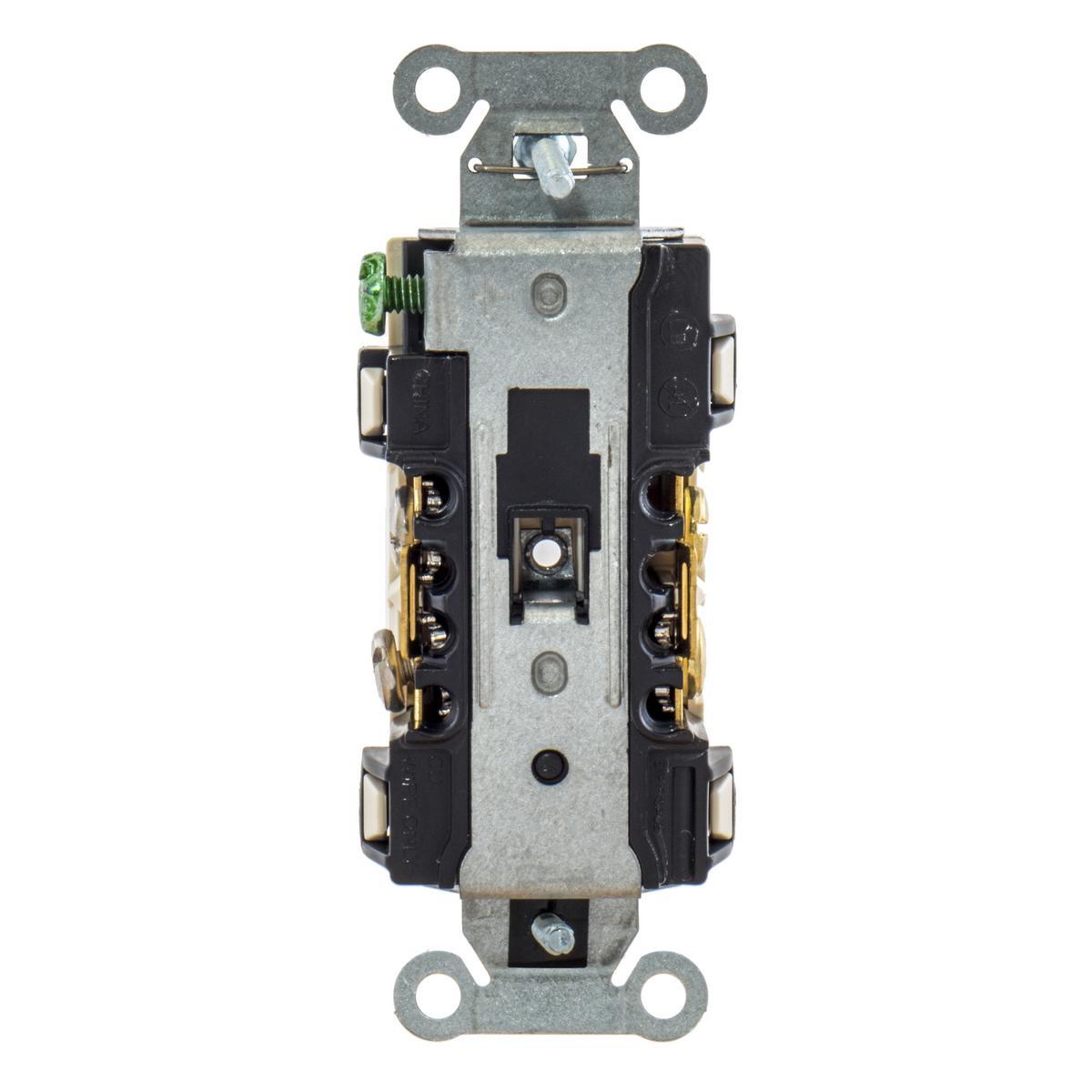

Wiring Device-Kellems CR20I
Wiring Device-Kellems CR20I 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
- Manufacturer Name: Hubbell
- MPN: CR20I
- Brand Name: Wiring Device-Kellems
- UPC: 783585900155
- FEPN: CR20I HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Ivory, 1.32 x 0.83 x 3.28 in
| Dimensions | : | 1.32 x 0.83 x 3.28 in |
| Grade | : | Commercial/Specification |
| Horsepower | : | 1 hp |
| Material | : | Nylon |
| NEMA Rating | : | 5-20R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Side Wired |
| Type | : | 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Ivory |
- Easy access split circuit tab
- Fork terminal capable
- Smooth face
- Triple wipe contacts
Line Drawing
