The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.

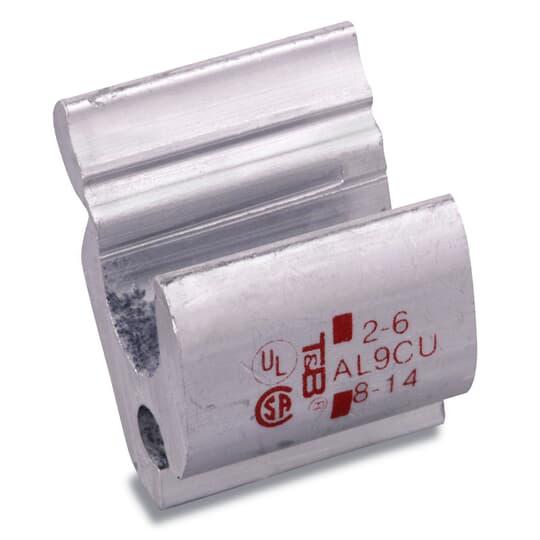

Color-Keyed® Compression H-Tap Connector, H Shape, 2 to 2/0 AWG Main/Run, 6 to 1/0 AWG Tap, 600 V AC, Solid/Stranded Aluminum/Copper Conductor, Specifications: Green, O Die Code, 90 deg C, Aluminum, 1-1/2 in L
| Conductor Type | : | Solid/Stranded Aluminum/Copper |
| Dimensions | : | 1-1/2 in L |
| Specifications | : | Green, O Die Code |
| Temperature Rating | : | 90 deg C |
| Voltage Rating | : | 600 V AC |
| Shape | : | H |
| Main/Run Size | : | 2 to 2/0 AWG |
| Tap Size | : | 6 to 1/0 AWG |
| Material | : | Aluminum |
- Fillerlok tab provides positive interlock and extends wire range
- Wire Bore coated with T&B oxide inhibitor
- Recommended for aluminum to aluminum, aluminum to copper and copper to copper connectors
- Suitable for use with TBM15I tool
