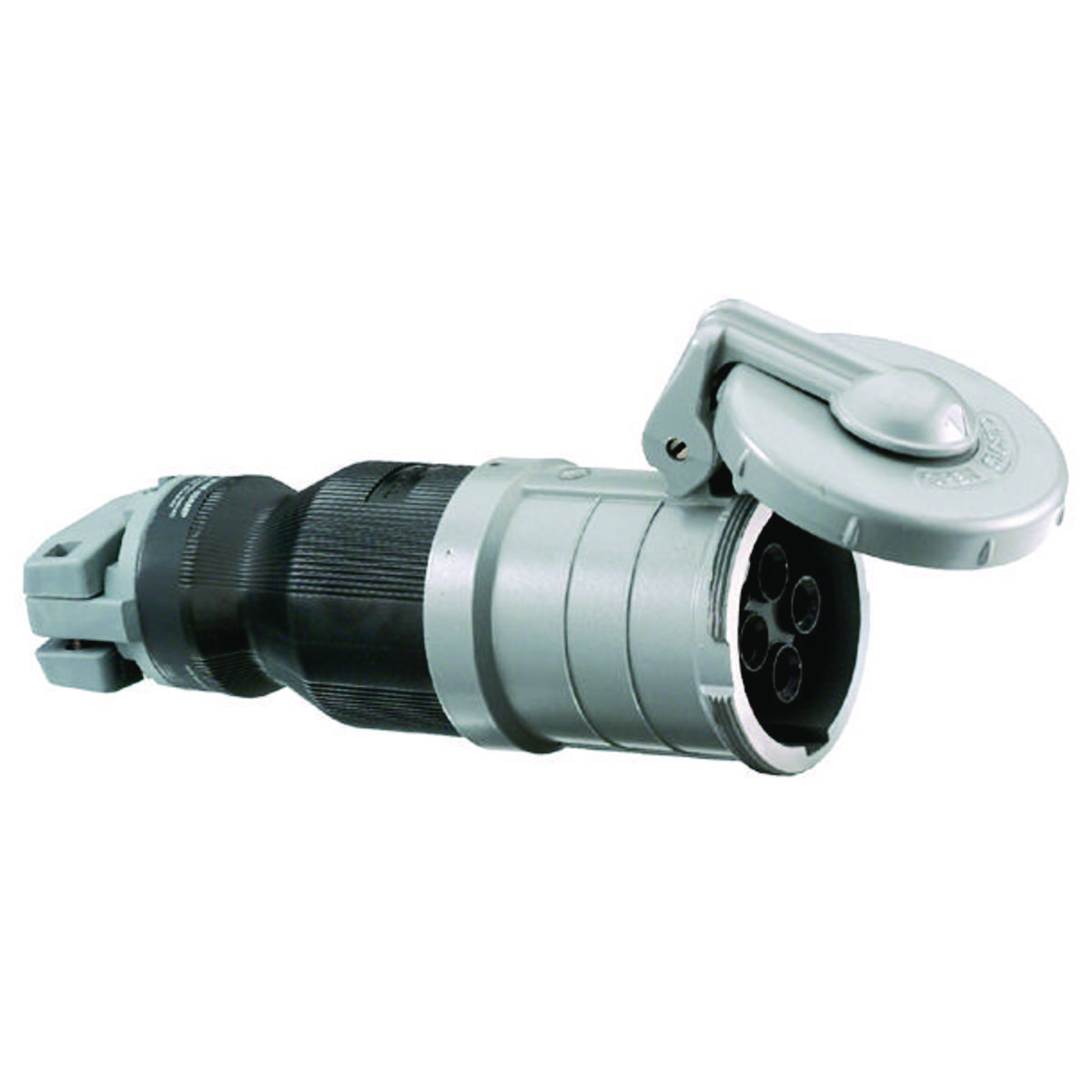

Wiring Device-Kellems HBL460CS2W
Wiring Device-Kellems HBL460CS2W Female Insulated Watertight Cord Mount Pin and Sleeve Connector, 600 VAC/250 VDC, 60 A, 3 Poles, 4 Wires, Black/Gray
- Manufacturer Name: Hubbell
- MPN: HBL460CS2W
- Brand Name: Wiring Device-Kellems
- UPC: 783585010625
- FEPN: HBL460CS2W HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Pin and Sleeve Connector, Female Insulated Watertight Cord Mount, 600 VAC/250 VDC, 60 A, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3.8 in Dia x 10.1 in L
| Dimensions | : | 3.8 in Dia x 10.1 in L |
| Material | : | Composite |
| NEMA Rating | : | 3/4/4X |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Female Insulated Watertight Cord Mount |
| Voltage Rating | : | 600 VAC/250 VDC |
| Amperage Rating | : | 60 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black/Gray |
- Beryllium copper spring maintains high unit pressure on mating sleeves
- Spring loaded gasket cover provides 4X seal while the device is not in use
- Pin chamber confines arcing within the interior chamber
- Neoprene gaskets and glands
- Nickel plated brass clamp nut
- Rynite® SST35 cord clamps
- Epoxy painted aluminum connector shroud
