Panduit® PLT4S-M109

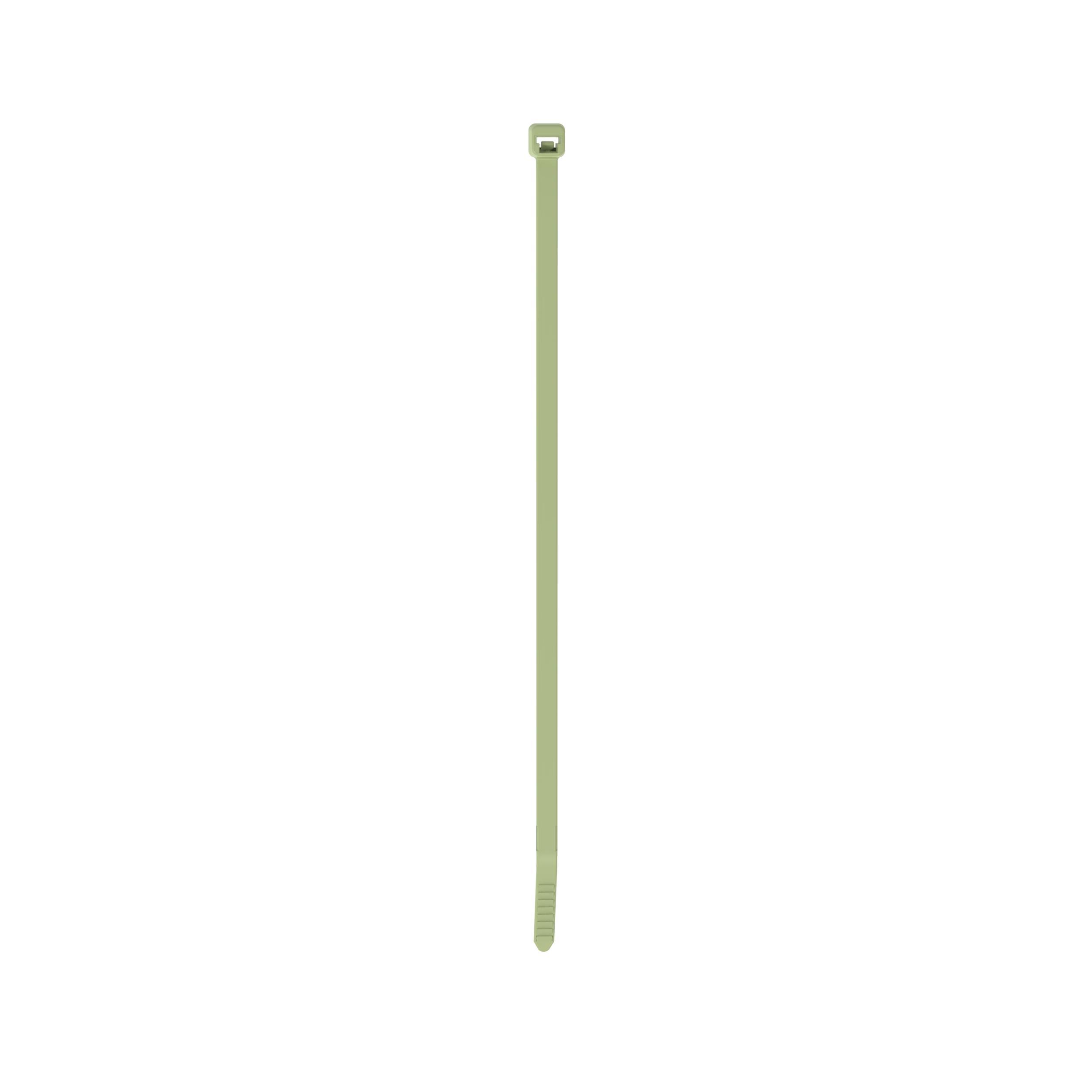

Panduit® Pan-Ty® PLT4S-M109 PLT Standard Cross Section Cable Tie, 14.5 in L x 0.19 in W x 0.052 in THK, Polypropylene, Green
- Manufacturer Name: Panduit
- MPN: PLT4S-M109
- Brand Name: Panduit®
- UPC: 074983548392
- FEPN: PLT4S-M109 PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Ty®, PLT4S-M109, Cable Tie, Standard Cross Section, Series: PLT, 14.5 in Length, 0.19 in Width, 0.052 in Thickness, 4 in Diameter Bundle, Lock Mechanism: Locking, 133 N Tensile Strength, -76 to 239 deg F, Polypropylene, Green
| Bundle Diameter | : | 4 in |
| Lock Mechanism | : | Locking |
| Series | : | PLT |
| Temperature Rating | : | -76 to 239 deg F |
| Tensile Strength | : | 133 N |
| Type | : | Standard Cross Section |
| Length | : | 14.5 in |
| Width | : | 0.19 in |
| Thickness | : | 0.052 in |
| Material | : | Polypropylene |
| Color | : | Green |
- One-piece locking wedge for consistent performance and reliability
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
- For chemical resistance where high loop tensile strength is not required especially in the presence of hydrochloric acid, salts and bases
- Material requires lowering the tool setting
- Lowest threading force of any 1-piece cable tie in the industry
