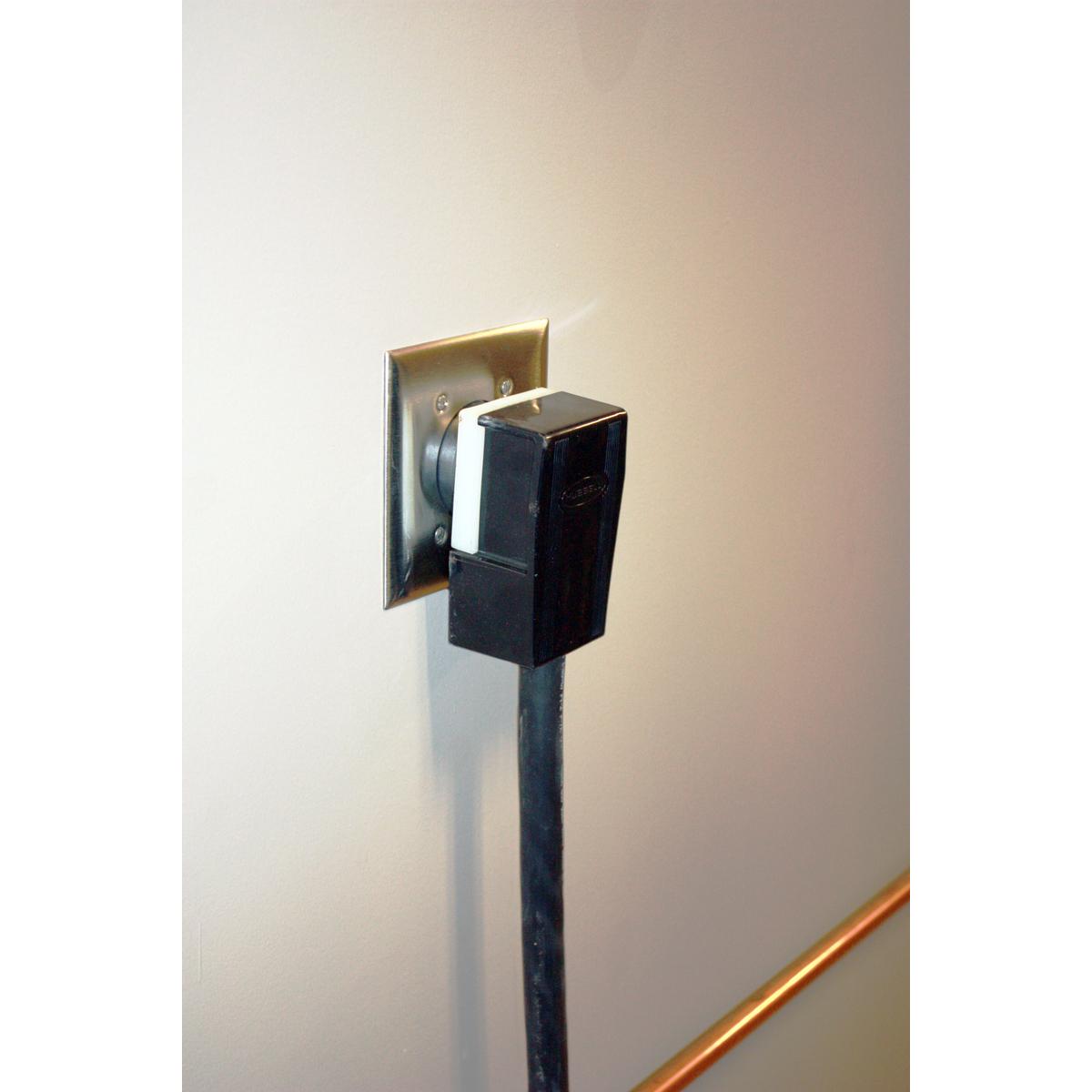

Wiring Device-Kellems HBL9331
Wiring Device-Kellems Insulgrip® HBL9331 1-Phase Grounding Male Standard Cord Mount Straight Blade Plug, 250 VAC, 30 A, 2 Poles, 3 Wires, Black
- Manufacturer Name: Hubbell
- MPN: HBL9331
- Brand Name: Wiring Device-Kellems
- UPC: 783585015248
- FEPN: HBL9331 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase Grounding Male Standard Cord Mount, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, 6-30P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.187 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Thermoplastic/Composite, Black, 4.34 x 2.75 x 1.88 in
| Cord Diameter | : | 0.625 to 1.187 in |
| Dimensions | : | 4.34 x 2.75 x 1.88 in |
| Enclosure | : | IP20 |
| Grade | : | Commercial/Industrial |
| Horsepower | : | 2 hp |
| Material | : | Thermoplastic/Composite |
| NEMA Rating | : | 6-30P |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Grounding Male Standard Cord Mount |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black |
- Reinforced thermoplastic polyester blade holder
- Reinforced thermoplastic polyester retainer
- Reinforced thermoplastic polyester cord clamp
- 0.06 in brass contact blades
- 0.078 in brass ground contact blade
- Steel zinc plated terminal screw
- Plated steel ground screw material
- Brass box terminals
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green)
- 12 to 4 AWG solid or stranded copper conductor terminal accommodation
- Ratings are a permanent part of the device product identification
