The EATON XT series contactors and starters includes non-reversing and reversing contactors overload relays and a variety of related accessories. Because XT series meets IEC, UL, CSA and CE standards, it is the perfect product solution for IEC applications all over the world. The compact, space-saving and easy to install XT line of IEC contactors and starters is the efficient and effective solution for customer applications from 7 to 2450 A.

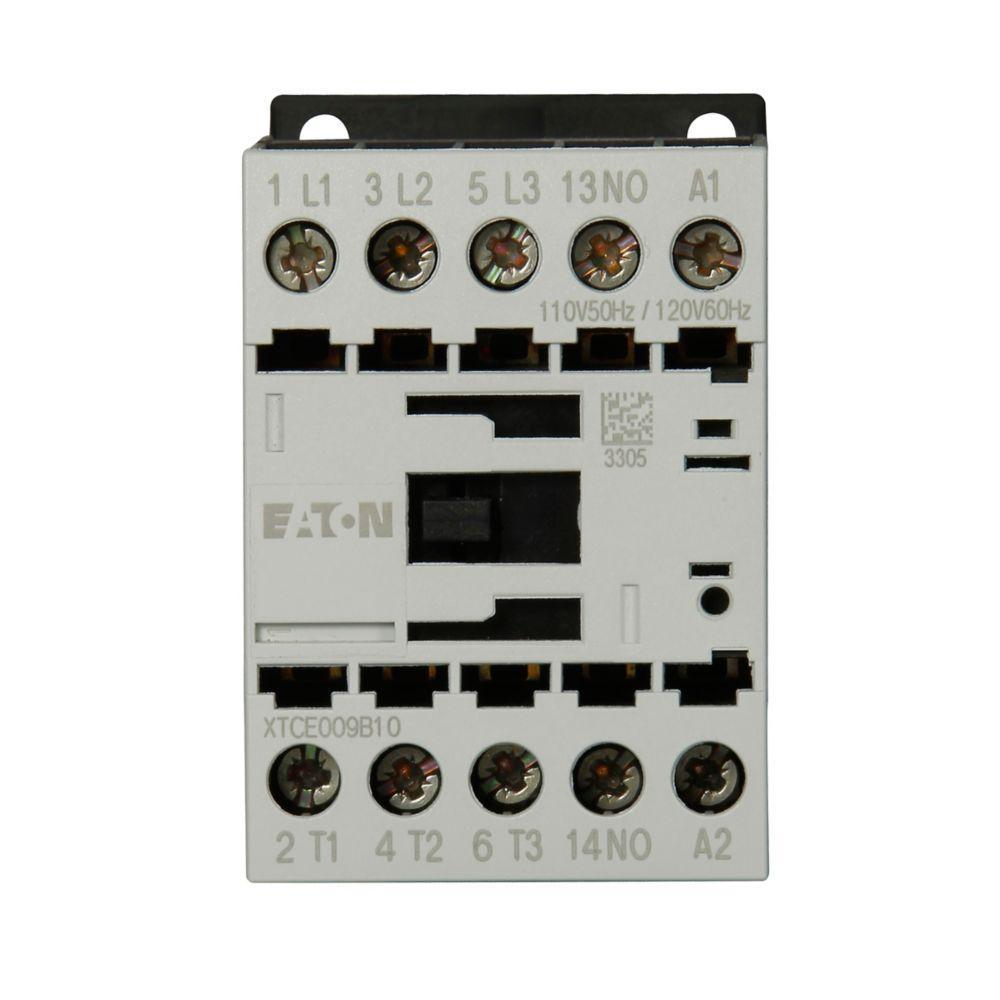

EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 110/120 VAC Coil, 9 A Maximum Load Current, 1/2 hp at 115 VAC 1 ph, 1 hp at 200 VAC 1 ph, 1-1/4 hp at 230 VAC 1 ph, 3 hp at 200/230 VAC 3 ph, 5 hp at 460 VAC 3 ph, 7-1/2 hp at 575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 45 mm Size, Screw Terminal, -13 to 122 deg F Operating
| Coil Power Rating | : | 1/2 hp at 115 VAC 1 ph, 1 hp at 200 VAC 1 ph, 1-1/4 hp at 230 VAC 1 ph, 3 hp at 200/230 VAC 3 ph, 5 hp at 460 VAC 3 ph, 7-1/2 hp at 575 VAC 3 ph |
| Frequency Rating | : | 50/60 Hz |
| Operating Temperature | : | -13 to 122 deg F |
| Series | : | XT Series |
| Size | : | 45 mm |
| Terminal Type | : | Screw |
| Type | : | Full Voltage Non-Reversing |
| Coil Voltage | : | 110/120 VAC |
| Maximum Load Current | : | 9 A |
| Contact Configuration | : | 1NO |
| Number of Poles | : | 3 |
- IP20 finger and back of hand proof
