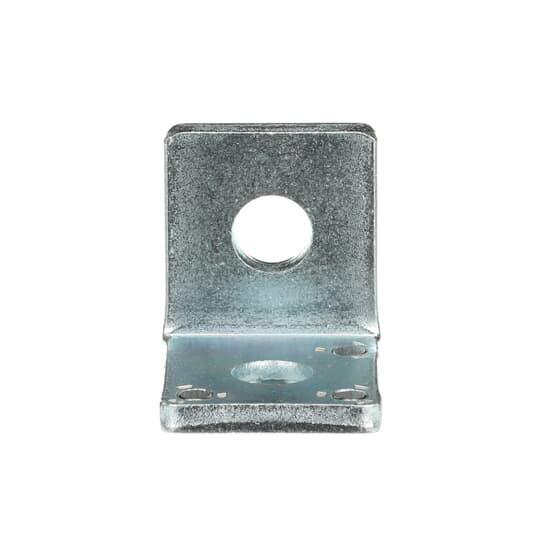

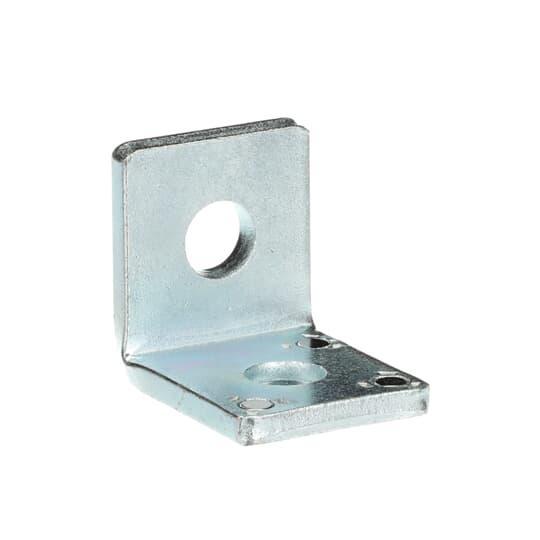

Superstrut® Fitting, 90 deg, Series: 200, 2 in Length, 1-5/8 in W, 1/4 in Thickness, 9/16 in, 13/16 in End/1-7/8 in Center Hole Spacing, Steel, SilverGalv®/Electro-Galvanized
| Finish | : | SilverGalv®/Electro-Galvanized |
| Hole Size | : | 9/16 in |
| Hole Spacing | : | 13/16 in End/1-7/8 in Center |
| Series | : | 200 |
| Suitable For Use With | : | Metal Framing System |
| Type | : | 90 deg |
| Length | : | 2 in |
| Width | : | 1-5/8 in |
| Thickness | : | 1/4 in |
| Material | : | Steel |
- Adds convenience and safety to strut assembly by eliminating the need to manually hold fittings and strut together while installing bolts, nuts and rods
- Features neodymium (NdFeB) grade N35 nickel plated magnets
- SuperMag® fittings support at least 2X their own weight
- Magnets hold in vertical and horizontal orientations
- Magnets are staked in place for dual sided use
- Industrial maintenance and repair operations (MRO)
- Commercial building retrofits
