Panduit® PV10-8F-D

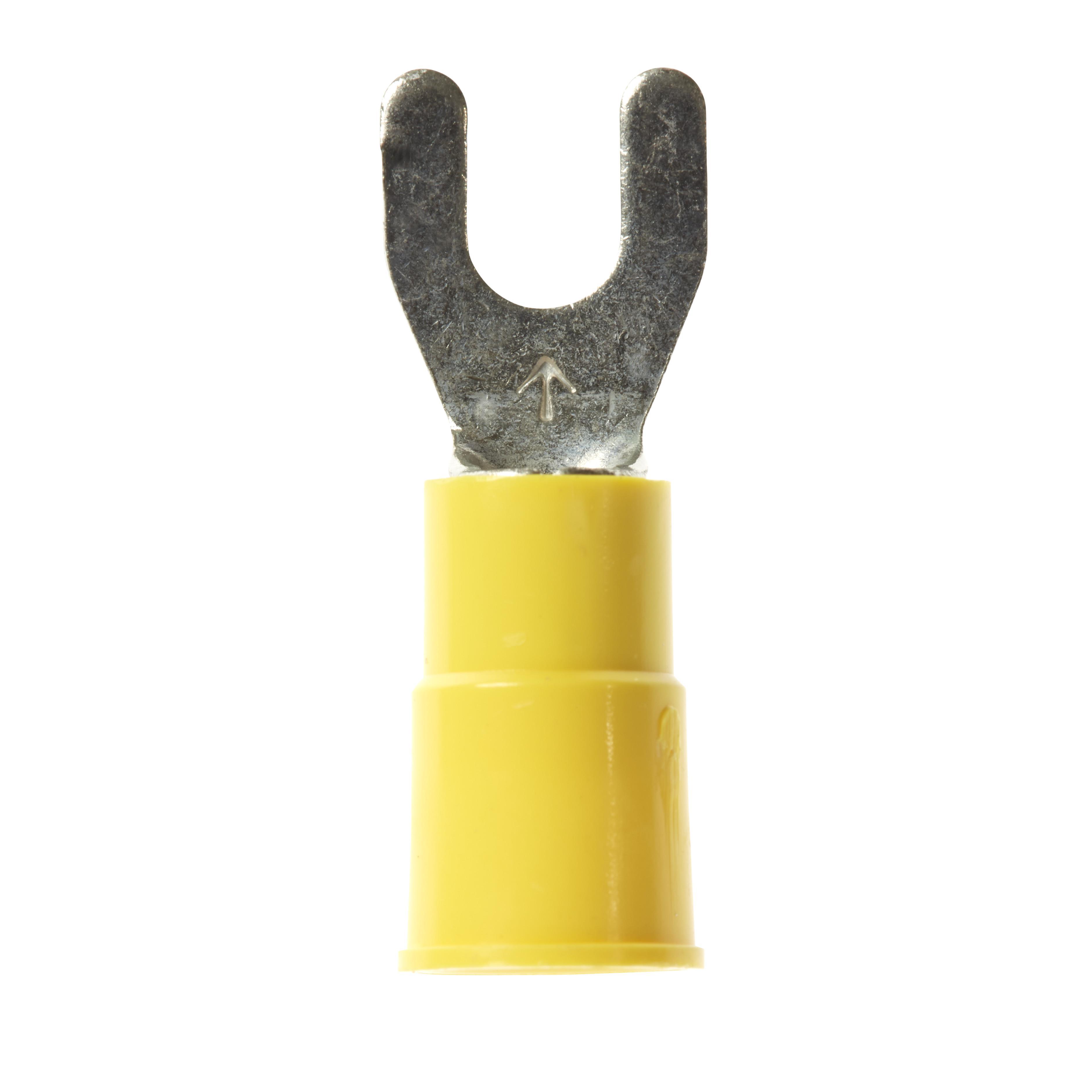

Panduit® Pan-Term® PV10-8F-D Loose Piece Fork Terminal, #10 Conductor, 1.04 in L, Brazed Seam/Funnel Entry Barrel, Copper, Yellow
- Manufacturer Name: Panduit
- MPN: PV10-8F-D
- Brand Name: Panduit®
- UPC: 074983804139
- FEPN: PV10-8F-D PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PV-F, Copper Stranded Conductor, #10 Conductor, #8 Stud, 1.04 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 1/4 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
| Conductor Type | : | Copper Stranded |
| Finish | : | Tin Plated |
| Series | : | PV-F |
| Specifications | : | 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 1/4 in Clearance, Fork Shape Enclosure |
| Stud Size | : | #8 |
| Temperature Rating | : | 221 deg F |
| Tongue Size | : | 0.37 in W x 0.04 in THK |
| Tongue Type | : | Fork |
| Type | : | Loose Piece |
| Voltage Rating | : | 600 V |
| Conductor Size | : | #10 |
| Length | : | 1.04 in |
| Barrel Type | : | Brazed Seam/Funnel Entry |
| Material | : | Copper |
| Color | : | Yellow |
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Locks in place for secure connection
- Flange design provides extra secure connection on a variety of applications
