Superstrut® with a full compliment of fittings, hardware and accessories to complete any metal framing job, is the only system of its kind to provide multiple finishes for total corrosion protection.

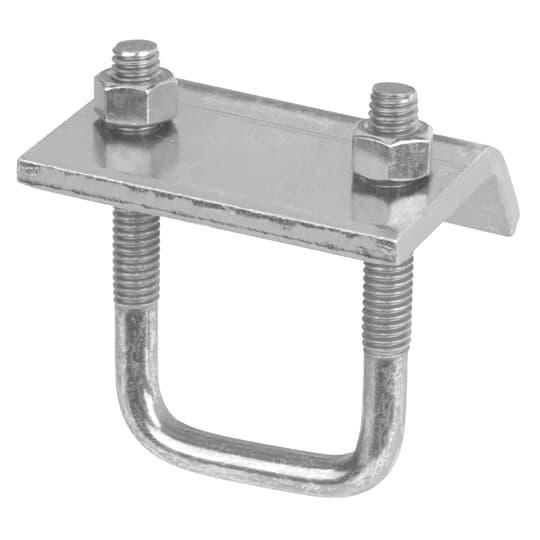

Superstrut® Beam Clamp, Series: 500, 13/16 in Flange Thickness, 2150 lb, Right Angle Under Flange Channel Position, For Use With: A1200, A1400, B1200, B1400, B1402 and C1200 Series Channel, Steel, Electro-Galvanized/SilverGalv®, 2-3/8 in L x 3 in W x 3-3/16 in H
| Channel Position | : | Right Angle Under Flange |
| Dimensions | : | 2-3/8 in L x 3 in W |
| Finish | : | Electro-Galvanized/Silver Galvanized |
| Series | : | 500 |
| Suitable For Use With | : | A1200, A1400, B1200, B1400, C1200 and B1402 Series Channels |
| Flange Thickness | : | 13/16 in |
| Load Capacity | : | 2150 lb |
| Material | : | Steel |
- Where design loads are indicated, they provide for a safety factor of 3 in conformance with the American standard code for pressure piping
- Beam clamps for mounting channel
Specification Sheet
