EATON E34VFBK1

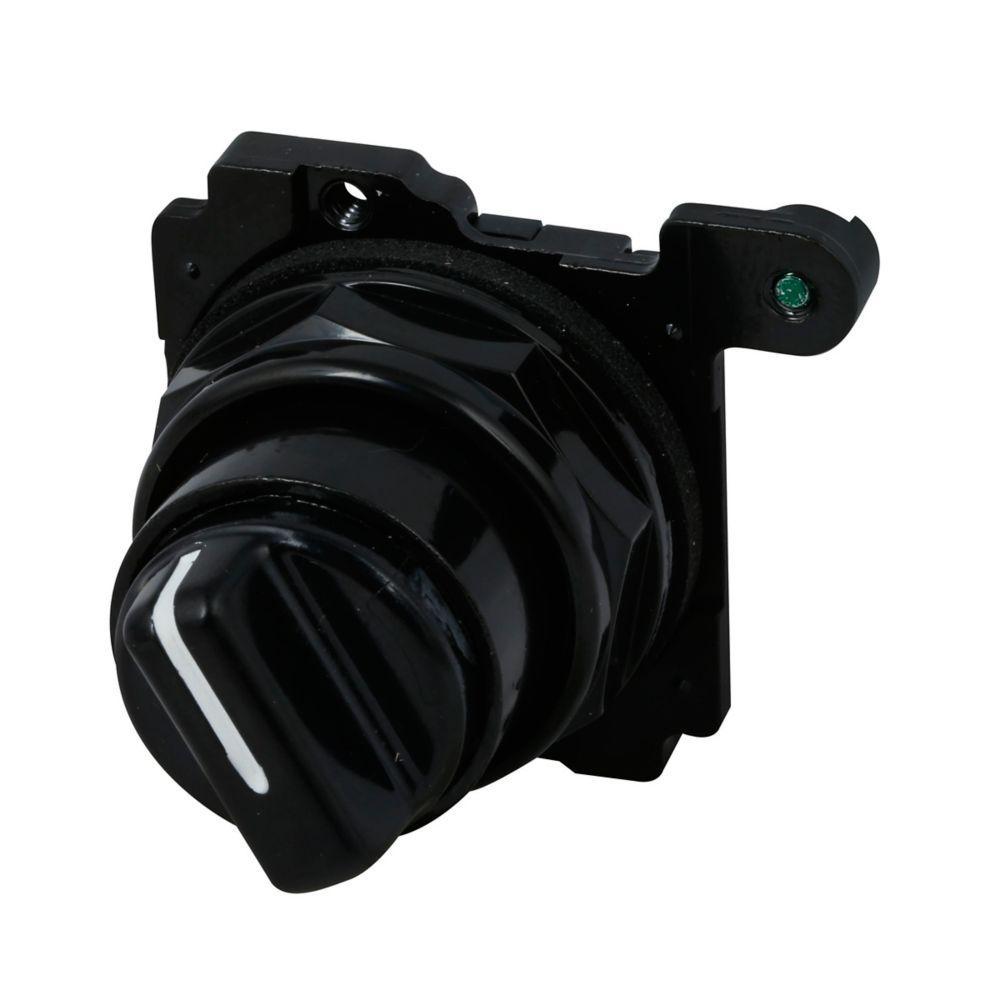

EATON E34VFBK1 Corrosion-Resistant Oiltight/Watertight Non-Illuminated Selector Switch Operator, 30.5 mm, Knob Operator, 2 Positions, Black
- Manufacturer Name: Eaton
- MPN: E34VFBK1
- Brand Name: EATON
- UPC: 782113722740
- FEPN: E34VFBK1 EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
EATON E34 series 30.5 mm pushbutton line features the same rugged die cast construction of our 10250T line with an additional 2-layer 100% solid thermosetting cathodic epoxy coating. This coating provides a flat black smooth, consistent, corrosion-resistant surface that has passed a demanding 600 hr salt spray test. (the industry standard for this 4X test requires only 200 hr).
EATON Selector Switch Operator, Corrosion-Resistant Oiltight/Watertight Non-Illuminated, Series: E34, 30.5 mm Size, Maintained Contact Mode, Knob Operator, 2 Positions, 60 deg Left/Right Throw, Cam Code: 1, NEMA 3/4/12/13/3R/4X/IP65 Enclosure, Screw Terminal, Surface Mounting, Bezel/Housing: Die Cast Zinc, Epoxy Coated, Black
| Bezel/Housing | : | Die Cast Zinc |
| Cam Code | : | 1 |
| Contact Mode | : | Maintained |
| Enclosure Type | : | NEMA 3/4/12/13/3R/4X/IP65 |
| Finish | : | Epoxy Coated |
| Mounting Type | : | Surface |
| Series | : | E34 |
| Terminal Type | : | Screw |
| Throw | : | 60 deg Left/Right |
| Type | : | Corrosion-Resistant Oiltight/Watertight Non-Illuminated |
| Size | : | 30.5 mm |
| Operator Type | : | Knob |
| Number of Positions | : | 2 |
| Color | : | Black |
- Epoxy coated metal operators
- Integral ground terminal screw-on operators
- FDA approved for sanitary chemical resistance requirements
