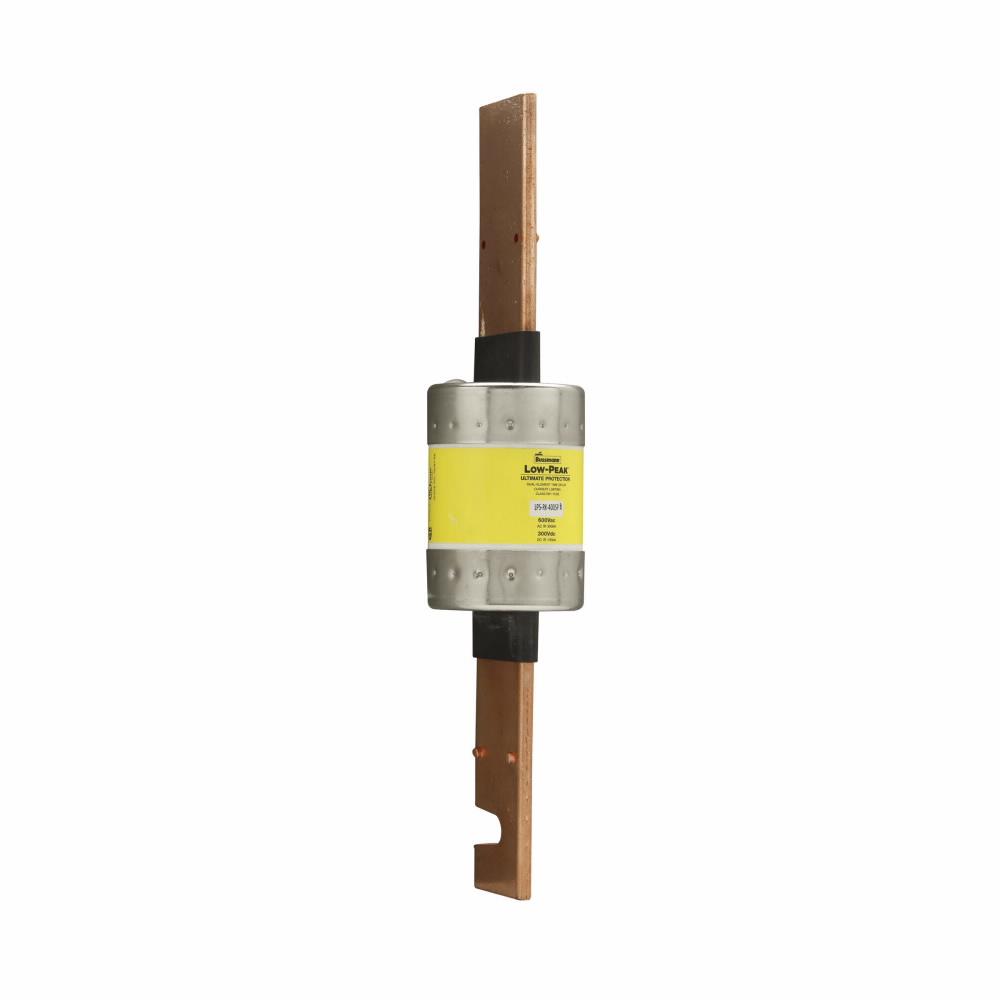

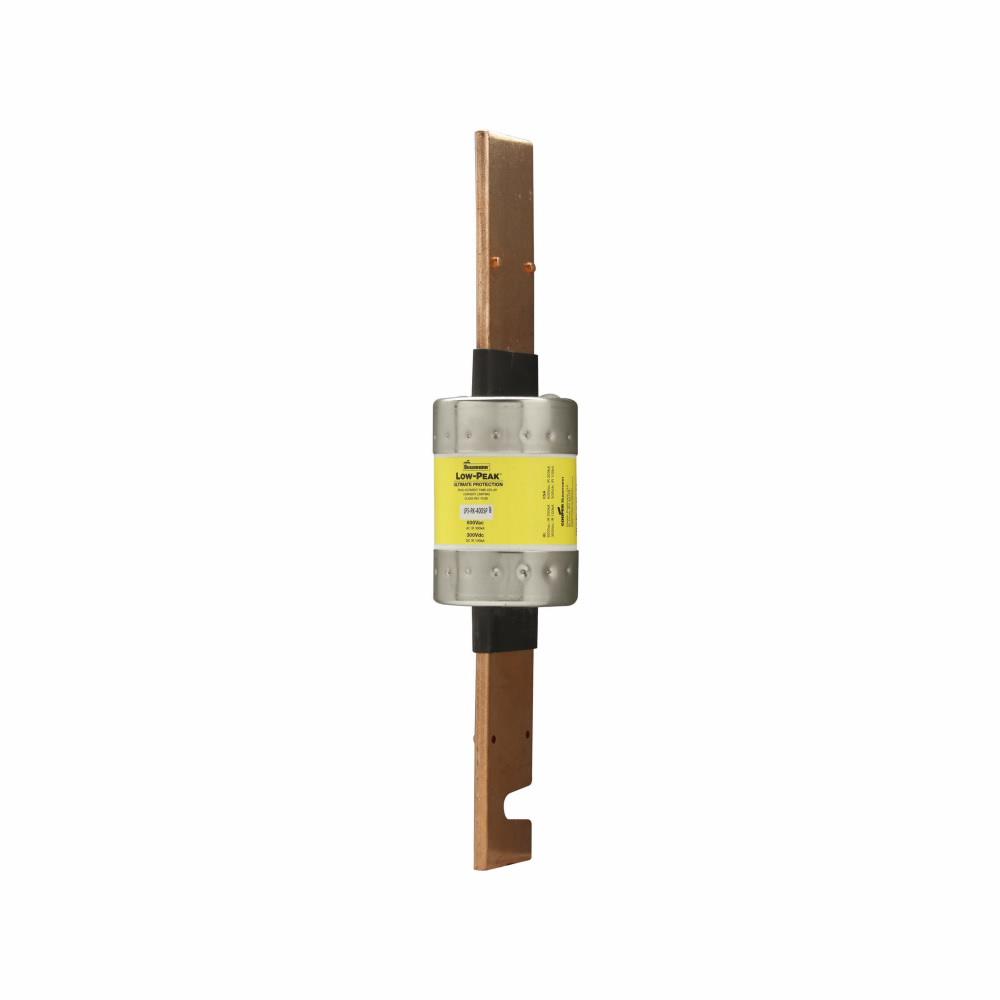

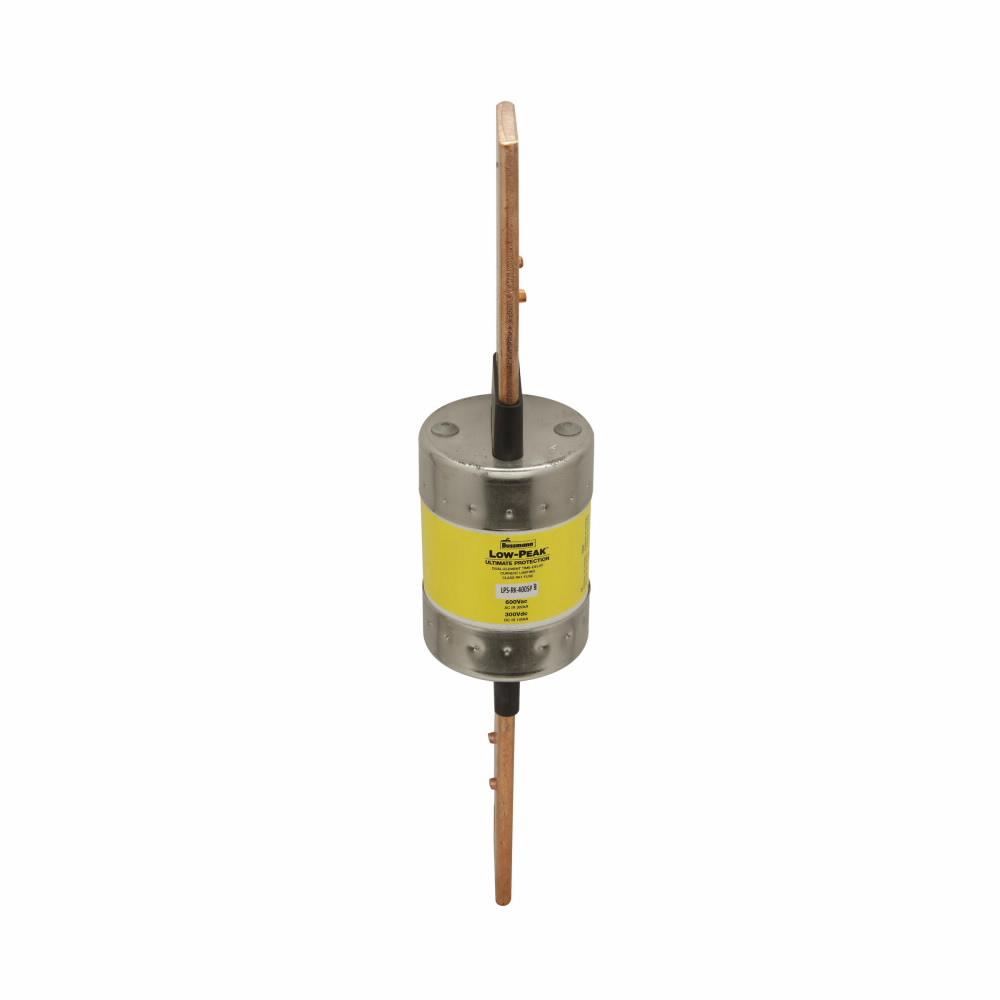

Bussmann LPS-RK-225SP
Bussmann Low-Peak™ LPS-RK-225SP Current Limiting Time Delay Fuse, 225 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, RK1 Class, Cartridge Body
- Manufacturer Name: Eaton
- MPN: LPS-RK-225SP
- Brand Name: Bussmann
- UPC: 051712548519
- FEPN: LPS-RK-225SP BU
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Ultimate protection Class RK1 current-limiting, dual element, time-delay fuses available with optional open fuse indication.
Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 225 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 2.36 in Dia x 11.63 in L Body Size
| Body Size | : | 2.36 in Dia x 11.63 in L |
| Element | : | Dual |
| Indicating/Non-Indicating | : | Non-Indicating |
| Material | : | Melamine |
| Mounting Type | : | Holder |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | 10 s at 500% |
| Series | : | LPS-RK |
| Terminal Type | : | Blade End |
| Type | : | Current Limiting Time Delay |
| Amperage Rating | : | 225 A |
| Voltage Rating | : | 600 VAC/300 VDC |
| Interrupt Rating | : | 300/100 kAIC |
| Class | : | RK1 |
| Body Type | : | Cartridge |
- Current limitation for maximum short circuit protection and reduced arc flash hazard
- Easy selective coordination with all Low-Peak™ fuses using simple 2:1 ampacity ratio
- No damage type 2 protection for IEC and NEMA starters when properly sized
- High inrush current motor protection
- Time delay permits 130% FLA sizing for back-up motor overload protection and 1 ph protection
- Low wattage loss power consumption
- Electrically isolated end caps for additional safety
- VAC interrupt rating that exceeds requirements for virtually all applications
