Wiring Device-Kellems HBL2511SW

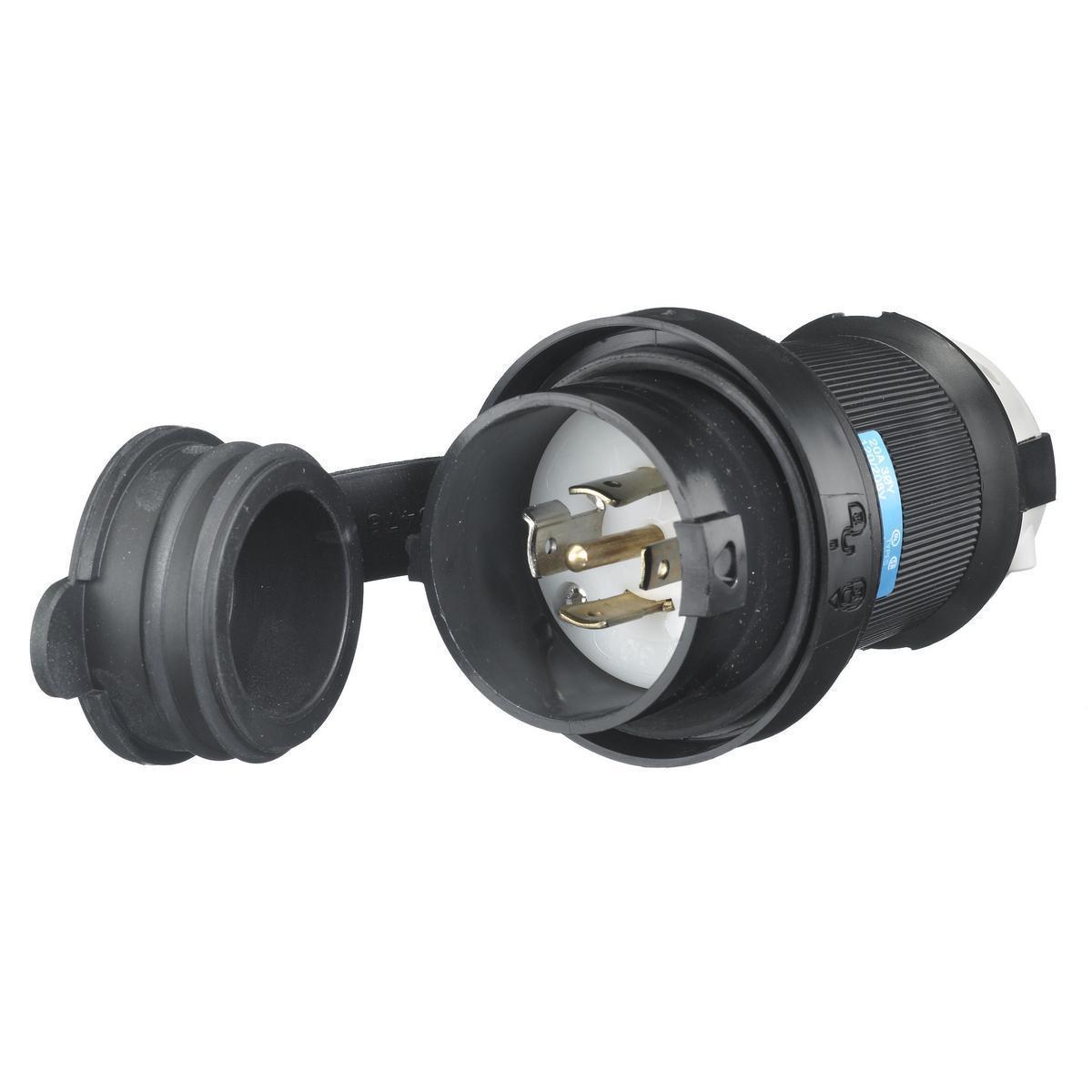

Wiring Device-Kellems HBL2511SW HBL® 3-Phase Grounding Watertight Cord Mount Locking Plug, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2511SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231525
- FEPN: HBL2511SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2511SW, Locking Plug, 3-Phase Grounding Watertight Cord Mount, Series: HBL®, 120/208 VAC, 20 A, 2 hp, 4 Pole, 5 Wires, L21-20P NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.94 x 2.94 x 4.40 in Dimensions
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 2.94 x 2.94 x 4.40 in |
| Enclosure | : | NEMA 4/4X/12/IP66 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Composite |
| NEMA Rating | : | L21-20P |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Grounding Watertight Cord Mount |
| Voltage Rating | : | 120/208 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 4 |
| Number of Wires | : | 5 |
| Color | : | Black/White |
- Impact modified PBT cord clamp
- Reduces exposure to arcing when connecting or disconnecting under load
- Impact resistant shroud protects blades against bending and breaking
- Superior cord grip design protects terminations from excess strain
- Natural white nylon blade holder
- Clear polycarbonate terminal retainer
- Brass blade, terminal clamp, terminal screw, ground screw
- Steel, zinc plated cord clamp screw, body holding screw
- Withstands 2000 VAC minimum dielectric voltage
- 16 to 8 AWG stranded copper wire terminal accommodation
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent temperature rise
