Wiring Device-Kellems 02201015

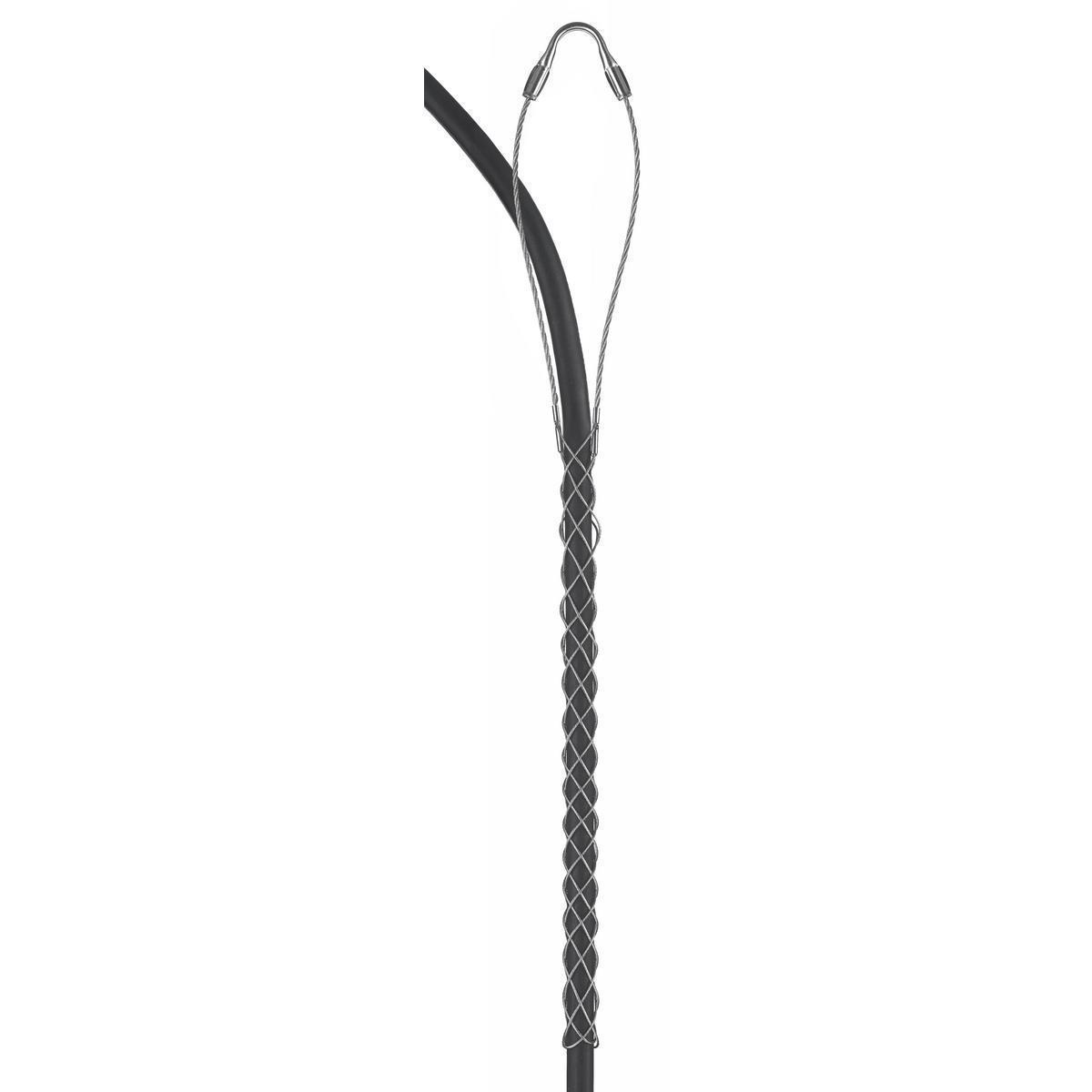

Wiring Device-Kellems 02201015 Standard Duty Closed Mesh Single Eye Single Weave Support Grip, 1020 lb Breaking Strength, 0.75 to 0.99 in Cable, Bronze, TiN Coated
- Manufacturer Name: Hubbell
- MPN: 02201015
- Brand Name: Wiring Device-Kellems
- UPC: 783585301006
- FEPN: 02201015 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:

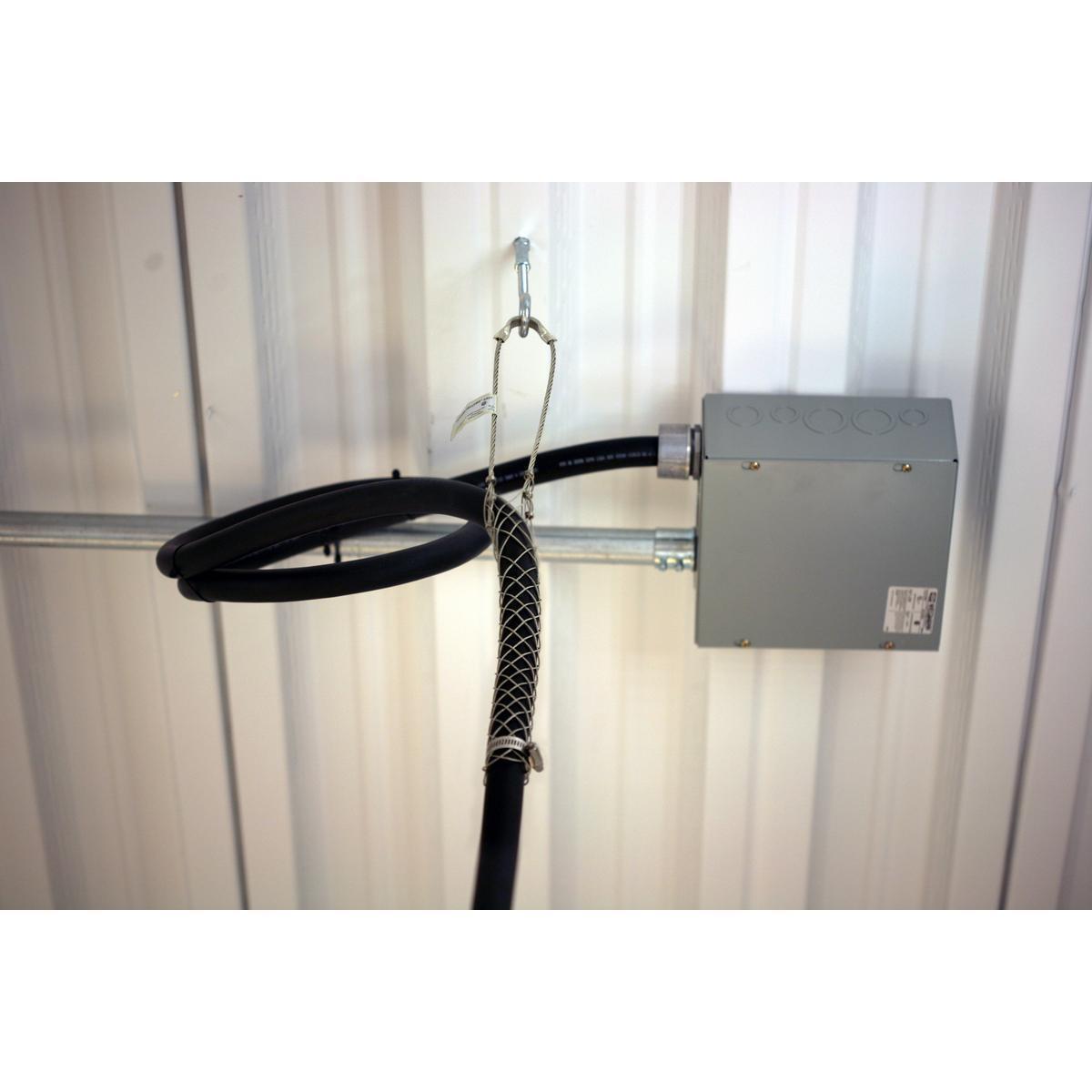

Kellems Support Grips are used to hold the weight of electrical cable as it hangs in a vertical, sloping or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections.
Wiring Device-Kellems Support Grip, Standard Duty Closed Mesh Single Eye Single Weave, 1020 lb Breaking Strength, 0.75 to 0.99 in Cable, 8 in Mesh Length, Bronze, TiN Coated, 21 in L Dimensions
| Dimensions | : | 21 in L |
| Mesh Length | : | 8 in |
| Type | : | Standard Duty Closed Mesh Single Eye Single Weave |
| Breaking Strength | : | 1020 lb |
| Cable Size | : | 0.75 to 0.99 in |
| Material | : | Bronze |
| Finish | : | TiN Coated |
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
Line Drawing
VIDEO LINK
