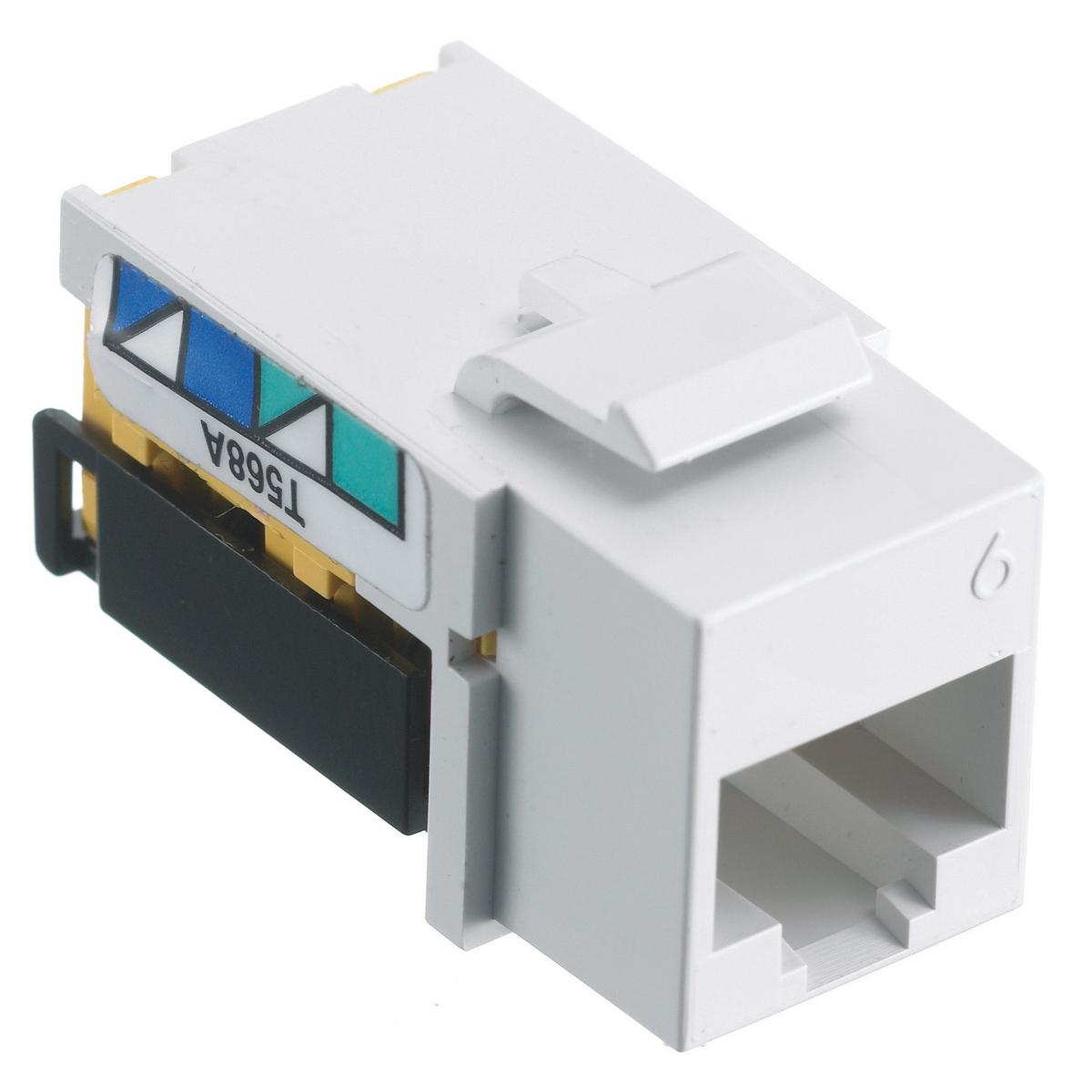

On-Q® Keystone Connector, Vertical Orientation, Series: WP Series, Cat 6 Module, Surface Mounting, 1 Port, Plastic, White, 0.63 x 0.87 x 1.26 in
| Dimensions | : | 0.63 x 0.87 x 1.26 in |
| Series | : | WP Series |
| Type | : | Vertical Orientation |
| Module Type | : | Cat 6 |
| Mounting Type | : | Surface |
| Number of Ports | : | 1 |
| Material | : | Plastic |
| Color | : | White |
- High quality insert for use in multimedia wallplates
- Vertical design for easy punchdown termination
- Insertion and extraction life is 750 cycles min
- Jack housing is high impact, flame resistant plastic
- -40 to 158 deg F storage temperature, 93% maximum non-condensing humidity
- Creates an ethernet port
- Connects to CAT 5, CAT 5e or CAT 6 cables terminated with RJ-45 plugs
- 0.01 to 0.4 dB insertion loss
- Standard RCA front jack
- Connects to Cat5, Cat5e, or Cat6 cables terminated with RJ-45 plugs Rear retention caps ensure secure wire termination
- Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
